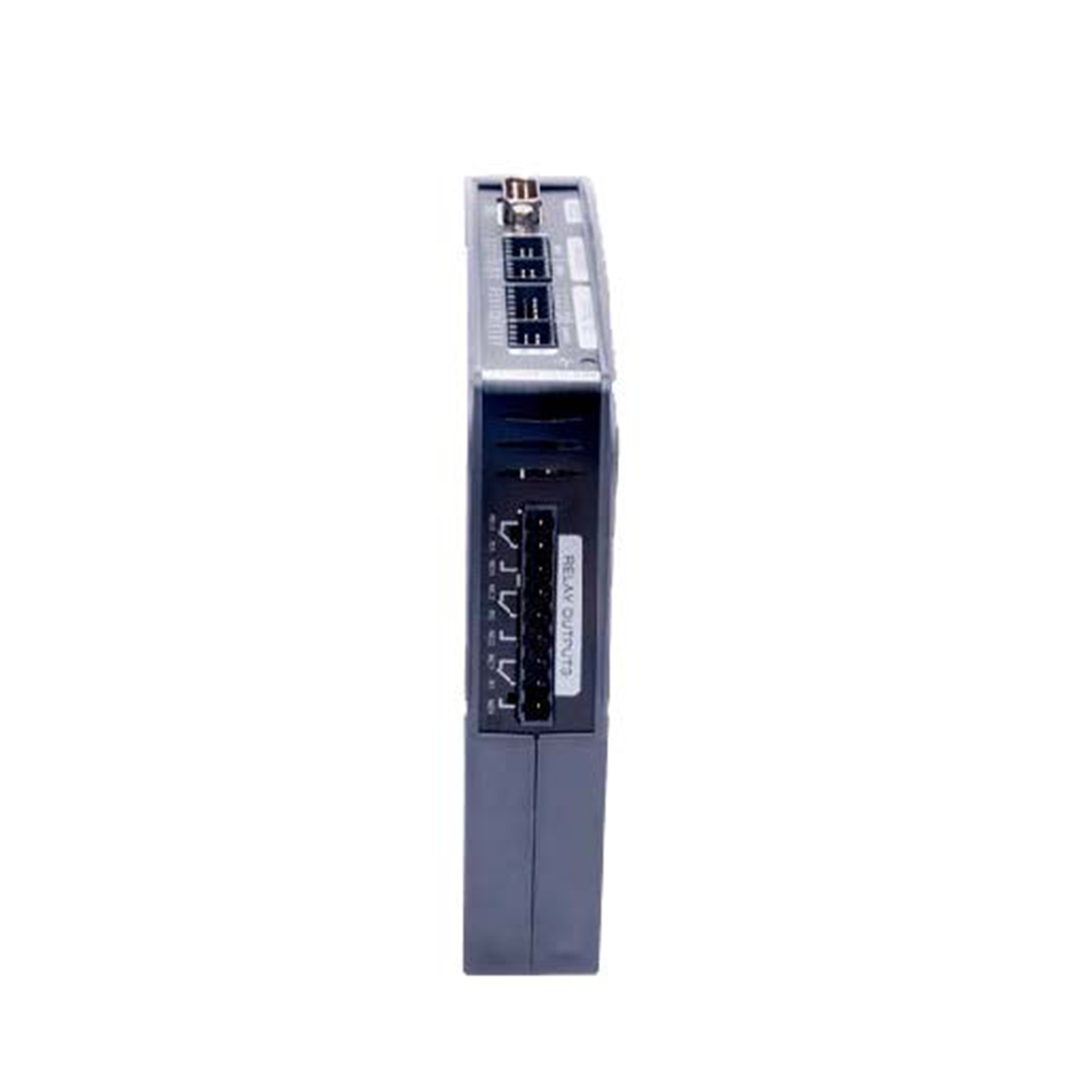

ELSPEC G4420 BLACKBOX Fixed Power Quality Analyzer KIT

ELSPEC G4420 BLACKBOX Fixed Power Quality Analyzer KIT

$10,990.00 AUD
$9,990.00 AUD $10,990.00 AUD
Sale Sold out
Shipping calculated at checkout.

In stock

The ELSPEC G4420 is a 3-phase power quality analyzer equipped with ELSPEC's PQZIP patented algorithm for continuous waveform recording at 512 samples/cycle. The ELSPEC G4420 is an advanced permanently installed power quality analyzer and digital fault recorder. The G4420 is Class A certified and enables you to predict, prevent and troubleshoot an incidence easily, without the need to set any trigger or threshold in order to capture a specific event.

Key Features of ELSPEC G4420

  • Class A Power Quality Analyzer with Digital Fault Recorder (DFR)
  • ELSPEC's PQZIP Continuous Waveform Algorithm
  • Voltage Sampling Rate of 512 samples/cycle (25,600 Hz)
  • Current Sampling Rate of 256 samples/cycle (12,800 Hz)
  • 4 Voltage Inputs & 5 Current Inputs
  • Multi-IO Module (Optional)
  • Voltage Harmonics up to 255th
  • 4GB of Internal Storage
  • 2 x Ethernet Ports
  • 1 x PoE - Out
  • 25 s Voltage Ride Through
Multi-IO Module
Multi-IO Module

We are unable to show availability for this product.

Delivery Method

Select a delivery date 1-2 days prior to your event date. It will be sent so it arrives to you on or before your selected date.

EXAMPLE: Select the date you would like to collect from our [Your Location] store.

EXAMPLE: Select a delivery date 1-2 days prior to your event date.

Loading...
Powered By

Standard postage will be added at checkout. Please ensure you select Post as your delivery method when you get to checkout, or your order may be cancelled.

EXAMPLE: Pickups are between 3pm and 5pm at [Your Address}.

EXAMPLE: Local deliveries are made to your address between 10am and 12pm on your selected delivery date.

Delivery Date Start Date ...

...

Return Date End Date ...

...

Rental Fee $10,990.00
Price $10,990.00
There was a problem adding the item to the cart.
View full details

Join Us at the ELSPEC User Group Meeting 2024 in Dallas, Texas

We are excited to announce that we will be attending and presenting at the ELSPEC User Group Meeting 2024. One of the main keynote speakers is Manoj Angus, the Founder & CEO of SmartGRID Technologies & Power Quality Solutions, and CTO of Supreme Technology & Energy Solutions Australia. We have been an ELSPEC distributor in Australia for over 15 years and are excited to share our insights and expertise on Elspec products and solutions with people from across the globe.

See the full program on ELSPEC's website here.

Learn More - Free Registration

Don't be left in the Dark, Capture Everything

Patented PQZIP Algorithm for Continuous Waveform Everything

  • Continuous waveform recording
  • Trigger free setup
  • 5,000 power parameters @ 1/2 cycle resolution
  • Easy deployment

Class A Power Quality Analyzer

Far surpassing the highest standards set by the industry, the BLACKBOX device series complies with standards for: aggregations, time clock uncertainty, flagging, and transient influence quantities.

Synchronized Monitoring

A unique time synchronization algorithm assures that logged data from multiple units is synchronized & displayed on the same time scale with typical 0.1 ms resolution. Every event on a grid is accurately analyzed for precise root cause analysis, behavior propagation, and traced to its source.

Superior Accuracy

Elspec’s pioneering measurement method utilizes a dual-range gain of 2 x 16 Bit to yield, a superior accuracy far surpassing IEC 61000-4-30 Class A requirements,thereby capturing the finest details & deviations in Power Quality parameters.

feature-item-1
Patented PQZIP Technology
Continuous Waveform Recording. 5,000 power parameters @ 1/2 cycle resolution
feature-item-2
Class A
Meets all Standards. Class A IEC 61000-4-30 Certified with 0.1% Accuracy.
feature-item-3
Superior Accuracy
Dual-Range Gain 16-bit ADC. Up to 1028 samples/cycle for Voltage and 256 samples/cycle for Current.
feature-item-4
Synchronized Monitoring
Multiple Unit Time Synchronization at 0.1 ms Resolution.

Applications

Utilities (Transmission, distribution, generation)

  • Optimizes protective equipment configuration and substation automation solutions
  • Ensures a reliable & consistent supply of energy
  • Evaluates the performance of breakers and relays
  • Identifies and manage peak demand
  • Real time power quality monitoring to meet any international standard
  • Produces detailed & comprehensive statistical records

Energy Consumer (Critical power, industrial, commercial, government etc.)

  • Measures & analyzes system efficiency, provides solutions and increases profits
  • Negotiating capabilities with power providers
  • Detect electric bill inconsistencies
  • Avoid PQ compliance issues
    Real time PQ monitoring and analysis

PQZIP Compression Technology, Unique to ELSPEC. Every Cycle, Captured.

Unique to ELSPEC, PATENTED.

PQZIP Compression Technology

The PQZIP Patent compression algorithm enables the meter to continuously store waveform signals over a long period of time, whether an event of interest was identified. This technology is
unique to Elspec and ensures precise and accurate
characterization of electrical system dynamics.

PQZIP Compression features:

  • Continuous waveform recording
  • Supreme Trend Resolution
  • Extended Harmonic Recording
  • Threshold free setup
  • Easy deployment

CHOOSE FIXED QUALITY OR FIXED RATIO RECORDING

Continuous Waveform Recordings - Up to 1 Year

The G4K Series (G4410, G4420, G4430) fixed power quality analyzer is able to record and store all electrical waveform continuously for more than a year depending on the settings, with no gaps in the data. It offers a clear and comprehensive picture of the conditions before, during, and after an event.

SUPREME TRENDS RESOLUTION

PQSCADA Sapphire Software Included

The G4K Series power quality analyzer measures and records 5,000 power parameters continuously at a resolution of ½ cycles, 10/12 cycles, 150/180 cycles, 10 min and 2 hours of which, any given resolution is calculated for display and reporting purposes. Hence, there is no need to select which parameters to log, and more importantly, which parameters to ignore.

More Details - PQSCADA Sapphire Software

Harmonics & Inter-harmonics

The G4K series power quality analyzer has two FFT engines for harmonics analysis:

  1. Cycle by Cycle: performs FFT at 1 cycle resolution for extended bandwidth. This engine provides up to 512 harmonics order at 50Hz resolution (G4430 Only).
  2. 10/12 Cycles: performs FFT 10/12 cycles resolution for extended resolution and sub-grouping calculation. This engine provides the magnitude and angle of 512 spectrum (G4430 Only) components at 5Hz resolution.

Please note harmonic analysis varies by G4K Model. Voltage Harmonics (Individual, Even, Odd, Total)

  • G4410 127th Harmonic
  • G4420 255th Harmonic
  • G4430 511th Harmonic

Comprehensive Event Mechanism

The G4k series power quality analyzers are designed to detect any event occurring on your system. The mechanism allows you to configure events on any measured parameter (more than 1,000) and/or I/O ports. The event mechanism supports out-of-limit events as well as rate of changed limits. The G4400 analyzer is capable of recording waveform signals continuously. The event configuration doesn’t trigger the recording but rather stores summary logs including start and end time, duration, severity and magnitude of the event. All events can be displayed in a tabular or scatter charts as CBEME/ITIC.

PQSCADA Sapphire - Import Data, Analyze, Investigate, and Report. Seamless Integration with APIs.

Create multi-site investigation with data from ELSPEC hardware or third-party devices, analyze with charts, and export standardized and customizable reports. Full API available for seamless integration including for MATLAB.

IEEE ACCESS - PQ Insights using ELSPEC PQSCADA SapphireCompare PQSCADA Editions
1 4

ELSPEC G4K SERIES

ELSPEC G4410

  • Voltage 256 Samples/Cycle
  • Current 256 Samples/Cycle
  • Internal Memory: 128 MB
  • 1 x Ethernet Port
  • No PoE - Out
  • 10 s Voltage Ride Through

ELSPEC G4420

  • Voltage 512 Samples/Cycle
  • Current 256 Samples/Cycle
  • Internal Memory: 4 GB
  • 2 x Ethernet Port
  • 1 x PoE - Out
  • 25 s Voltage Ride Through

ELSPEC G4430

  • Voltage 1024 Samples/Cycle
  • Current 256 Samples/Cycle
  • Internal Memory: 16 GB
  • 2 x Ethernet Port
  • 1 x PoE - Out
  • 25 s Voltage Ride Through

Optional Accessories

The Multi-IO Module, Remote External Display, and GPS are compatible with all models of the ELSPEC G4K series, including G4410, G4420, and G4430.

Extended Capabilities

Multi-IO Module

The Multi I/O Module extends the meter capability in order to replace RTUs and PLCs for energy management and substation automation. With the G4400 series you can monitor the reliability of system apparatus such as transformers, circuit breakers and other critical equipment.

The I/O module includes analog and digital I/O as well as a relay output.

  • 8 digital input at 16 samples per second.
  • 4 fast digital output at 16 sample/second
  • 4 analog 4-20mA inputs sampled at 1 Hz with programmable scaling
  • 4 analog 4-20mA outputs
  • 3 x Change Over Relay
  • UART- RS232 for interfacing with GPS enhanced synchronization - IRIG-1PPs

Choose up to 2 Multi-IO Modules for your G4410, G4420, or G4430.

Shop Multi-I/O Module

ELSPEC G4100

Remote Display Panel

  • 5-inch External Display
  • Monitor and Control, Single or Multiple G4K (G4410, G4420, G4430) meters connected to the network remotely.
  • The display can be powered by external power supply or through the G4K series embedded PoE port.
Shop G4100 Remote Display

GPS Time-Sync

The GPS provides an optimal mobile time synchronization solution for accurate time data via satellite signal. In absence of any other available technologies, it synchronizes the time at any remote location.

Shop GPS Module
