GlobeCore TOR-4 Online Transformer Monitoring and Dry-Out System

GlobeCore TOR-4 Online Transformer Monitoring and Dry-Out System

Model
The GlobeCore TOR-4 transformer oil drying unit is designed to remove water from the transformer, keeping it dry independently of the temperature and the state of water in the oil.
View full details

Advantages of TOR-4

  • Low Relative Cost

    The cost of TOR-4 system is significantly lower compared to the expenses associated with purchasing new transformers or the financial losses due to emergency failures, making it a cost-effective investment.

  • Automatic Constant Operation

    TOR-4 dries the oil without heating and does not require constant operator control

  • Versatility & Suitable for All Transformers

    Suitable for new, aged, and multipurpose oil-filled transformers, any make, any model.

  • Long Service Life, Easy Installation, and Compact Design

    Effective protection against damage and weather with IP54 rating, and all encompassing compact enclosure. Quick connection process post-preparation, taking just a few minutes.

1 4

Key Features of TOR-4

GlobeCore technology assesses transformer status through sensor-based measurements.

  • connection to a transformer of any type and age;
  • the process of connection takes less than an hour
  • the sorbent captures water regardless of its temperature and form
  • the machine dries the oil without heating and does not require constant operator control
  • the machine can be installed temporarily or permanently;
    a robust housing that reliably protects the system
  • once saturated with water, the sorbent can be reactivated using the BRPS (BRZ) unit and reused for oil drying (Sold Separately).

Hardware Overview

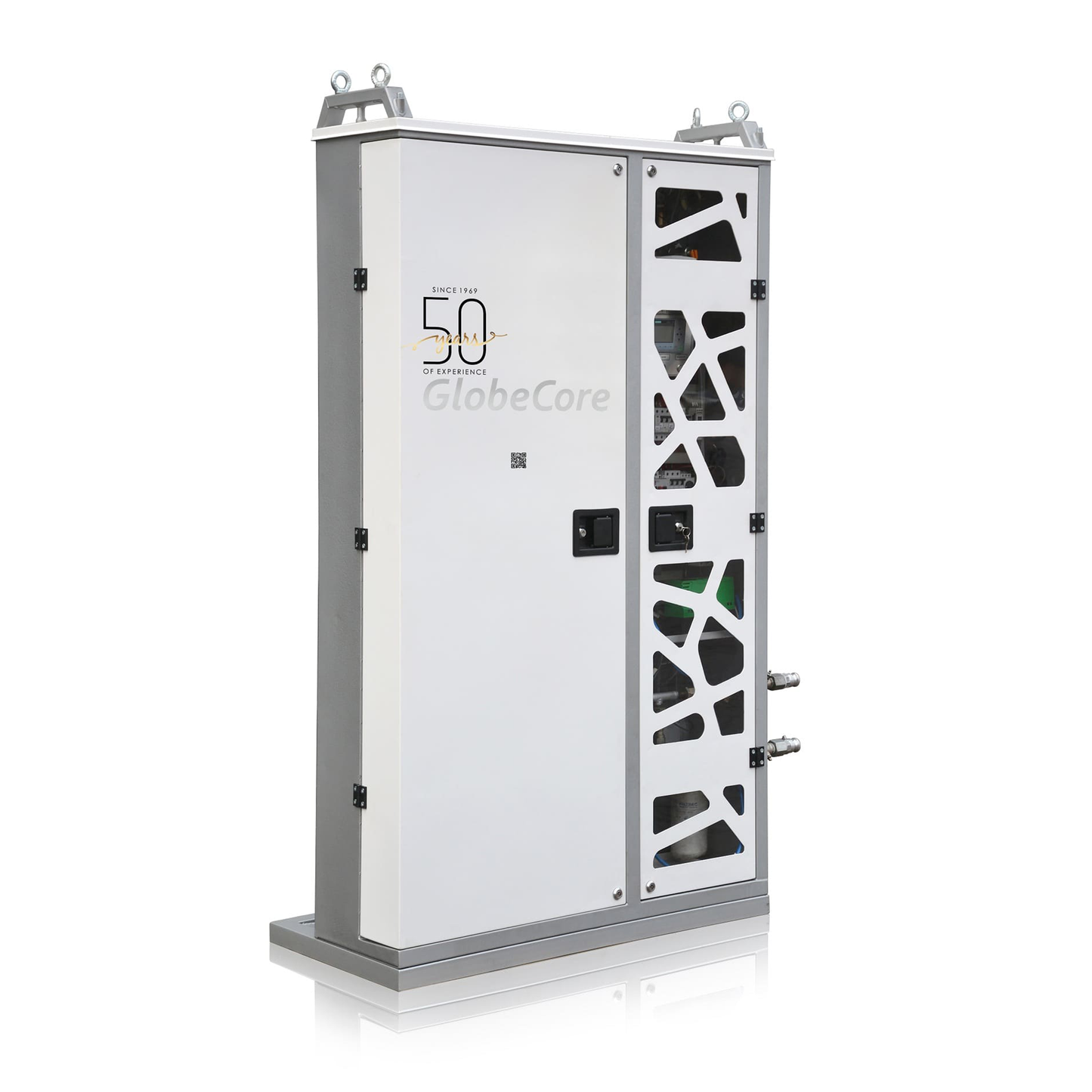

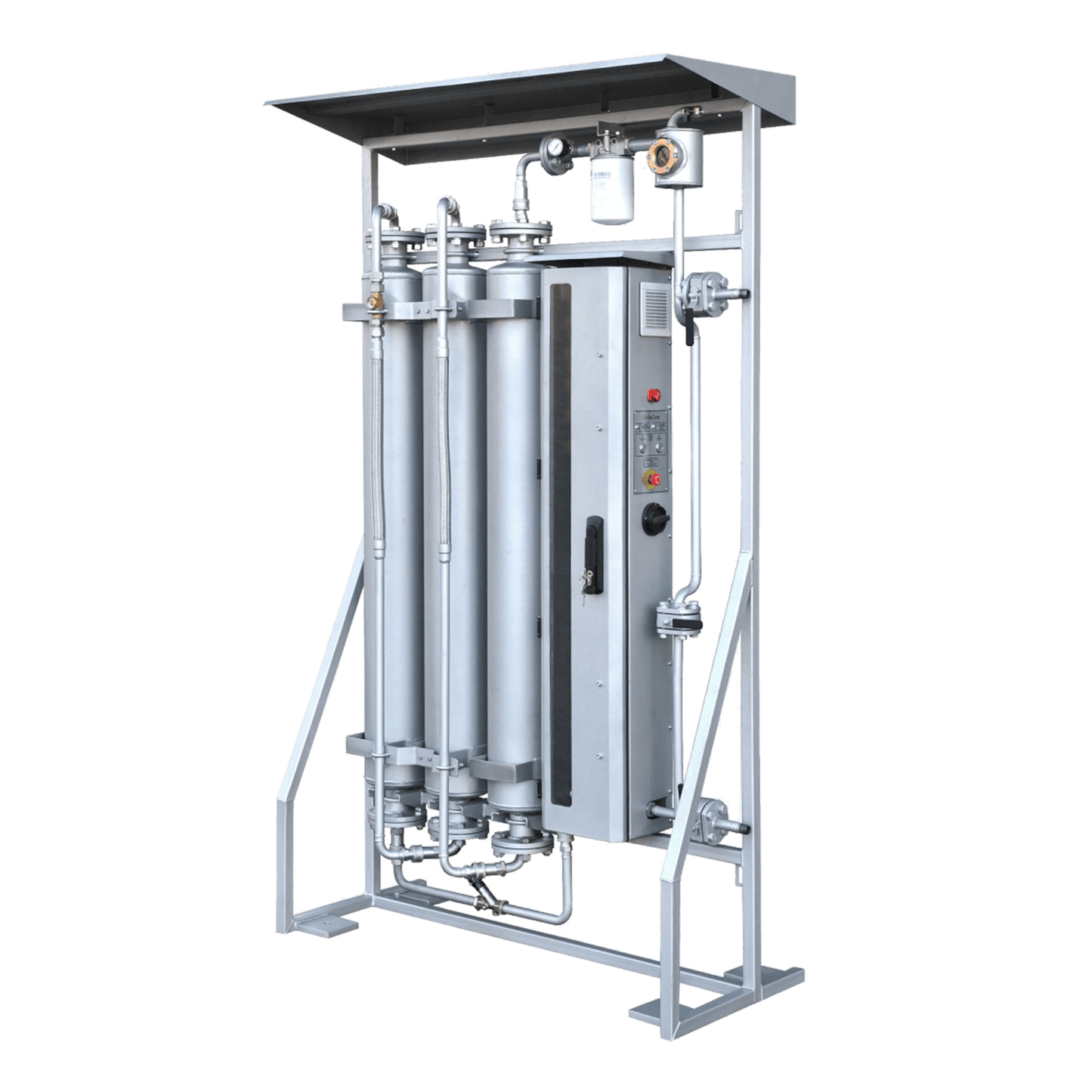

All in one enclosure, Small Footprint, IP54, Easy Lockable Access. Placed next to the transformer and bolted to the foundation. Also available without Enclosure.

TOR-4

Principle of Operation

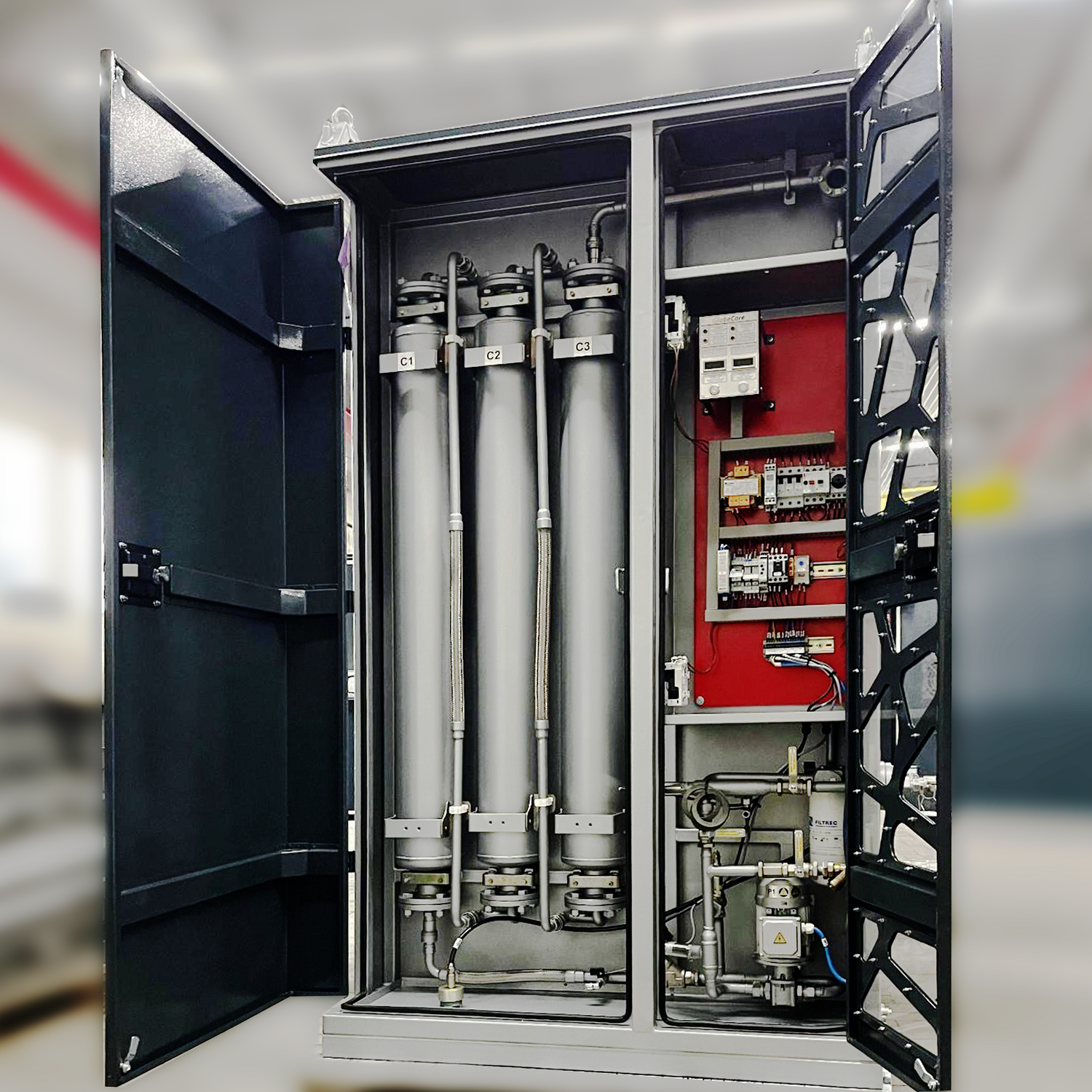

  • Equipped with zeolite sorbent adsorbers to absorb water molecules from treated liquid.
  • Adsorbers can be dismantled and replaced or sorbent reactivated with BRPS (BRZ) zeolite regeneration unit.
  • Connects to transformer via rigid or flexible pipework.
  • Utilizes a pump to circulate oil through filter and adsorbers for moisture removal, then back to transformer.
  • Monitored by a logic controller displaying oil moisture content before/after drying, filter pressure, and injection pump operation.
  • Transformer leakage protection via monitored oil level; controller maintains required level.
  • Automatic valves cut off oil flow in case of leakage, stopping the TOR-4 system.

Oil Drying and Filtration Mode

The TOR-4 system filters and dries transformer oil using a sequential process involving a filter and adsorbers, ensuring the transformer remains dry and functional without the need for heating or staff presence.

  • Oil is drawn from the transformer's bottom.
  • It passes through a filter with a 10-micron fineness.
  • It then goes through three adsorbers, each containing 15 kg of aluminosilicate sorbent.
  • The filter removes mechanical impurities; the sorbent absorbs and retains water.
  • Processed oil is returned to the transformer's top, maintaining functionality without heating, at a rate of 30 liters per hour.
  • The TOR-4 unit switches to monitoring mode once oil parameters normalize.
  • The system also helps remove water from the paper insulation, keeping the transformer dry throughout its service life.

Ambient Conditions of Operation

  • Ambient temperature: (+5 to +40) °C.
  • Atmospheric pressure: 84 to 106.7 kPa (630 to 800 mm Hg).
  • Elevation above sea level: Up to 2000 m.
  • Location: In open air under a canopy.
  • Usage environment: Clean Area with ventilation.

Easy Installation within Minutes

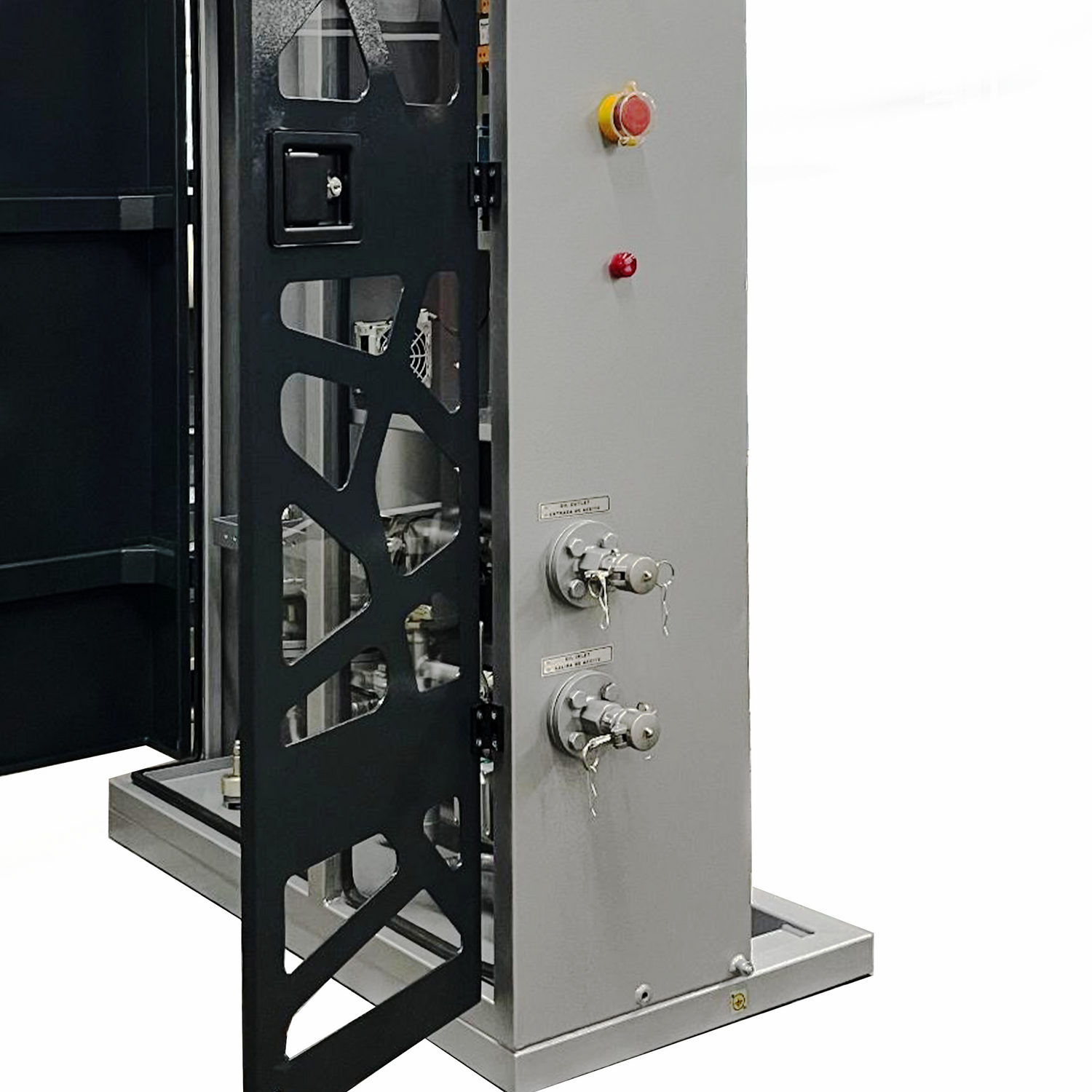

The TOR-5 is connected with hoses or pipes. This connection can be done by one person, using quick-coupling connections. The operations takes only a few minutes.

Configure your TOR-4 System

  • Voltage Level & Frequency

    • 220V, 380V, 400V, 415V, 480V, 600V
    • 50 Hz or 60 Hz

  • Sealing Material

    • Oil and Petrol Resistant Rubber
    • Viton

  • Power Cable

    • Not Required
    • Power Cable Needed

  • Method of cable connection to the unit

    • Not Required
    • Male/Female Connectors Kit

  • Method of the cable connection to the power source

    • Not Required
    • Crimp Terminals
    • Male/Female Connectors Kit

  • Inlet Hose

    • 10-meter Stainless Steel Hose
    • 15-meter Stainless Steel Hose
    • 20-meter Stainless Steel Hose

  • Outlet Hose

    • 10-meter Stainless Steel Hose
    • 15-meter Stainless Steel Hose
    • 20-meter Stainless Steel Hose

  • Zeolite (1000 kg)

1 8
