ELSPEC Multi-IO Module for G4410, G4420, G4430 Fixed Power Quality Analyzers

The ELSPEC Multi I/O Module extends the G4410, G4420, and G4430 meter capability in order to replace RTUs and PLCs for energy management and substation automation. Monitor the reliability of system apparatus such as transformers, circuit breakers and other critical equipment.

The ELSPEC IO module includes analog and digital I/O as well as a relay output.

8 digital input at 16 samples per second.
4 fast digital output at 16 sample/second
4 analog 4-20mA inputs sampled at 1 Hz with programmable scaling
4 analog 4-20mA outputs
3 x Change Over Relay
UART- RS232 for interfacing with GPS enhanced synchronization - IRIG-1PPs

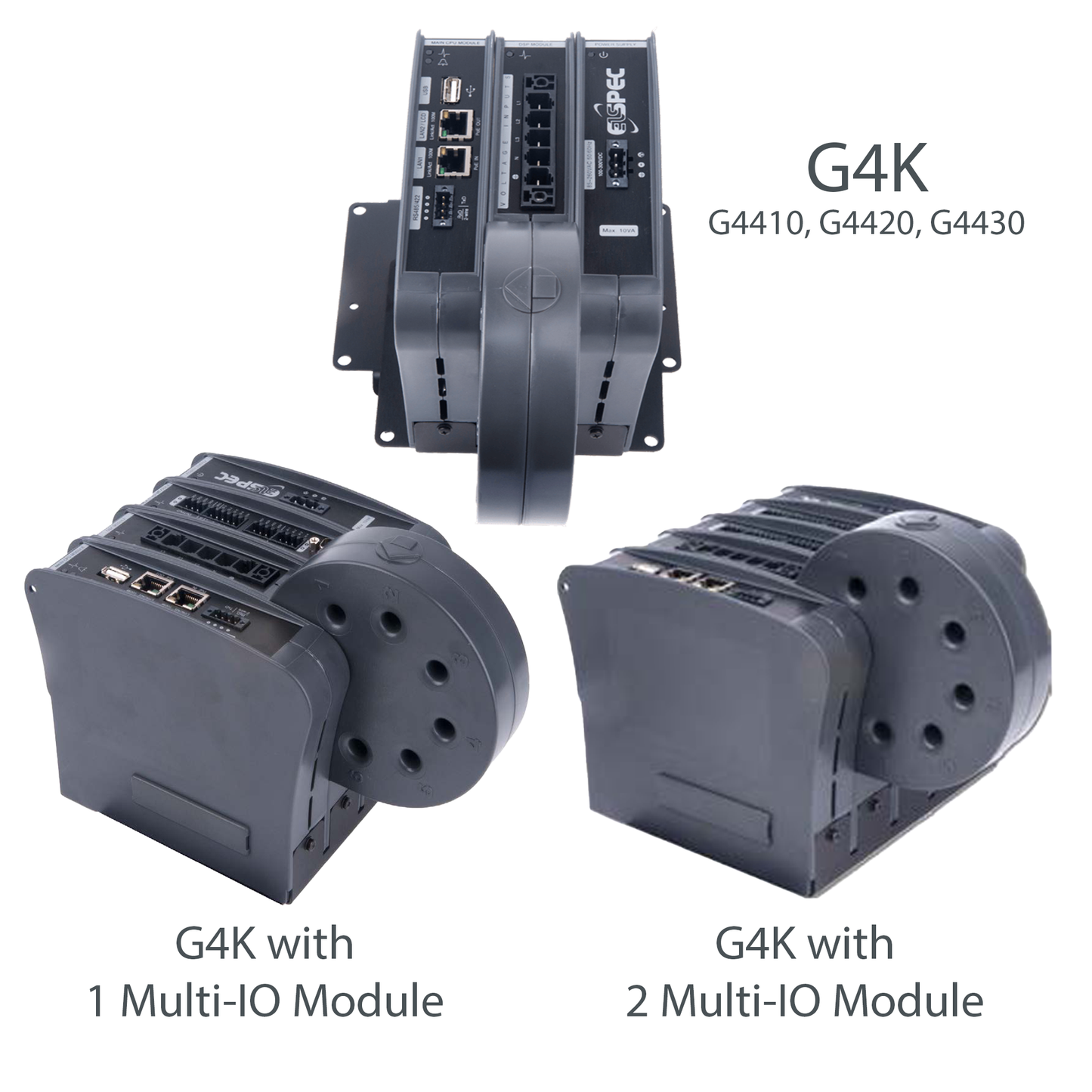

Choose up to 2 Multi-IO Modules for your G4410, G4420, or G4430.
