AEMO Very Fast FCAS Instruments for Compliance Metering and Reporting
These measurement instruments are compliant with AEMO Very Fast FCAS Applications for Compliance Metering, Monitoring and Reporting. This includes the NEO Messtechnik PQA 8000 Series & PQM 200 Series, Multi-functional Recorders with Power Quality Analyzer, Digital Fault Recorder (DFR), and Phasor Measurement Unit (PMU).
NEO Messtechnik instruments meet AEMO specifications for Frequency Control Ancillary Services (FCAS) and Market Ancillary Service Specification (MASS) as per Section 5.3 of the specification document.
- Sampling rate of Local Frequency Measurements ≤50 ms
- Sampling rate of Generation Amount and Load Amount Measurements ≤50 ms
- Measurement Range of Power Flow Measurements ≤50 ms
- Local Frequency Measurement Range with Frequency Intrinsic Uncertainty of <0.01 Hz and Frequency Resolution of <0.0025 Hz
- Recording Period for Power & System Frequency Measurements ≥5 s before FDT and ≥60 s after it. This setting is adjustable by user as required.
It is also possible to generate automatic reports and customizable templates according to the AEMO reporting requirements, as per Section 5.5 of the MASS document.
Very Fast FCAS Compliant Metering Instruments
Multi-functional recorders from NEO Messtechnik have Power Quality Analyzer, Digital Fault Recorder (DFR), and Phasor Measurement Unit (PMU) functionality.
- Meets all requirements for AEMO Very Fast FCAS.
- Class A++ Exceeds all standards, with 1 MHz Sampling Rate, equivalent to 20,000 samples/cycle at 50 Hz for both Voltage and Current Channels.
- PMU with Total Vector Error (TVE) of 0.01% which is 100 times better than the IEC/IEEE Standards
- Industry Leading Accuracy of 0.05 % for Voltage & Current with Angle Error of just 0.003 °
-
NEO Messtechnik PQA 8000H Mobile Power Quality Analyzer
Regular price $32,300.00 AUDRegular priceUnit price per -
NEO Messtechnik PQA 8000H-P Mobile Power Quality Analyzer
Regular price $35,000.00 AUDRegular priceUnit price per -

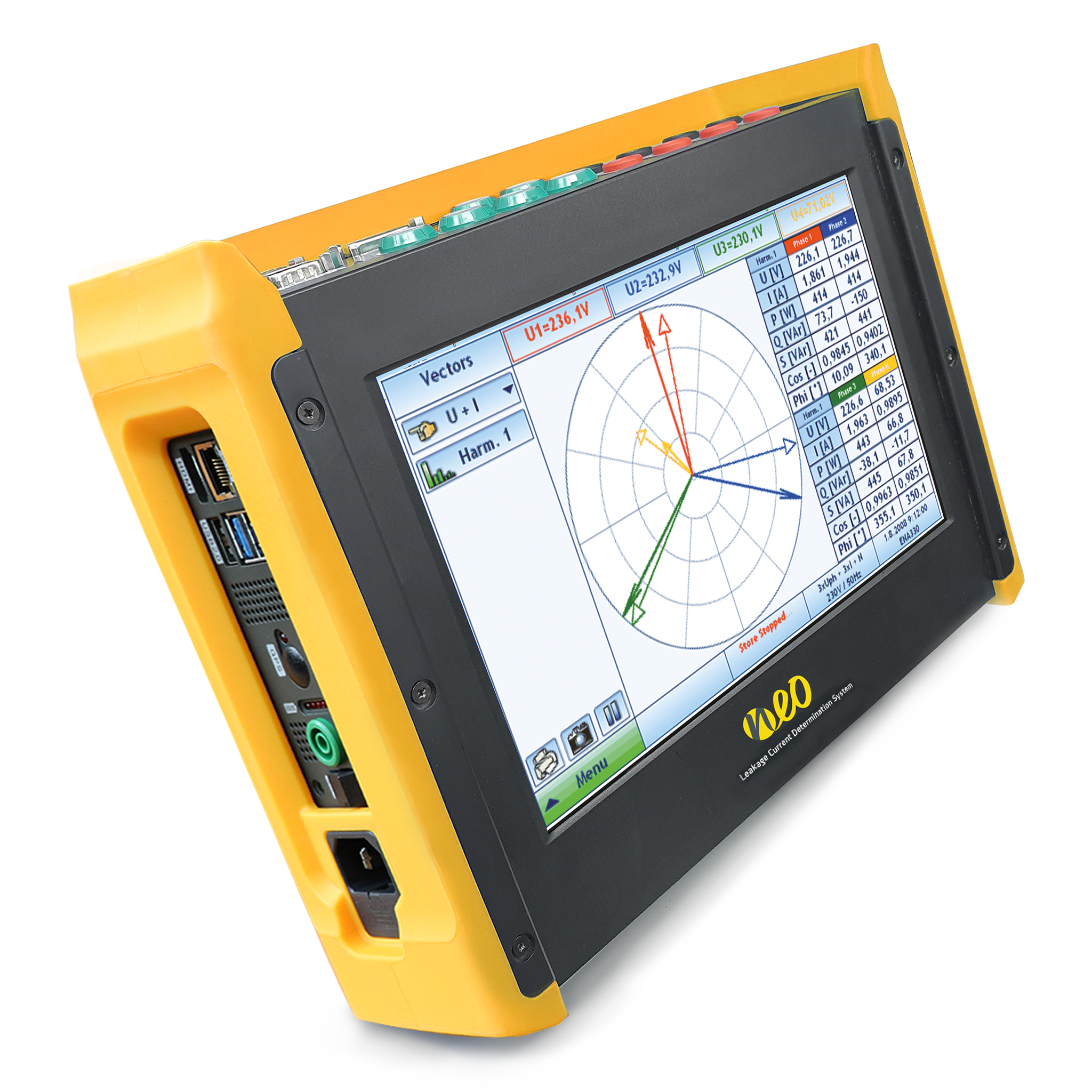

NEO Messtechnik PQA 8000H-M Mobile Power Quality Analyzer
Regular price $36,000.00 AUDRegular priceUnit price per -

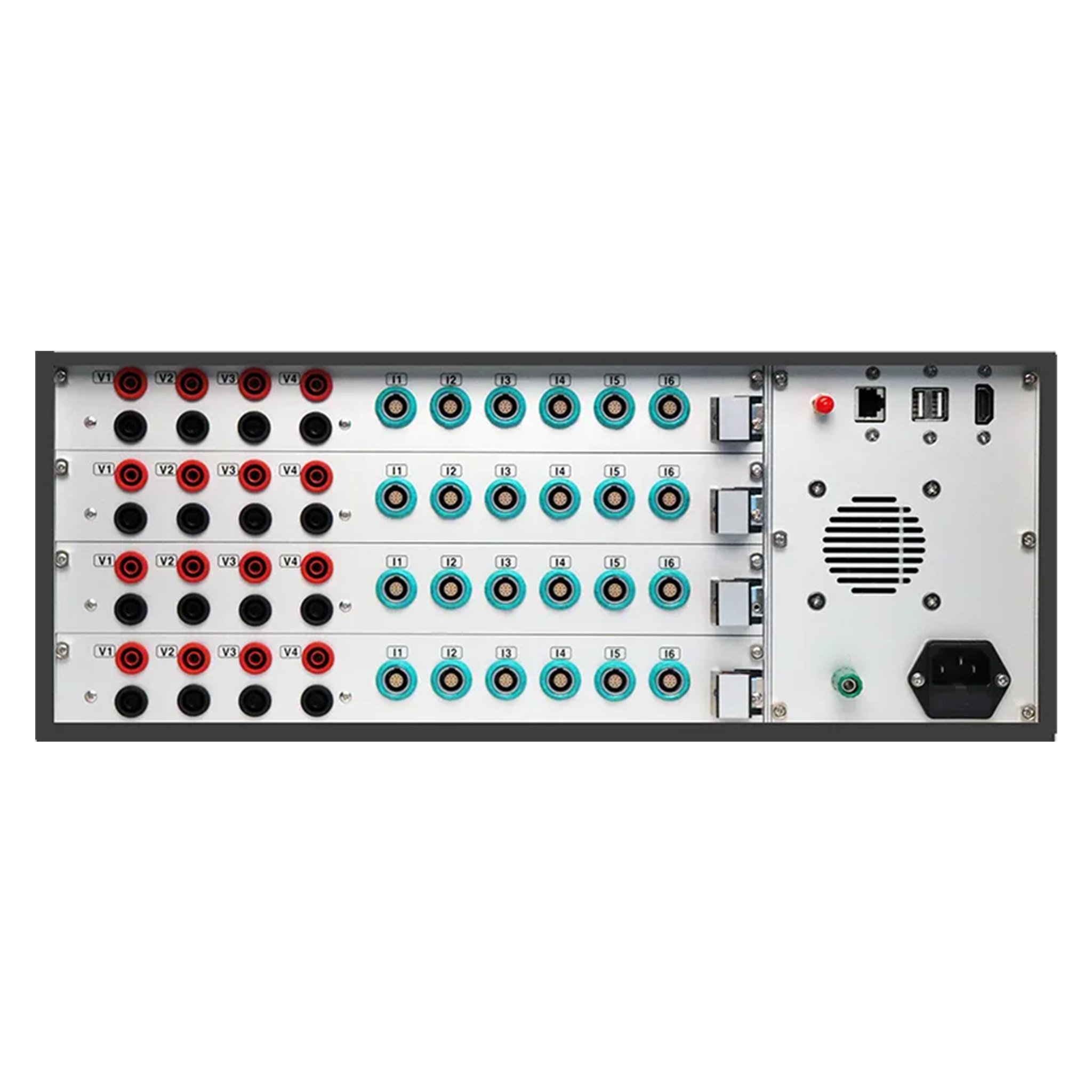

NEO Messtechnik PQM-200 Modular Power Quality Analyzer, DFR, PMU, and Energy Meter
Regular price From $20,000.00 AUDRegular priceUnit price per
Compare Product Specifications & Downloads
CLICK "SHOW DIFFERENCES" TO HIGHLIGHT DISTINCTIONS BETWEEN PRODUCTS
 |  |  |  NEO MESSTECHNIKNEO Messtechnik PQM-200 Modular Power Quality Analyzer, DFR, PMU, and Energy MeterFrom $20,000.00 View details | |
|---|---|---|---|---|
| General | ||||
SKU |
PQA8000H
|
PQA8000H-M
|
PQA8000H-P
|
PQM-200-i5
|
Brand |
NEO MESSTECHNIK
|
NEO MESSTECHNIK
|
NEO MESSTECHNIK
|
NEO MESSTECHNIK
|
Processor |
Intel® Quad Core Processor and 8GB RAM
|
Intel® Quad Core Processor and 8GB RAM
|
Intel® Quad Core Processor and 8GB RAM
|
Intel® Core i5 Processor and 8GB RAM (Upgradeable) and Intel® Core i7 Processor and 8GB RAM (Upgradeable)
|
Operating System |
Microsoft® Windows® 10 64-bit (IOT)
|
Microsoft® Windows® 10 64-bit (IOT)
|
Microsoft® Windows® 10 64-bit (IOT)
|
Microsoft® Windows® 10 64-bit (IOT)
|
| Special Applications | ||||
EV Charging Stations |
|
|
|
|
AEMO FCAS Frequency Control Ancillary Services (FCAS)
|
|
|
|
|
AEMO GPS & R2 Compliance |
|
|
|
|
Supraharmonics 150 kHz |
|
|
|
|
Supraharmonics 500 kHz |
|
|
|
|
Applications |
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, Supraharmonics, Grid Impedance, and Revenue Grade Energy Meter
|
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, Supraharmonics, Grid Impedance, and Revenue Grade Energy Meter
|
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, Supraharmonics, Grid Impedance, and Revenue Grade Energy Meter
|
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, Supraharmonics, and Revenue Grade Energy Meter
|
| Data Acquisition | ||||
ADC Type |
SAR (Successive Approximation Register)
|
SAR (Successive Approximation Register)
|
SAR (Successive Approximation Register)
|
Sigma Delta
|
ADC Resolution |
18-bit
|
18-bit
|
18-bit
|
24-bit
|
ADC Filters |
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Voltage Sample Rate per Second |
1 MHz
|
1 MHz
|
1 MHz
|
124 kHz
|
Sampling Rate Voltage per Cycle |
20,000 Samples/Cycle
|
20,000 Samples/Cycle
|
20,000 Samples/Cycle
|
2,880 Samples/Cycle
|
Sampling Rate Current per Cycle |
20,000 Samples/Cycle
|
20,000 Samples/Cycle
|
20,000 Samples/Cycle
|
2,880 Samples/Cycle
|
Technology |
RAW Sampled Voltage & Current
|
RAW Sampled Voltage & Current
|
RAW Sampled Voltage & Current
|
RAW Sampled Voltage & Current
|
| AEMO Frequency Control Ancillary Services (FCAS) | ||||
Very Fast FCAS Compliant |
|
|
|
|
Sampling rate of Local Frequency Measurements Calculation Rate
|
≤50ms
|
≤50ms
|
≤50ms
|
< 50 ms
|
Sampling rate of Generation Amount and Load Amount measurements Calculation Rate
|
≤50ms
|
≤50ms
|
≤50ms
|
< 50 ms
|
Intrinsic Frequency Uncertainty Local Frequency Measurement Range
|
≤0.01 Hz
|
≤0.01 Hz
|
≤0.01 Hz
|
≤0.01 Hz
|
Frequency Resolution Local Frequency Measurement Range
|
≤0.0025 Hz
|
≤0.0025 Hz
|
≤0.0025 Hz
|
≤0.0025 Hz
|
Recording Period for Power & System Frequency Measurements |
Adjustable Trigger (Pre and Post)
|
Adjustable Trigger (Pre and Post)
|
Adjustable Trigger (Pre and Post)
|
Adjustable Trigger: ≥5 s before FDT and ≥60 s after it
|
| Voltage Inputs | ||||
Number of Inputs |
4
|
4
|
4
|
4, 8, 12, 16, and Modular
|
Accuracy |
0.05 %
|
0.05 %
|
0.05 %
|
0.05 %
|
Range |
1600 V / 800 V and 600V / 20V
|
1600 V / 800 V and 600V / 20V
|
1600 V / 800 V and 600V / 20V
|
1600 V / 800 V
|
Isolation |
6 kV
|
6 kV
|
6 kV
|
6 kV
|
Impedance |
10 MΩ
|
10 MΩ
|
10 MΩ
|
3.8 MΩ
|
Safety |
CAT III 1000 V and CAT IV 600 V
|
CAT III 1000 V and CATIV 600 V
|
CAT III 1000 V and CATIV 600 V
|
CAT IV 600 V
|
| Current Inputs | ||||
Number of Inputs |
4
|
6
|
5
|
4, 6, 8, 12, 16, 18, 24, and Modular
|
Accuracy |
0.05 %
|
0.05 %
|
0.05 %
|
0.05 %
|
Type |
Current Clamp, Rogowski Coil, and Zero Flux
|
Current Clamp, Rogowski Coil, and Zero Flux
|
Current Clamp, Rogowski Coil, and Zero Flux
|
Current Clamp, Rogowski Coil (Integrator Built-In), Zero Flux, Screw Termination, Banana Termination, LEMO Termination, and DSUB9 Termination
|
Current Sensor Supply |
± 15 V, ± 12 V, and ± 3.3 V
|
± 15 V, ± 12 V, and ± 3.3 V
|
± 15 V, ± 12 V, and ± 3.3 V
|
± 15 V, ± 12 V, and ± 3.3 V
|
Instrument Clamp Range |
1V, 2V, 5V, 10V, 2mV, 20mV, 200mV, and 2mV to 10V (15x Ranges)
|
1V, 2V, 5V, 10V, 2mV, 20mV, 200mV, and 2mV to 10V (15x Ranges)
|
1V, 2V, 5V, 10V, 2mV, 20mV, 200mV, and 2mV to 10V (15x Ranges)
|
2mV to 10V (15x Ranges)
|
Integrator Rogowski Range |
1 A to 300 kA
|
1 A to 300 kA
|
1 A to 300 kA
|
1 A to 300 kA
|
Impedance |
10 MΩ
|
10 MΩ
|
10 MΩ
|
10 MΩ
|
Additional Analog Inputs |
1 V, 2 V, 5 V, and 10 V
|
1 V, 2 V, 5 V, and 10 V
|
1 V, 2 V, 5 V, and 10 V
|
—
|
Automatic Sensor Detection |
|
|
|
|
| Functionality | ||||
Power Quality Analyzer |
|
|
|
|
Digital Fault Recorder |
|
|
|
|
Phasor Measurement Unit (PMU) |
|
|
|
|
| PMU | ||||
Total Vector Error (TVE) |
0.01 %
|
0.01 %
|
0.01 %
|
0.01 %
|
Angle Error |
0.003 °
|
0.003 °
|
0.003 °
|
0.003 °
|
Max Reporting Rate RR
|
50 FPS
|
50 FPS
|
50 FPS
|
50 FPS
|
GPS Time Stamp Accuracy |
0.1 μs
|
0.1 μs
|
0.1 μs
|
0.1 μs
|
| Storage | ||||
Capacity |
512 GB and 1 TB
|
512 GB and 1 TB
|
512 GB and 1 TB
|
1 TB and 2 TB
|
Type |
SSD
|
SSD
|
SSD
|
SSD, HHD, and NAS
|
Expandable |
Yes (Any External HHD via USB)
|
Yes (Any External HHD via USB)
|
Yes (Any External HHD via USB)
|
Yes (Any External HHD via USB)
|
| Display | ||||
Display |
|
|
|
|
Type |
10.1 inch Capacitive Multi-Touch TFT LCD, Sunlight Readable / 800cd
|
10.1 inch Capacitive Multi-Touch TFT LCD, Sunlight Readable / 800cd
|
10.1 inch Capacitive Multi-Touch TFT LCD, Sunlight Readable / 800cd
|
—
|
| Interfaces | ||||
Digital Input & Output DIO
|
|
|
|
|
CAN |
|
|
|
|
RS485 |
|
|
|
|
WiFi |
|
|
|
|
Bluetooth |
|
|
|
|
Ethernet |
|
|
|
|
HDMI |
|
|
|
|
GPS |
|
|
|
|
GPS Type |
Internal and External (Optional)
|
Internal and External (Optional)
|
Internal and External (Optional)
|
Internal and External (Optional)
|
GSM LTE |
|
|
|
|
GSM LTE Type |
GSM LTE
|
GSM LTE
|
GSM LTE
|
GSM LTE
|
MODBUS |
|
|
|
|
USB |
|
|
|
|
USB Type |
USB 3.0
|
USB 3.0
|
USB 3.0
|
USB 3.0
|
| Time Synchronization | ||||
GPS Accuracy |
0.1 μs
|
0.1 μs
|
0.1 μs
|
0.1 μs
|
| Battery | ||||
Battery Operation |
|
|
|
|
Type & Capacity |
Li-Ion Battery 90Wh
|
Li-Ion Battery 90Wh
|
Li-Ion Battery 90Wh
|
—
|
Operating Time |
4 Hours
|
4 Hours
|
4 Hours
|
—
|
| Power Supply | ||||
Main |
115V / 230V
|
115V / 230V
|
115V / 230V
|
115V / 230V
|
| Environmental | ||||
Operating Temp Range |
0 to 60°C
|
0 to 60°C
|
0 to 60°C
|
0 to 50°C
|
Storage Temp Range |
-20 to 80°C
|
-20 to 80°C
|
-20 to 80°C
|
-20 to 80°C
|
IP Rating |
IP2X
|
IP2X
|
IP2X
|
IP20
|
| Standards & Certifications | ||||
Standards |
Exceeds All Standards, EN50160, IEEE519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
Exceeds All Standards, EN50160, IEEE519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
Exceeds All Standards, EN50160, IEEE519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
Exceeds All Standards, EN50160, IEEE519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
| Physical | ||||
Weight |
4.0 kg
|
4.0 kg
|
4.0 kg
|
15.0 kg
|
Dimensions |
298 x 225 x 95 mm
|
298 x 225 x 95 mm
|
298 x 225 x 95 mm
|
170 x 484 x 381 mm
|
| In the Box | ||||
Supplied |
PQA8000H, Transport Bag, and Keyboard included
|
PQA8000H-M, Transport Bag, and Keyboard included
|
PQA8000H-P, Transport Bag, and Keyboard included
|
PQM200, Standard Accessories, and Carrying Case
|
| Optional Accessories | ||||
Optional |
Current Sensors, Integrated GPS receiver and GPS mouse, Integrated GSM Modem for telecommunication, DC Power supply input +9V …. +36V DC, Custom Color Code for Voltage and Current Inputs, Ruggedized Pelican-Case (IP67) with foamed insert adapted for the measurement instrument and pullout handle, Dust Cover, Temperature Sensor Thermocouple Type K on DSUB15 input, Radiation Pyranometer Sensor on DSUB15 input, Test Leads, and Other sensors available on request
|
Current Sensors, Integrated GPS receiver and GPS mouse, Integrated GSM Modem for telecommunication, DC Power supply input +9V …. +36V DC, Custom Color Code for Voltage and Current Inputs, Ruggedized Pelican-Case (IP67) with foamed insert adapted for the measurement instrument and pullout handle, Dust Cover, Temperature Sensor Thermocouple Type K on DSUB15 input, Radiation Pyranometer Sensor on DSUB15 input, Test Leads, and Other sensors available on request
|
Current Sensors, Integrated GPS receiver and GPS mouse, Integrated GSM Modem for telecommunication, DC Power supply input +9V …. +36V DC, Custom Color Code for Voltage and Current Inputs, Ruggedized Pelican-Case (IP67) with foamed insert adapted for the measurement instrument and pullout handle, Dust Cover, Temperature Sensor Thermocouple Type K on DSUB15 input, Radiation Pyranometer Sensor on DSUB15 input, Test Leads, and Other sensors available on request
|
—
|
