ELSPEC PQSCADA Sapphire Power Quality Management Software

ELSPEC PQSCADA Sapphire Power Quality Management Software

SPS-0400-0000

Accurate Data. Anywhere, Anytime. Any Device. ELSPEC PQSCADA Sapphire Power Management Software is a comprehensive, easy to use, analysis and engineering software designed to manage and monitor fault records, energy and power quality data in a single interface. Compatible with ELSPEC hardware or Any Third Party Device, it incorporates powerful analytical capabilities and customization options to meet the needs of each individual user.
$0.00 AUD
$0.00 AUD
Sale Sold out
Shipping calculated at checkout.
Edition

Compare PQSCADA Sapphire Editions

View full details

Join Us at the ELSPEC User Group Meeting 2024 in Dallas, Texas

We are excited to announce that we will be attending and presenting at the ELSPEC User Group Meeting 2024. One of the main keynote speakers is Manoj Angus, the Founder & CEO of SmartGRID Technologies & Power Quality Solutions, and CTO of Supreme Technology & Energy Solutions Australia. We have been an ELSPEC distributor in Australia for over 15 years and are excited to share our insights and expertise on Elspec products and solutions with people from across the globe.

See the full program on ELSPEC's website here.

Learn More - Free Registration

Accurate Data. Anywhere, Anytime. Any Device. The Best Power Quality Management Software on the Market.

PQSCADA Sapphire is a multi-component, vendor free, PQ software. PQSCADA Sapphire integrates data from protection relays, fault recorders, power quality analyzers, smart meters and other data sources into a single database.

feature-item-1
Report Customization
feature-item-2
Data Investigation
feature-item-3
Advanced PQ analysis
feature-item-4
Alarm & Control
feature-item-5
Multi-Vendor Support
feature-item-6
Real Time Overview

Seamless Integration with Any Device

PQSCADA Sapphire is an open, fully programmable platform designed for customization, and ease of integration. With an open and flexible platform, PQSCADA Sapphire supports many levels of customization: from simple end user configurations to XAML styling and full coding.

Supports Any Data Source including Elspec, Third-Party devices, and Databases

File Formats support for COMTRADE, PQDIF, PQZIP, PQZ, CSV, Excel.

Communication Protocols including MODBUS, IEC-61850, PQZ (REST)

Ethernet Layer: HTTP, HTTPS, FTP, FTPS, SFTP, UDP, and TCP

API available for full user customization

Real-Time Overview

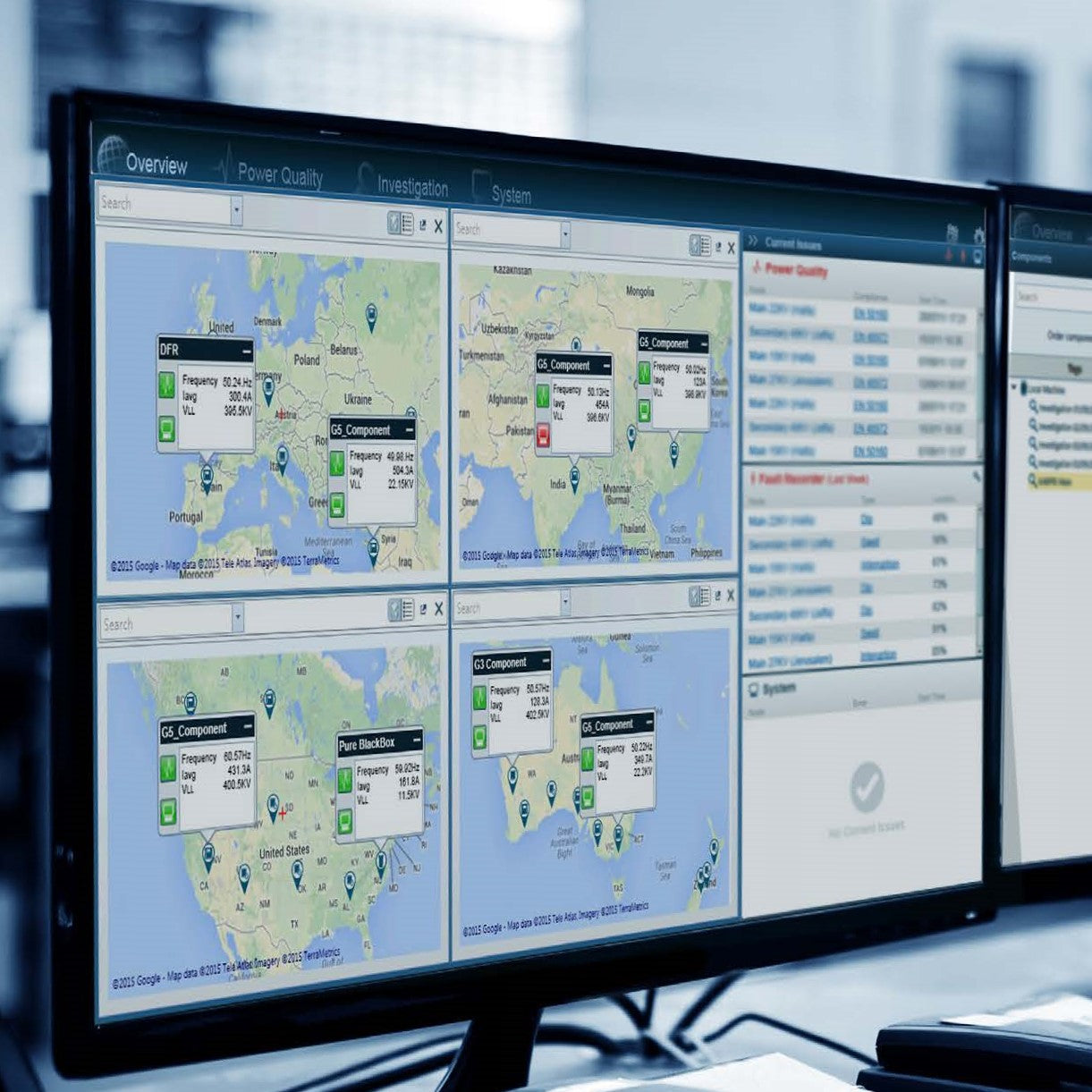

View all measurement points on a live geographical map with real time data and general statuses. In addition to the live map, 3 widgets are available to display the status of the electrical network:

Power quality: the power quality widget displays a list of measurement points that are in violation of pre-configured grid code. A link to the map or the investigation is available for quick access.


Disturbances: the disturbances widget displays a list of short predefined events that occurred during the last hour/day/week/month. A link to the map or the investigation is available for quick access.


System: the system widget displays a list of system messages/warnings about the operation’s condition. A link to the system module for further investigation is
available as well.

Power Quality Analysis

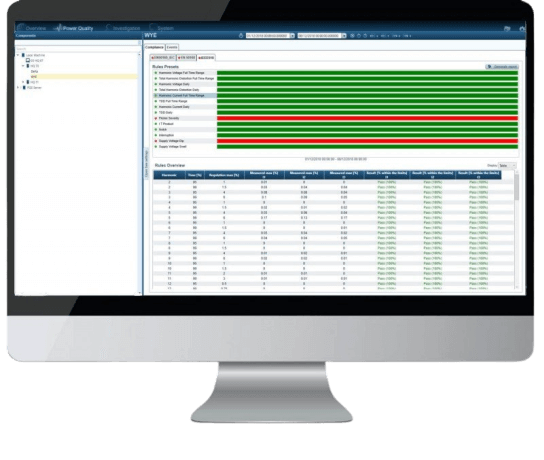

The Power Quality module shows at a glance the status of the entire network or individual measurement points for a selected period of time. The power quality conditions are configurable and can meet any grid code. Multiple compliance conditions can apply to a single measurement point for comparison. A comprehensive report, based on the power quality compliance conditions, can be easily generated from the power quality module.

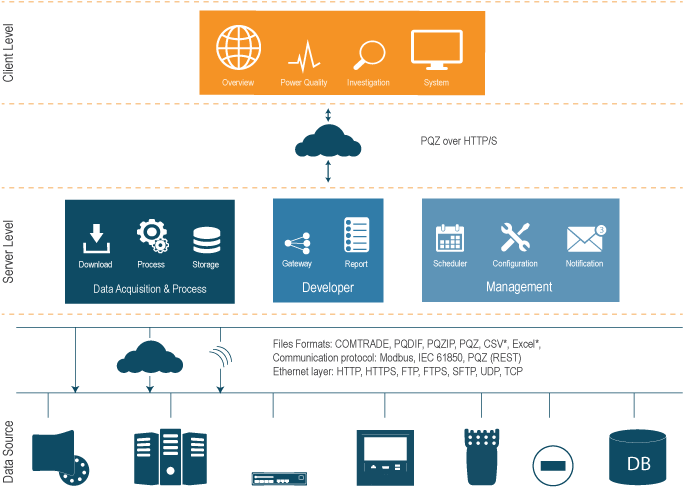

The Sapphire Workflow

Data Acquisition & Download from Any Device

Vendor free Integration of Power Quality meters, fault recorders, protection devices, revenue
meters and other IED’s via standard protocols such as IEC 61850 and Modbus, or by importing COMTRADE/PQDIF files.

Process RAW Data with 10,000 Different Power Parameters

A wide range of electrical parameters is calculated based on raw data. Processed data is
stored efficiently for quick access, while keeping database size low. PQSCADA Sapphire is capable of calculating 10,000 different power parameters, including statistics and harmonic amplitude/angle based on waveform raw
data.

Storage and Database Support for Microsoft SQL Sever 2008 or Newer

PQSCADA Sapphire supports a variety of DB engines such as MS SQL server 2008 and newer.
Synchronized logged data, system data and events are securely stored at 1nsec precision. PQSCADA Sapphire supports distributed databases and servers for load balancing.

Developer Add-On such as Comprehensive Gateway API and Report Add-On

PQSCADA Sapphire is a modular software enabling the user to extend capabilities and to meet any application and/or requirement. PQSCADA Sapphire supports two main add-on extensions.

  1. Gateway: comprehensive API is available for users who wish to extend PQSCADA Sapphire’s
    communication options. The Getaway add-on can be designed to communicate through any industrial and proprietary communication protocol or file structure.
  2. Report: The report add-on enables the user to design a tailor-made report template. Based on the stored data, the add-on also supports the option to calculate additional parameters and statistics, and to present them in the report.

Scheduler - Automate Tasks Easily

PQSCADA Sapphire supports a variety of automated tasks such as reporting, maintenance,
upgrade and notification. The scheduler module allows the user to schedule the task to run automatically on hourly, weekly, monthly, or annually basis or to be triggered in the event of limit value violations.

Configuration of Remote Devices and Servers

PQSCADA Sapphire configuration module allows the user to configure any parameter on the system including remote devices and servers.

Get Notifications in Real-Time through the Desktop or Mobile App

Emails or SMS notifications will be automatically sent in case of violation of thresholds of a predefined grid code, limit value violation, system error or any predefined event.

Compare PQSADA Sapphire Editions

Use the table below to choose your ELSPEC PQSADA Sapphire Power Management Software based on your feature requirements.
