NEO Messtechnik PQA 8000H-M Mobile Power Quality Analyzer

NEO Messtechnik PQA 8000H-M Mobile Power Quality Analyzer

$36,000.00 AUD
$36,000.00 AUD
Sale Sold out
Shipping calculated at checkout.

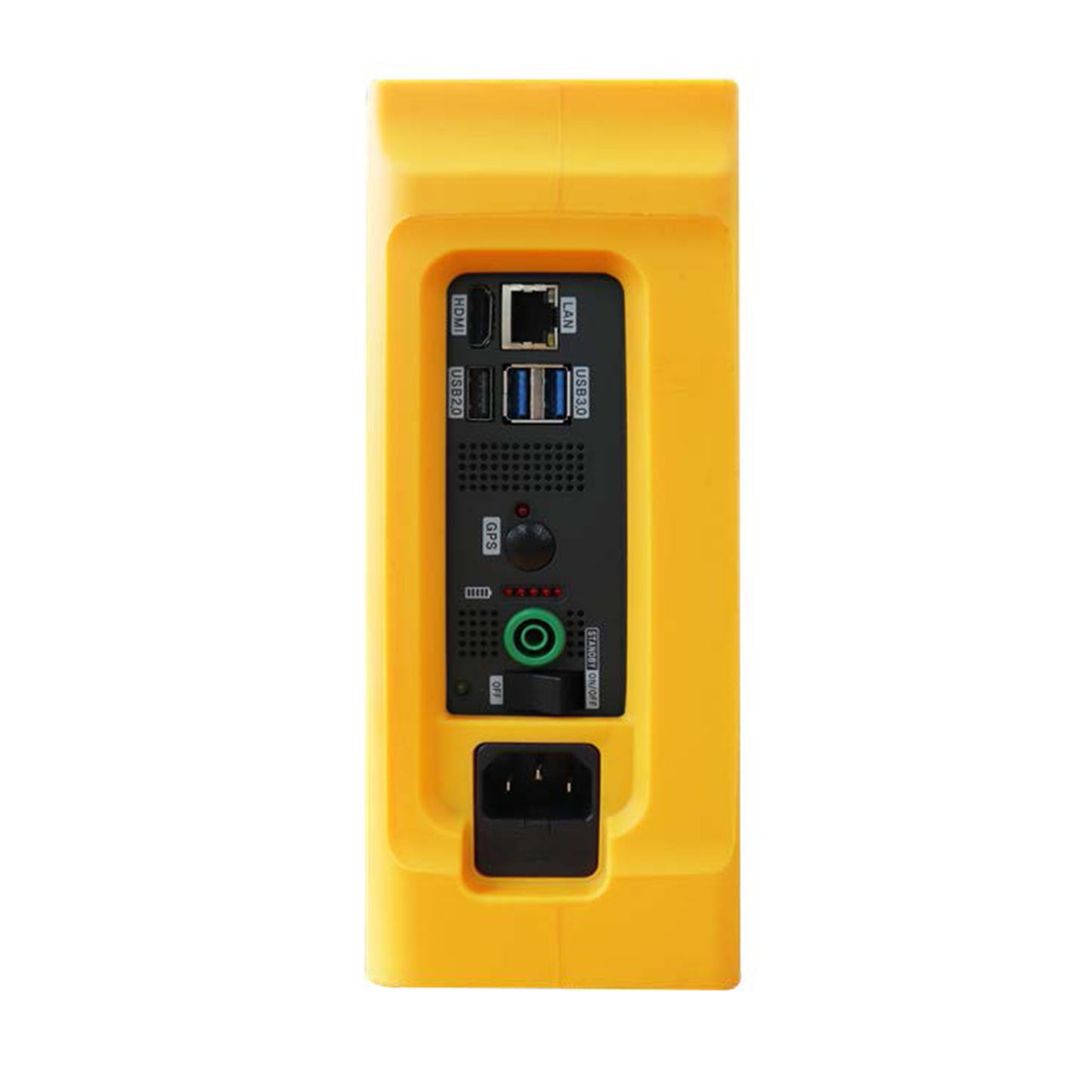

The NEO MESSTECHNIK PQA 8000H is a Class A++ portable all-in-one Power Quality Analyzer System with 4 voltage inputs and 8 current inputs. It is the only instrument in the world able to measure supraharmonic currents and voltages up to 500 kHz and 1 MHz Sampling Rate.

Key Features

Portable all-in-one power quality analyzer system
Intel® Quad Core processor, 8GB RAM
250GB SSD for operating system and application software
250GB SSD dedicated for data storage
3x USB, 1x Ethernet, 1x HDMI port
10.1 inch TFT LCD, Power supply 115 / 230 VAC
64-bit Microsoft® Windows® 10 operating system
Li-ion Battery 90Wh
18-bit ADC, 1 MS/s simultaneous ADC
4x Voltage input (+/-1,600V range, 6kV channel to channel isolation)
4x Current input (clamp/rogowski sensor) incl. TEDS
1xCAN Bus, 1xRS-485
  • Exclusive Distributor
  • Technical Support
  • Secure Checkout
View full details

The Reference Instrument

Power Quality Class A++ and Only instrument in the world to capture Supraharmonics up to 500 kHz

  • Exceeds all standards, future-proof with 1 MHz Sampling Rate, equivalent to 20,000 samples/cycle.
  • PMU with Total Vector Error (TVE) of 0.01 which is 100 times better than the IEC/IEEE Standards
  • Industry Leading Accuracy of 0.05 % for Voltage & Current with Angle Error of just 0.003 °

AEMO Frequency Control Ancillary Services (FCAS) Compliant for Monitoring & Reporting

PQA 8000H instrument meets all AEMO FCAS requirements for Very Fast FCAS, Fast FCAS, Slow FCAS, Delayed FCAS, and Regulation FCAS

AEMO GPS Compliance Assessment and R2 Model Validation

Suitable for Generator Performance Standard & R2 Testing

BUILD YOUR CUSTOM PQA-8000 KIT
feature-item-1
Power Quality
Exceeds all Compliance Standards
feature-item-2
Voltage & Current
Continuous Waveform, RMS, AVE, MIN, MAX, ½ cycle values, 200ms, 10s, 10min
feature-item-3
System Dynamics
Accurately capture complex system dynamics
feature-item-4
Transients
Transient Detection of 1µs. 1/2 period values, Phase Angle Jumps, Resonances, Switching etc.
feature-item-5
Harmonics
THD, TDD as per IEEE-519-2022 with Extended Range beyond the 512th Harmonic
feature-item-6
Supraharmonics
Up to 500 kHz, IEC61000-4-7 & IEC61000-4-30
feature-item-7
Interharmonics
Non-integer frequency components
feature-item-8
Flicker
PST, PLT, and Pinst Flicker Meters per IEC 61000-4-15
feature-item-9
PMU
TVE = 0.01%, 50FPS, IEEE C37.118 & IEC/IEEE 60255-118-2018
feature-item-10
Frequency & ROCOF
10 sec, AVE, MIN, MAX
feature-item-11
Symmetrical Components & Unbalance
Positive, Negative, & Zero-Sequence
feature-item-12
Phase Angle Jumps
with accuracy of 0.003 °
feature-item-13
Disturbances 1/2 Cycle
U, I, P, Q, S, f, PF, phi, THD, Harmonics, Interharm., Unbalance, etc.
feature-item-14
Power & Energy
P, Q, S, PF, D, DH, QH
feature-item-15
Resonance / Oscillations
Measure amplified voltage or current caused by specific frequencies.
feature-item-16
Switching Operations
Accurately capture switching transients caused by capacitor banks or loads.
feature-item-17
Grid Impedance
Up to 150kHz / 420 kHz
feature-item-18
Overvoltage & Undervoltage
Sag, Swell, Interruption with Time, Extrema, Length
feature-item-19
DC Offset
Measure shift from the zero baseline, where the mean voltage or current is not zero.
feature-item-20
Digital Signaling, CAN, RS485 & More
Interfaces for EV Charging, Breakout Boxes for CCS, Modbus etc

Suitable for All Applications

  1. Power Grid Monitoring & Ancillary Services (eg. FCAS)
  2. PMU and WAMs
  3. Renewables: Wind, Solar, Hydro, Combined Heat & Power (CHP), Battery Energy Storage System (BESS)
  4. EV Charging Stations
  5. Transformers, Motor, Generators, GPS & R2 Testing
  6. Conventional Power Plants
  7. Railway
  8. Aircraft & Marine
  9. Smart Grid & Energy Management
  10. Equipment Testing
  11. and More..

The NEO Workflow

Truly Intuitive Software

1. Easy Setup

The Measurement Software has a clear structure that
shows colour coded schematics with explanations, with large display scaling, buttons, and icons for instrument setup using the built-in 10.1 inch Multi-Touch Screen. Set up for 3 phase or single phase measurements.

VALIDATE CONFIGURATION SETTINGS & MEASUREMENTS

2. Measure

During measurements you can define widgets such as Scopes, Vector Scopes, Harmonic FFTs, Tables, Recorders etc. From this information, you can verify configuration settings such as phase order, current clamp polarity, or monitor live measurements.

Easy Remote Connection

  • AnyDesk
  • Teamviewer
  • Microsoft Remote Desktop

ADVANCED ANALYSIS SOFTWARE

3. Analyze

With the included NEO Report Software, you can perform sophisticated functions such as analyze PQ Data using Continuous Waveforms, Phasors, Events, Transients, Disturbances, Harmonic Analysis with FFT up to 500 kHz, Alarms, and more...

PROFESSIONAL REPORTS & CUSTOM TEMPLATES

4. Report & Export

The instrument can automatically generate

  • Standardized reports from IEEE, IEC, EN etc.
  • User customizable report templates
  • Professional documentation

Customize the Reports

  • Company Logos
  • Location of Recording with GPS Data
  • Add comments

Save & Export

  • PDF Reports are saved on device using built-in storage.
  • Share reports directly via E-mail
  • Export to Any Cloud Service such as Microsoft One Drive
  • Export RAW data into CSV, XLS, Comtrade, PQDiff, and more.

FLEXABLE WORKFLOW

5. Install User Applications

The instrument uses Microsoft Windows 10. This flexibility means that you can process the raw data the way you want for your specific needs.

Install Any Windows Application

  • MATLAB
  • Microsoft 365 applications such as Word or Excel
  • Remote Desktop Apps
  • and many more...

Use the Data for

  • Data Visualization
  • Data Analytics
  • Artificial Intelligence (AI)
  • Machine Learning-based Applications

High Bandwidth & High Accuracy

Conventional PQ Analyzers, even if they are Class A certified, are not sufficient for modern measurement applications. NEO uses the best available components to ensure the highest safety category and also the highest accuracy. NEO instruments offer high bandwidth (up to 1 MHz) and correct the frequency dependent behavior of current & voltage sensors as well as integrated electronics to achieve the best possible measurement results.

Electric Vehicle (EV) Charging Station

  • Power Quality Analysis
  • Supraharmonics up to 500kHz
  • PLC Signal Analysis
  • CAN Interface Data
  • DC Power
  • AC Power
  • Efficiency
  • CP Sensor & Signal Analysis
  • Grid Impedance
  • CSS or CHAdeMO Measurement Adapter Box Available

Grid Impedance Analyzer & Measurement

The Grid Impedance Analyzer (GIA) is powered by the PQA 8000 Series and allows measuring the single-phase grid impedance or three phase grid impedance for both phase to ground or phase to phase, in a frequency range up to 450 kHz.

  • Z, phi, Re, Im, R, X, Zero, Positive, Negative Sequence)
  • Fundamental Frequency Impedance (50Hz / 60Hz etc.)
  • Interaction Inverter
  • Grid Impedance up to 10 kHz (Higher Frequencies)
  • Grid Impedance up to 150 kHz (Supraharmonics)
  • Grid Impedance up to 450kHz
Shop NEO Grid Impedance Analyzer

Sensor Integration

All current sensors offered by NEO Messtechnik are industry proven for different applications. We use and improve on the best available sensors in the market.

Frequency Dependent Calibration
The NEO sensor integration calibrates each sensor over a wide frequency bandwidth and corrects frequency dependent phase shift and amplitude damping. This allows for high precision from DC to high-frequency measurements.

Measurement Range Dependent Calibration
In addition, the sensors will calibrated for each measurement range using multiple points.

Shop NEO Current Sensors

PQA 8000 Series Models

Use our configurator to easily build your custom kit by adding current clamps and accessories.

KIT CONFIGURATOR - NEO PQA 8000 SERIES

PQA8000H
4x Voltage Input 1600V DC
4x Current Input (Rogowski, Clamp)
CAN / RS485

PQA8000H-P
4x Voltage Input 1600V DC
6x Current Input (Rogowski, Clamp)
2x Analog Input (± 10V)
CAN / RS485 / DIO

PQA8000H-M
4x Voltage Input 1600V DC
8x Current Input (Rogowski, Clamp)
CAN / RS485 / DIO

Complying Standards

Power Quality, Harmonics, Flicker

IEC61000-4-30 Ed. 3 Class A / IEC61000-4-7 / IEC61000-4-15 /
IEC62586-2 Ed. 2 / IEC62586-1

Public Grid, Railway, and Industry

EN50160 / EN50163 / IEC61000-2-2 / IEC61000-2-4 (Class 1; 2; 3) /
IEEE519 / IEEE 1159 / IEC61000-2-12 / NRS048

Wind Power, Renewables, Grid Codes, and PMU

IEC61400-21 / IEC61400-12 / FGW-TR3 / VDE N-4105 / VDE N-4100 /
VDE N-4110 / D-A-CH-CZ / BDEW / ROCOF / IEEE C37.118-2005 / IEEE C37.118.1-2011 / IEEE C37.118.2-2011 / IEEE C37.118.1a-2014 / IEC/IEEE-60255-118-2018

Motors, Transformers, and Electrical Equipment

IEC60034 / IEC 60076-1 / IEC61000-3-2 / IEC61000-3-3 / IEC61000-3-11 / IEC61000-3-12
