NEO Messtechnik PQA 8000H Mobile Power Quality Analyzer

NEO Messtechnik PQA 8000H Mobile Power Quality Analyzer

$32,300.00 AUD
$32,300.00 AUD
Sale Sold out
Shipping calculated at checkout.

NEO MESSTECHNIK PQA 8000H is a Class A++ All-in-One Power Quality Analyzer, DFR, & PMU System with industry leading 1 MHz Sampling Rate & the only instrument able to measure Supraharmonics up to 500 kHz. Suitable for AEMO FCAS Compliance Monitoring and Reporting, AEMO GPS Compliance Assessment and R2 Model Validation, EV Charging Stations, and all power quality monitoring applications including energy and grid impedance measurements.

Key Features

  • Portable all-in-one power quality analyzer system
  • 18-bit ADC 1Mhz Sampling Rate Voltage and Current

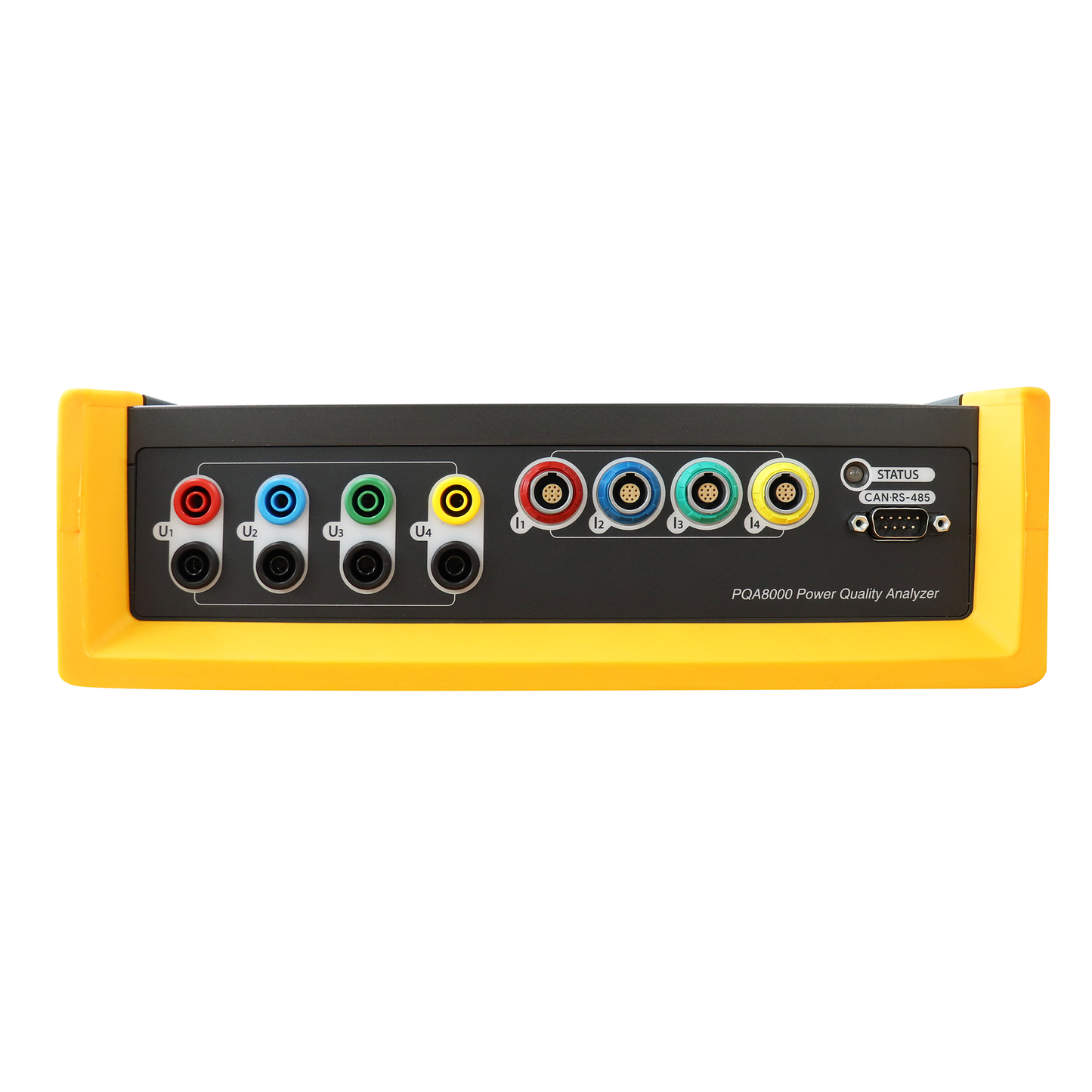

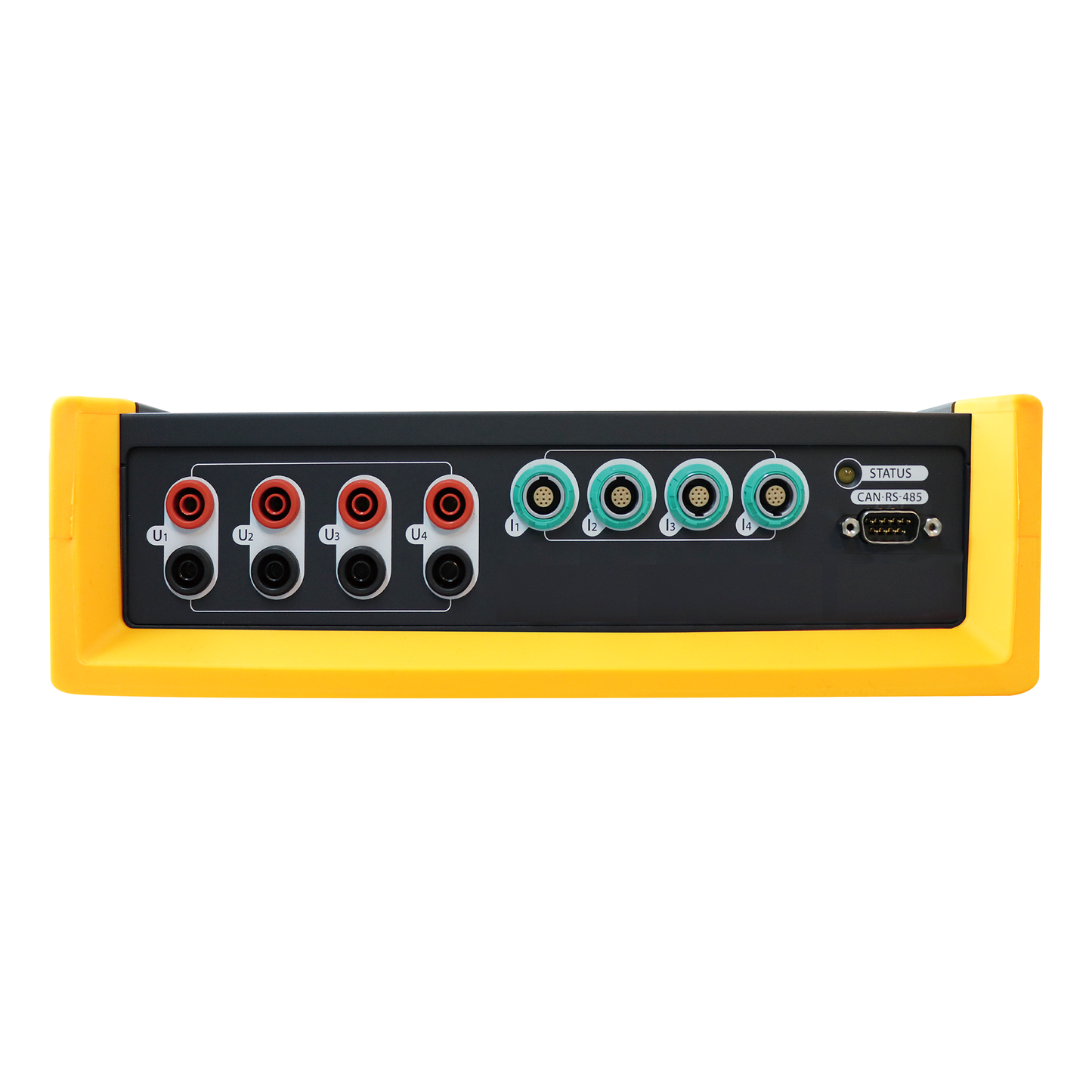

  • 4x Voltage input (+/-1,600V range, 6kV channel to channel isolation)
  • 4x Current input (Clamp or Rogowski) with TEDS Auto Sensor Detection

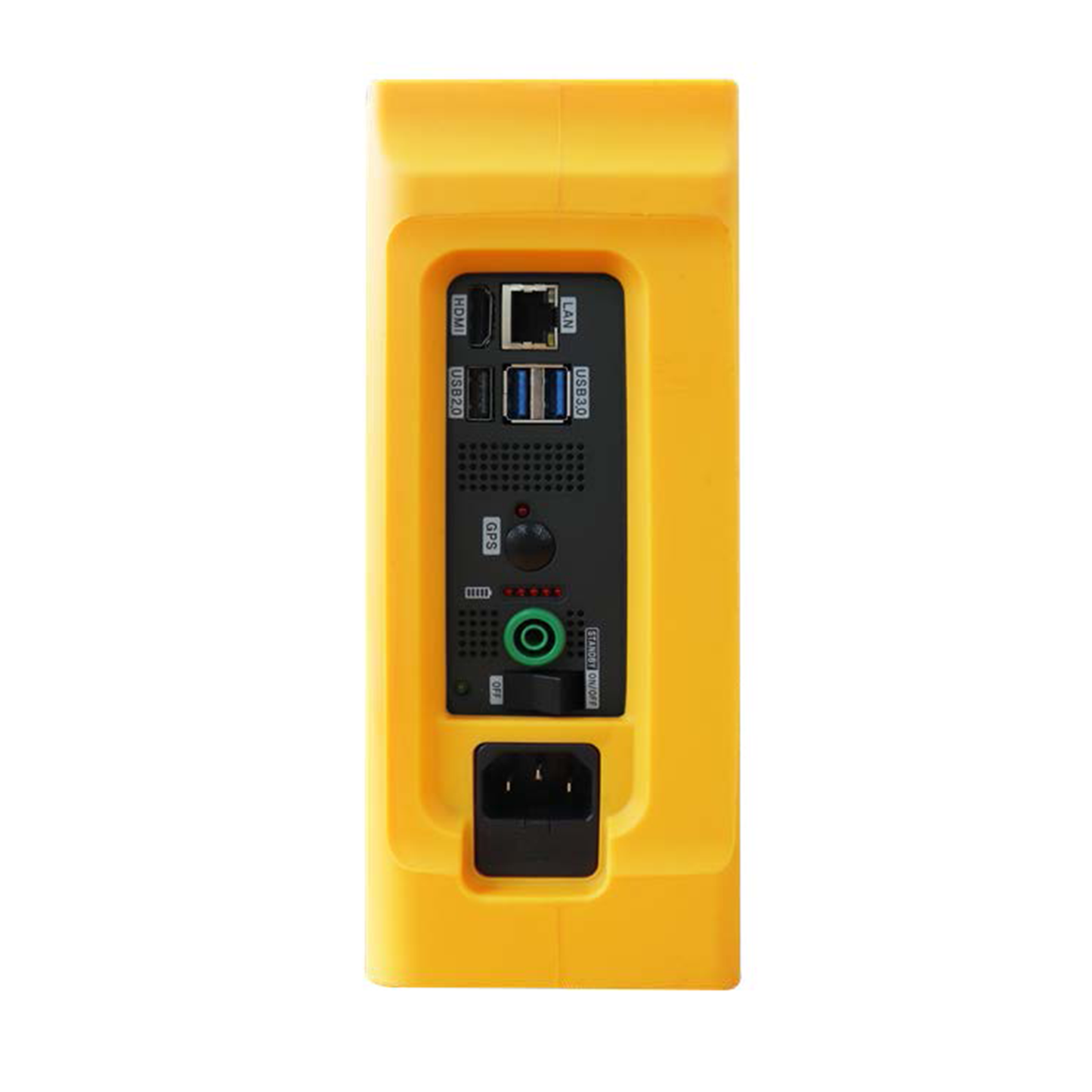

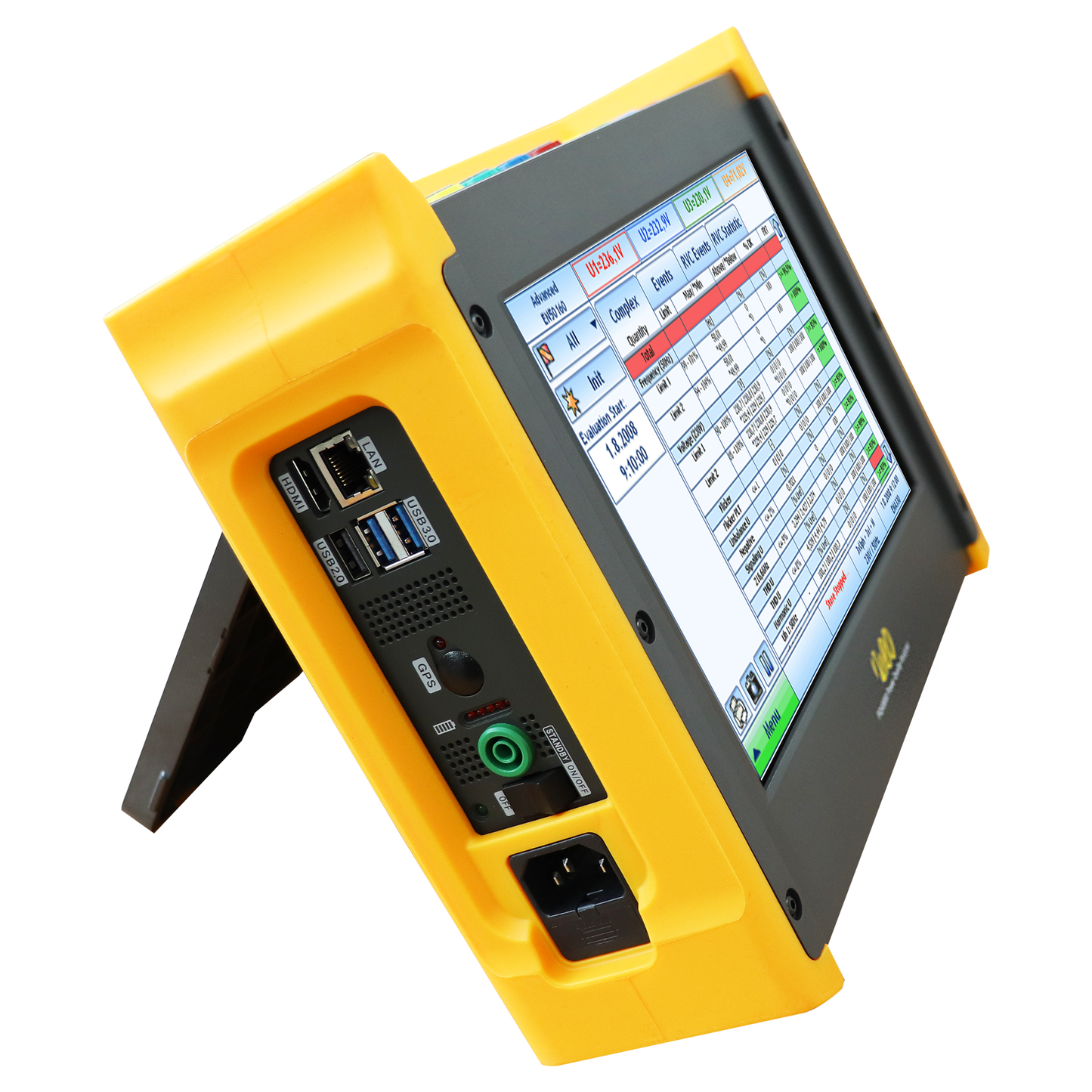

  • Interfaces 1xCAN Bus, 1xRS-485, 3x USB, 1x Ethernet, 1x HDMI port
  • Microsoft® Windows® 10 64-bit operating system
  • Intel® Quad Core processor, 8GB RAM
  • Built-In Li-ion 90Wh Battery for 4 hours operation
  • 512 GB SSD Storage (Expandable)

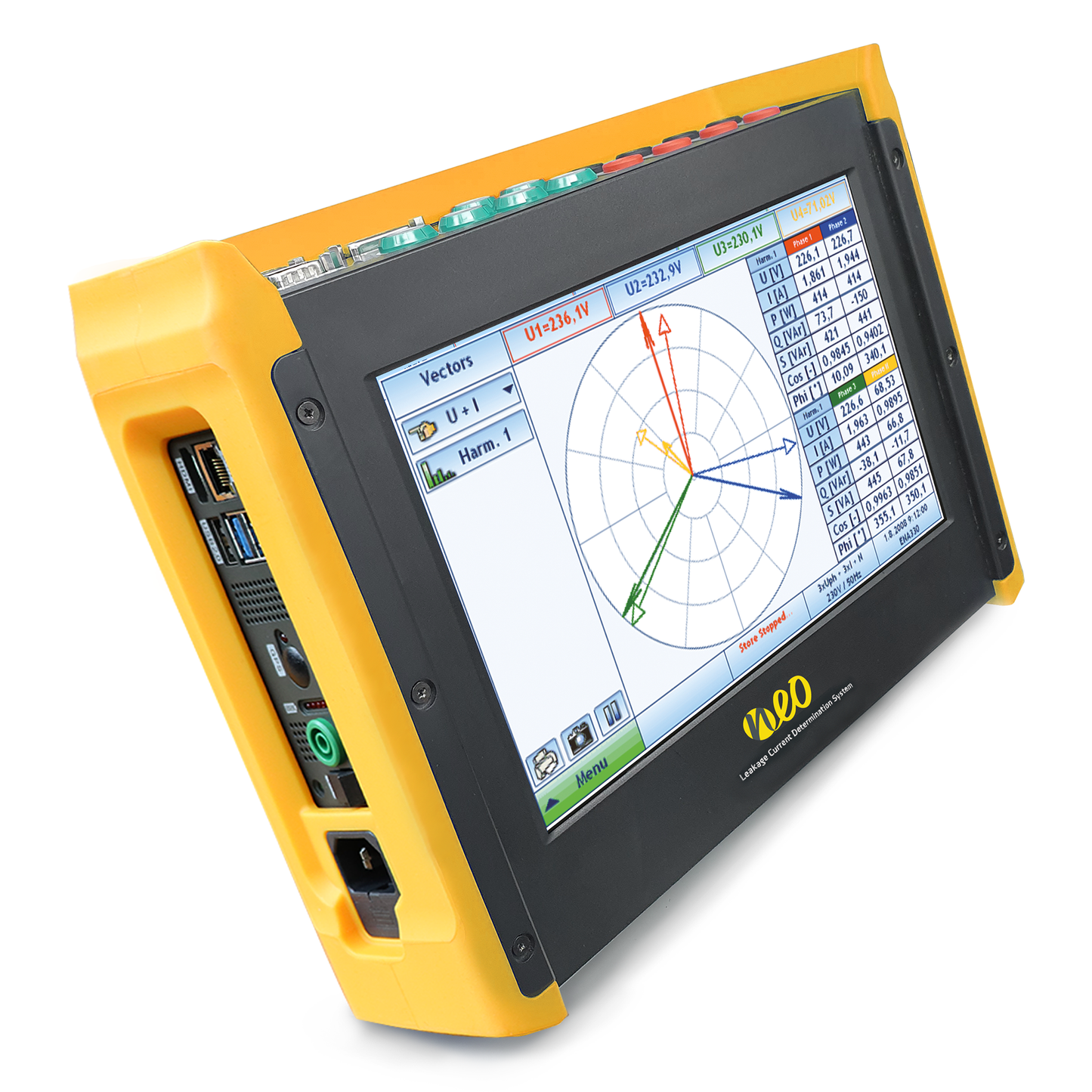

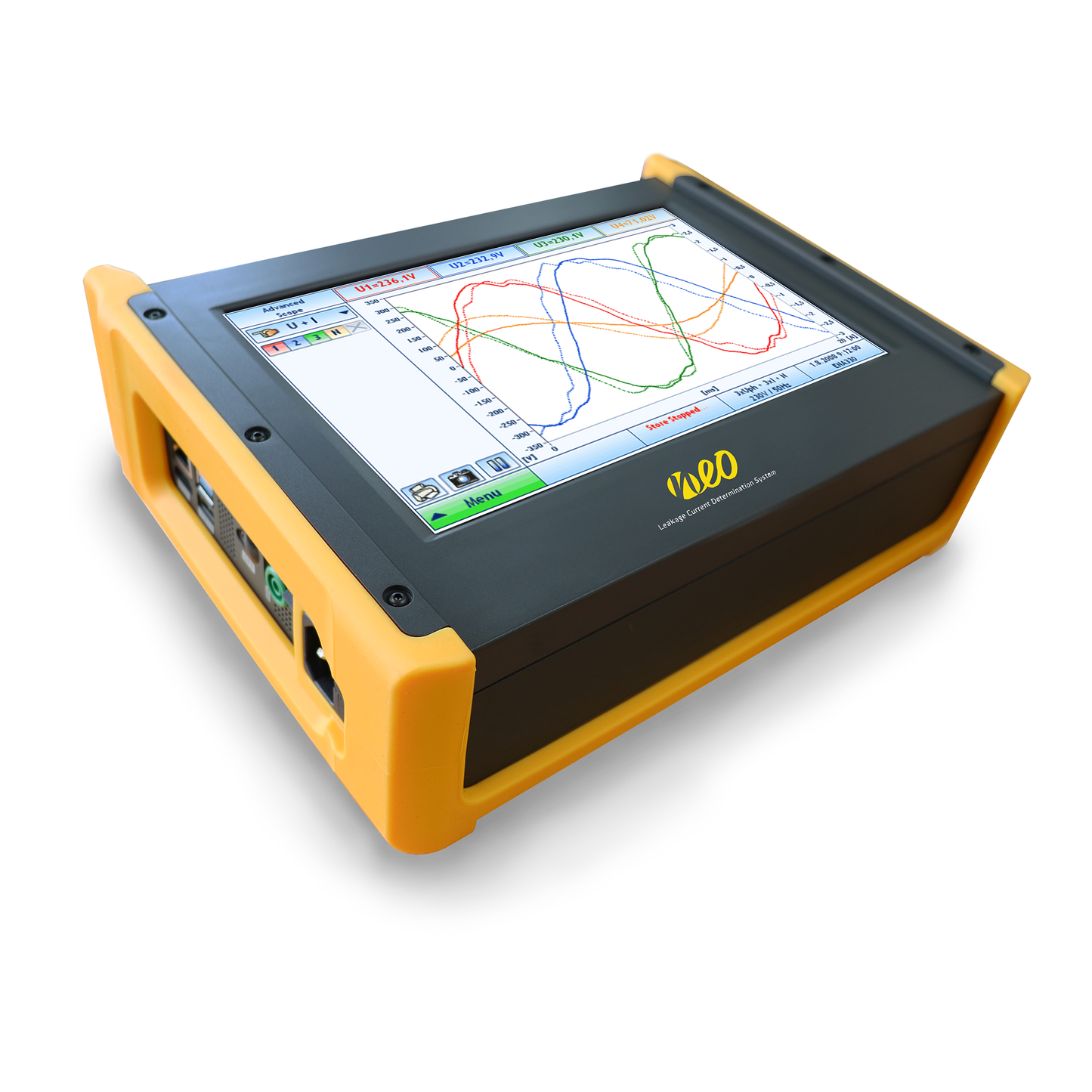

  • 10.1 inch Multi-touch TFT LCD
  • Power supply 115 / 230 VAC
      • Exclusive Distributor
      • Technical Support
      • Secure Checkout
      View full details

      The Reference Instrument

      Power Quality Class A++ and Only instrument in the world to capture Supraharmonics up to 500 kHz

      • Exceeds all standards, future-proof with 1 MHz Sampling Rate, equivalent to 20,000 samples/cycle.
      • PMU with Total Vector Error (TVE) of 0.01 which is 100 times better than the IEC/IEEE Standards
      • Industry Leading Accuracy of 0.05 % for Voltage & Current with Angle Error of just 0.003 °

      AEMO Frequency Control Ancillary Services (FCAS) Compliant for Monitoring & Reporting

      PQA 8000H instrument meets all AEMO FCAS requirements for Very Fast FCAS, Fast FCAS, Slow FCAS, Delayed FCAS, and Regulation FCAS

      AEMO GPS Compliance Assessment and R2 Model Validation

      Suitable for Generator Performance Standard & R2 Testing

      BUILD YOUR CUSTOM PQA-8000 KIT
      feature-item-1
      Power Quality
      Exceeds all Compliance Standards
      feature-item-2
      Voltage & Current
      Continuous Waveform, RMS, AVE, MIN, MAX, ½ cycle values, 200ms, 10s, 10min
      feature-item-3
      System Dynamics
      Accurately capture complex system dynamics
      feature-item-4
      Transients
      Transient Detection of 1µs. 1/2 period values, Phase Angle Jumps, Resonances, Switching etc.
      feature-item-5
      Harmonics
      THD, TDD as per IEEE-519-2022 with Extended Range beyond the 512th Harmonic
      feature-item-6
      Supraharmonics
      Up to 500 kHz, IEC61000-4-7 & IEC61000-4-30
      feature-item-7
      Interharmonics
      Non-integer frequency components
      feature-item-8
      Flicker
      PST, PLT, and Pinst Flicker Meters per IEC 61000-4-15
      feature-item-9
      PMU
      TVE = 0.01%, 50FPS, IEEE C37.118 & IEC/IEEE 60255-118-2018
      feature-item-10
      Frequency & ROCOF
      10 sec, AVE, MIN, MAX
      feature-item-11
      Symmetrical Components & Unbalance
      Positive, Negative, & Zero-Sequence
      feature-item-12
      Phase Angle Jumps
      with accuracy of 0.003 °
      feature-item-13
      Disturbances 1/2 Cycle
      U, I, P, Q, S, f, PF, phi, THD, Harmonics, Interharm., Unbalance, etc.
      feature-item-14
      Power & Energy
      P, Q, S, PF, D, DH, QH
      feature-item-15
      Resonance / Oscillations
      Measure amplified voltage or current caused by specific frequencies.
      feature-item-16
      Switching Operations
      Accurately capture switching transients caused by capacitor banks or loads.
      feature-item-17
      Grid Impedance
      Up to 150kHz / 420 kHz
      feature-item-18
      Overvoltage & Undervoltage
      Sag, Swell, Interruption with Time, Extrema, Length
      feature-item-19
      DC Offset
      Measure shift from the zero baseline, where the mean voltage or current is not zero.
      feature-item-20
      Digital Signaling, CAN, RS485 & More
      Interfaces for EV Charging, Breakout Boxes for CCS, Modbus etc

      Suitable for All Applications

      1. Power Grid Monitoring & Ancillary Services (eg. FCAS)
      2. PMU and WAMs
      3. Renewables: Wind, Solar, Hydro, Combined Heat & Power (CHP), Battery Energy Storage System (BESS)
      4. EV Charging Stations
      5. Transformers, Motor, Generators, GPS & R2 Testing
      6. Conventional Power Plants
      7. Railway
      8. Aircraft & Marine
      9. Smart Grid & Energy Management
      10. Equipment Testing
      11. and More..

      The NEO Workflow

      Truly Intuitive Software

      1. Easy Setup

      The Measurement Software has a clear structure that
      shows colour coded schematics with explanations, with large display scaling, buttons, and icons for instrument setup using the built-in 10.1 inch Multi-Touch Screen. Set up for 3 phase or single phase measurements.

      VALIDATE CONFIGURATION SETTINGS & MEASUREMENTS

      2. Measure

      During measurements you can define widgets such as Scopes, Vector Scopes, Harmonic FFTs, Tables, Recorders etc. From this information, you can verify configuration settings such as phase order, current clamp polarity, or monitor live measurements.

      Easy Remote Connection

      • AnyDesk
      • Teamviewer
      • Microsoft Remote Desktop

      ADVANCED ANALYSIS SOFTWARE

      3. Analyze

      With the included NEO Report Software, you can perform sophisticated functions such as analyze PQ Data using Continuous Waveforms, Phasors, Events, Transients, Disturbances, Harmonic Analysis with FFT up to 500 kHz, Alarms, and more...

      PROFESSIONAL REPORTS & CUSTOM TEMPLATES

      4. Report & Export

      The instrument can automatically generate

      • Standardized reports from IEEE, IEC, EN etc.
      • User customizable report templates
      • Professional documentation

      Customize the Reports

      • Company Logos
      • Location of Recording with GPS Data
      • Add comments

      Save & Export

      • PDF Reports are saved on device using built-in storage.
      • Share reports directly via E-mail
      • Export to Any Cloud Service such as Microsoft One Drive
      • Export RAW data into CSV, XLS, Comtrade, PQDiff, and more.

      FLEXABLE WORKFLOW

      5. Install User Applications

      The instrument uses Microsoft Windows 10. This flexibility means that you can process the raw data the way you want for your specific needs.

      Install Any Windows Application

      • MATLAB
      • Microsoft 365 applications such as Word or Excel
      • Remote Desktop Apps
      • and many more...

      Use the Data for

      • Data Visualization
      • Data Analytics
      • Artificial Intelligence (AI)
      • Machine Learning-based Applications

      High Bandwidth & High Accuracy

      Conventional PQ Analyzers, even if they are Class A certified, are not sufficient for modern measurement applications. NEO uses the best available components to ensure the highest safety category and also the highest accuracy. NEO instruments offer high bandwidth (up to 1 MHz) and correct the frequency dependent behavior of current & voltage sensors as well as integrated electronics to achieve the best possible measurement results.

      Electric Vehicle (EV) Charging Station

      • Power Quality Analysis
      • Supraharmonics up to 500kHz
      • PLC Signal Analysis
      • CAN Interface Data
      • DC Power
      • AC Power
      • Efficiency
      • CP Sensor & Signal Analysis
      • Grid Impedance
      • CSS or CHAdeMO Measurement Adapter Box Available

      Grid Impedance Analyzer & Measurement

      The Grid Impedance Analyzer (GIA) is powered by the PQA 8000 Series and allows measuring the single-phase grid impedance or three phase grid impedance for both phase to ground or phase to phase, in a frequency range up to 450 kHz.

      • Z, phi, Re, Im, R, X, Zero, Positive, Negative Sequence)
      • Fundamental Frequency Impedance (50Hz / 60Hz etc.)
      • Interaction Inverter
      • Grid Impedance up to 10 kHz (Higher Frequencies)
      • Grid Impedance up to 150 kHz (Supraharmonics)
      • Grid Impedance up to 450kHz
      Shop NEO Grid Impedance Analyzer

      Sensor Integration

      All current sensors offered by NEO Messtechnik are industry proven for different applications. We use and improve on the best available sensors in the market.

      Frequency Dependent Calibration
      The NEO sensor integration calibrates each sensor over a wide frequency bandwidth and corrects frequency dependent phase shift and amplitude damping. This allows for high precision from DC to high-frequency measurements.

      Measurement Range Dependent Calibration
      In addition, the sensors will calibrated for each measurement range using multiple points.

      Shop NEO Current Sensors

      PQA 8000 Series Models

      Use our configurator to easily build your custom kit by adding current clamps and accessories.

      KIT CONFIGURATOR - NEO PQA 8000 SERIES

      PQA8000H
      4x Voltage Input 1600V DC
      4x Current Input (Rogowski, Clamp)
      CAN / RS485

      PQA8000H-P
      4x Voltage Input 1600V DC
      6x Current Input (Rogowski, Clamp)
      2x Analog Input (± 10V)
      CAN / RS485 / DIO

      PQA8000H-M
      4x Voltage Input 1600V DC
      8x Current Input (Rogowski, Clamp)
      CAN / RS485 / DIO

      Complying Standards

      Power Quality, Harmonics, Flicker

      IEC61000-4-30 Ed. 3 Class A / IEC61000-4-7 / IEC61000-4-15 /
      IEC62586-2 Ed. 2 / IEC62586-1

      Public Grid, Railway, and Industry

      EN50160 / EN50163 / IEC61000-2-2 / IEC61000-2-4 (Class 1; 2; 3) /
      IEEE519 / IEEE 1159 / IEC61000-2-12 / NRS048

      Wind Power, Renewables, Grid Codes, and PMU

      IEC61400-21 / IEC61400-12 / FGW-TR3 / VDE N-4105 / VDE N-4100 /
      VDE N-4110 / D-A-CH-CZ / BDEW / ROCOF / IEEE C37.118-2005 / IEEE C37.118.1-2011 / IEEE C37.118.2-2011 / IEEE C37.118.1a-2014 / IEC/IEEE-60255-118-2018

      Motors, Transformers, and Electrical Equipment

      IEC60034 / IEC 60076-1 / IEC61000-3-2 / IEC61000-3-3 / IEC61000-3-11 / IEC61000-3-12
