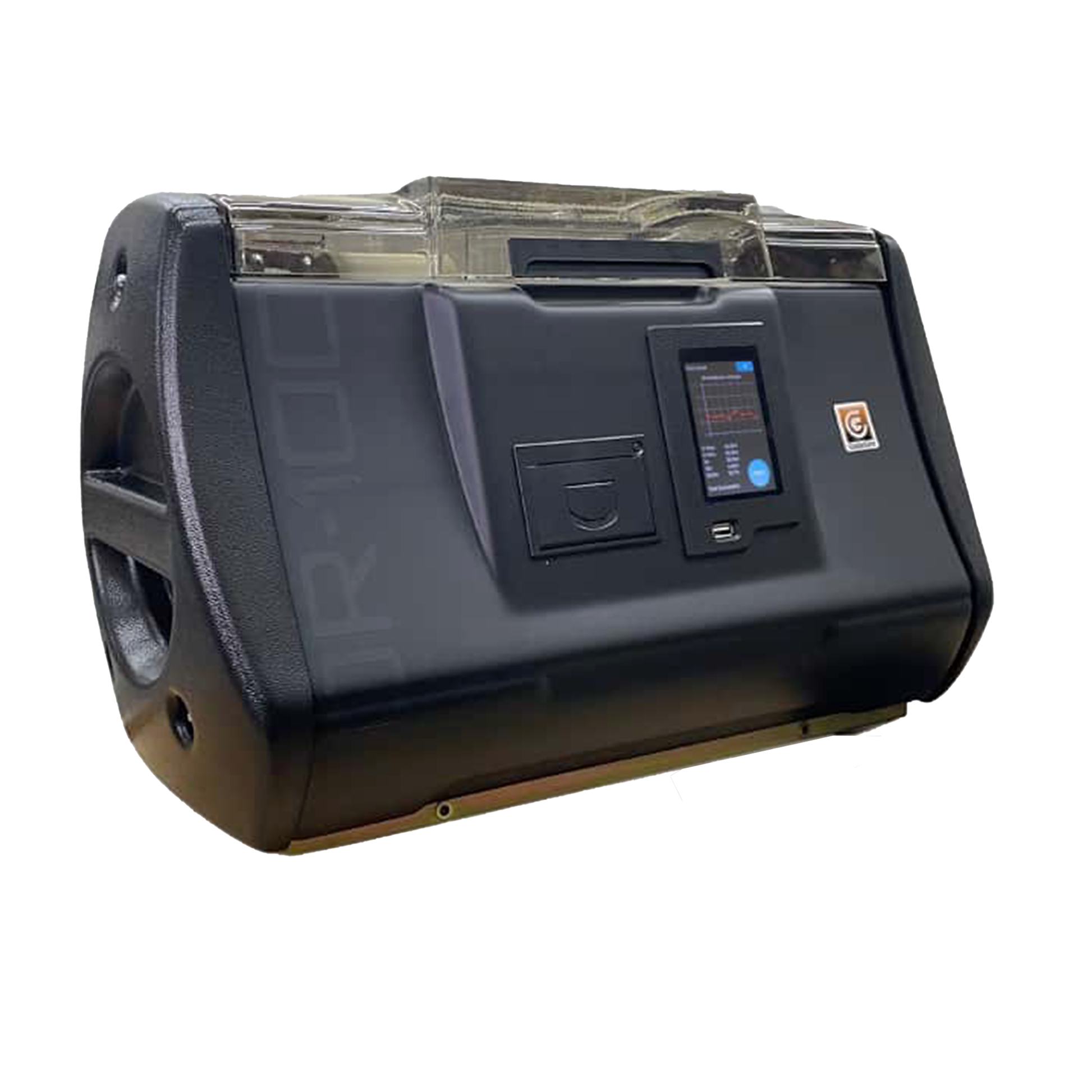

GlobeCore TOR-100 Transformer Oil Dielectric Breakdown Voltage Tester

GlobeCore TOR-100 Transformer Oil Dielectric Breakdown Voltage Tester

GlobeCore TOR-100 is a portable and fully automated transformer oil breakdown voltage tester and insulating oil dielectric tester up to 100 kV. It is fully compliant with standards IEC 60156, VDE 0370, ASTM D877, ASTM D1816, IRAM 2341, and many more. It has support for custom measurements and optional battery pack allows up to 8 hours of operation.

Key Features:

  • Automated and Industry Leading Accuracy of breakdown voltage up to 100kV.
  • Instantaneous (4 μs) disconnection of the test voltage upon breakdown.
  • TOR-100 can work autonomously or in a network with transferring results to a PC, creating a local database, generating reports, plotting graphs and printing results.
  • Supports standard and custom measurement procedures TOR-100 can be used in the field or for research purposes.
  • Simple and easy to operate and maintain.

TOR-80 can be used for:

  • measuring the breakdown voltage of mineral transformer oil.
  • measuring the breakdown voltage of silicone transformer oil
  • measuring the breakdown voltage of Midel 7131 transformer oil
  • measuring the breakdown voltage of FR3 and other dielectric fluids
View full details

Video: GlobeCore TOR-60, TOR-80, and TOR-100
