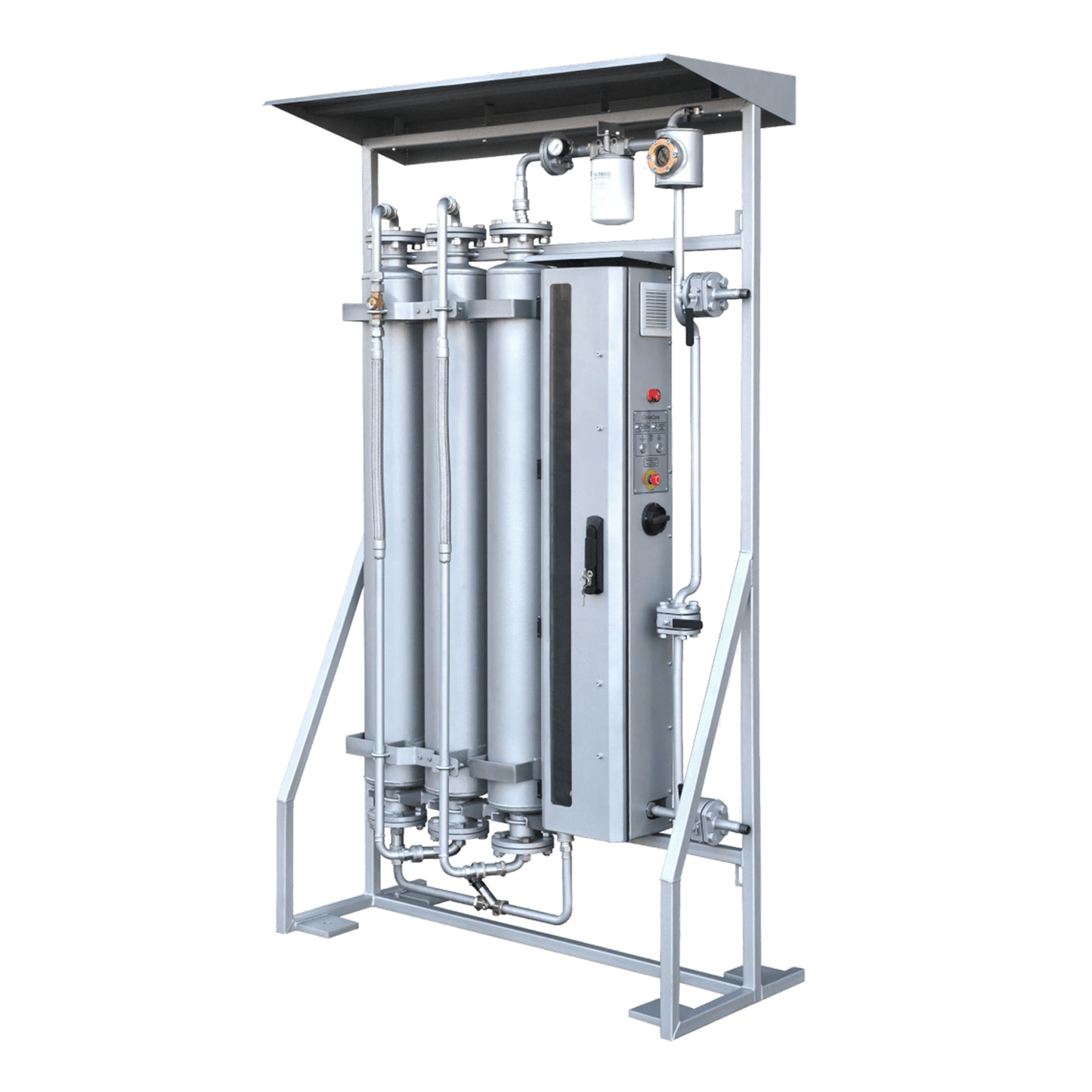

GlobeCore CMM-MSD Series Online Transformer Monitoring, Diagnostic, and Oil Processing System

GlobeCore CMM-MSD Series Online Transformer Monitoring, Diagnostic, and Oil Processing System

Model

The GlobeCore CMM-MSD Series of transformer oil drying unit is designed to remove water from the transformer, keeping it dry independently of the temperature and the state of water in the oil.

View full details

Advantages of CMM-MSD Series

  • Low Relative Cost

    The cost of CMM-MSD systems are significantly lower compared to the expenses associated with purchasing new transformers or the financial losses due to emergency failures, making it a cost-effective investment.

  • Automatic Constant Operation

    CMM-MSD dries the oil without heating and does not require constant operator control. The sorbent captures water regardless of its temperature and form.

  • Versatility & Suitable for All Transformers

    Suitable for new, aged, and multipurpose oil-filled transformers, any make, any model.

  • Long Service Life, Easy Installation, and Compact Design

    Quick connection process post-preparation, taking just a few minutes.

1 4

Key Features

Water is a dangerous enemy of the transformer, reducing the dielectric strength of transformer oil, accelerating the aging of oil and solid insulation. It is impossible to entirely prevent water contamination in a transformer, since it forms regardless of service quality and airtightness of the unit. However, it is possible to protect the transformer with the CMM-260C continuous drying device. This machine is connected to the transformer and keeps it dry throughout its service life by passing its oil through a microporous granular sorbent. Water is absorbed and reliably held in its crystals.

CMM-MSD

Principle of Operation

  • Equipped with zeolite sorbent adsorbers to absorb water molecules from treated liquid.
  • Adsorbers can be dismantled and replaced or sorbent reactivated with BRPS (BRZ) zeolite regeneration unit.
  • Connects to transformer via rigid or flexible pipework.
  • Utilizes a pump to circulate oil through filter and adsorbers for moisture removal, then back to transformer.
  • Monitored by a logic controller displaying oil moisture content before/after drying, filter pressure, and injection pump operation.
  • Transformer leakage protection via monitored oil level; controller maintains required level.
  • Automatic valves cut off oil flow in case of leakage, stopping the TOR-4 system.

Oil Drying and Filtration Mode

The CMM-MSD system filters and dries transformer oil using a sequential process involving a filter and adsorbers, ensuring the transformer remains dry and functional without the need for heating or staff presence.

  • Oil is drawn from the transformer's bottom.
  • It passes through a filter with a 10-micron fineness.
  • It then goes through three adsorbers, each containing 20 kg of aluminosilicate sorbent.
  • The filter removes mechanical impurities; the sorbent absorbs and retains water.
  • Processed oil is returned to the transformer's top, maintaining functionality without heating, at a rate of 30 liters per hour.
  • The CMM-MSD unit switches to monitoring mode once oil parameters normalize.
  • The system also helps remove water from the paper insulation, keeping the transformer dry throughout its service life.

Ambient Conditions of Operation

  • Ambient temperature: (+5 to +40) °C.
  • Atmospheric pressure: 84 to 106.7 kPa (630 to 800 mm Hg).
  • Elevation above sea level: Up to 2000 m.
  • Location: In open air under a canopy.
  • Usage environment: Indoors with ventilation.

Easy Installation within Minutes

The CMM-MSD is connected with hoses or pipes. This connection can be done by one person, using quick-coupling connections. The operations takes only a few minutes.

Configure your CMM-MSD System

  • Voltage Level & Frequency

    • 220V, 380V, 400V, 415V, 480V, 600V
    • 50 Hz or 60 Hz

  • Sealing Material

    • Oil and Petrol Resistant Rubber
    • Viton

  • Power Cable

    • Not Required
    • Power Cable Needed

  • Method of cable connection to the unit

    • Not Required
    • Male/Female Connectors Kit

  • Method of the cable connection to the power source

    • Not Required
    • Crimp Terminals
    • Male/Female Connectors Kit

  • Inlet Hose

    • 10-meter Stainless Steel Hose
    • 15-meter Stainless Steel Hose
    • 20-meter Stainless Steel Hose

  • Outlet Hose

    • 10-meter Stainless Steel Hose
    • 15-meter Stainless Steel Hose
    • 20-meter Stainless Steel Hose

  • Zeolite (1000 kg)

1 8
