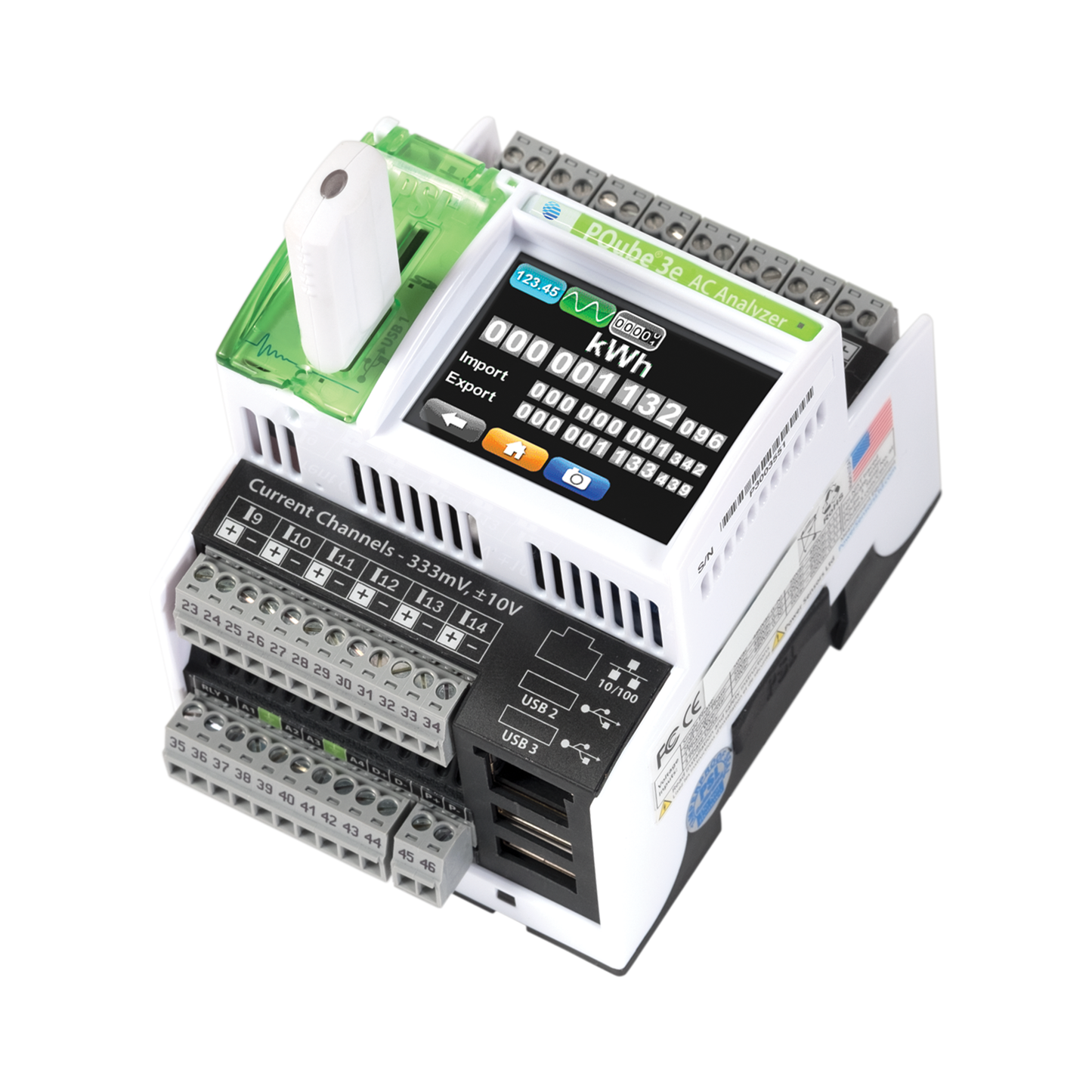

POWERSIDE PQube 3e Power Quality Analyzer

Powerside PQube 3e is a Class A power quality analyzer with 4 voltage and 14 current inputs, featuring a Class 0.2 Revenue Grade 4-Quandrant Energy Meter, it can replace four traditional revenue-grade meters as well as deliver environmental sensing and external process. It identifies, measures, and records all power quality disturbances in real-time.

Key Features

• Voltage Inputs (up to 750 VAC nominal L-N)
• 14 Current Inputs, compatible with Rogowski Coils & Traditional CTs
• Class 0.2 Revenue Grade 4-Quandrant Energy Meter
• IEC 61000-4-30 Ed3 Class A
• High Sampling Rate at 512 samples/cycle
• Records AC and DC Power Disturbances
• 2kHz-150kHz Supraharmonics conducted emissions recording
• 250ns transient recording at 4MHz HF Sampling
• Supports Modbus/TCP, BACnet, DNP3, FTP, NTP, SNTP, SNMP, Emails
• Touchscreen HMI with over 600 Live Meters
• 32GB Internal Memory of Storage for 1 Years’ worth of Events
