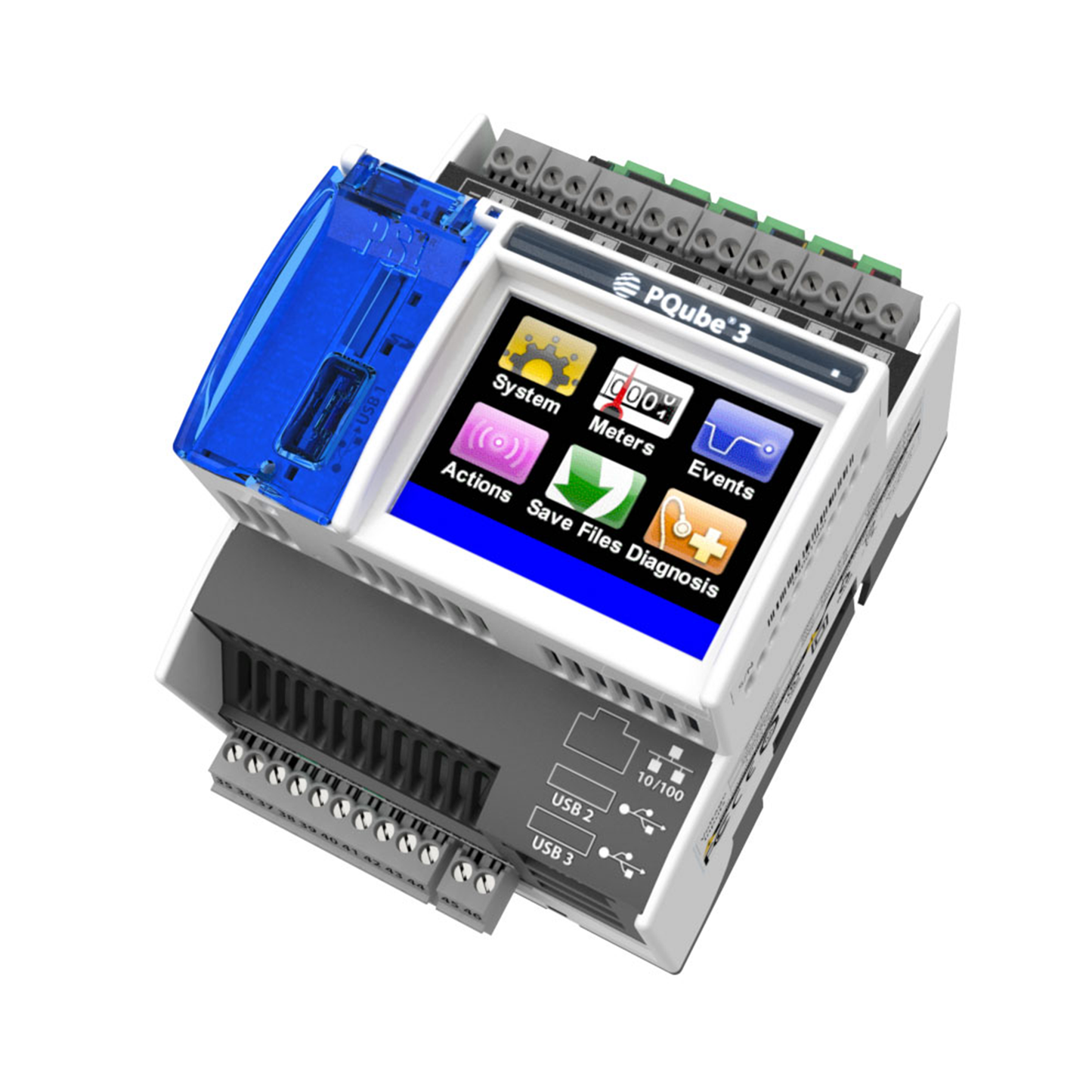

POWERSIDE PQube 3 Power Quality Analyzer

Powerside PQube 3 is a Class A power quality analyzer with 4 voltage and 8 current inputs. It is the only complete solution on the market capable of monitoring power quality, environmental and process data — all through a single instrument. It is perfect for data centers, EV charging stations, utilities, manufacturing, medical facilities, telecommunications, and more.

Key Features

• 4 Voltage Inputs (up to 750 VAC nominal)
• 8 Current Inputs IEC 61000-4-30 Ed3 Class A
• Records AC and DC Power Disturbances Class 0.2
• Revenue Grade 4-Quandrant Energy Meter
• High Sampling Rate at 512 samples/cycle for both Voltage and Current
• 2kHz-150kHz Supraharmonics conducted emissions recording
• 250ns transient recording at 4MHz HF Sampling
• Supports Modbus/TCP, BACnet, DNP3, FTP, NTP, SNTP, SNMP, Emails
• Touchscreen HMI with over 600 Live Meters
• 32GB Internal Memory of Storage for 1 Years’ worth of Events
