NEO MESSTECHNIK

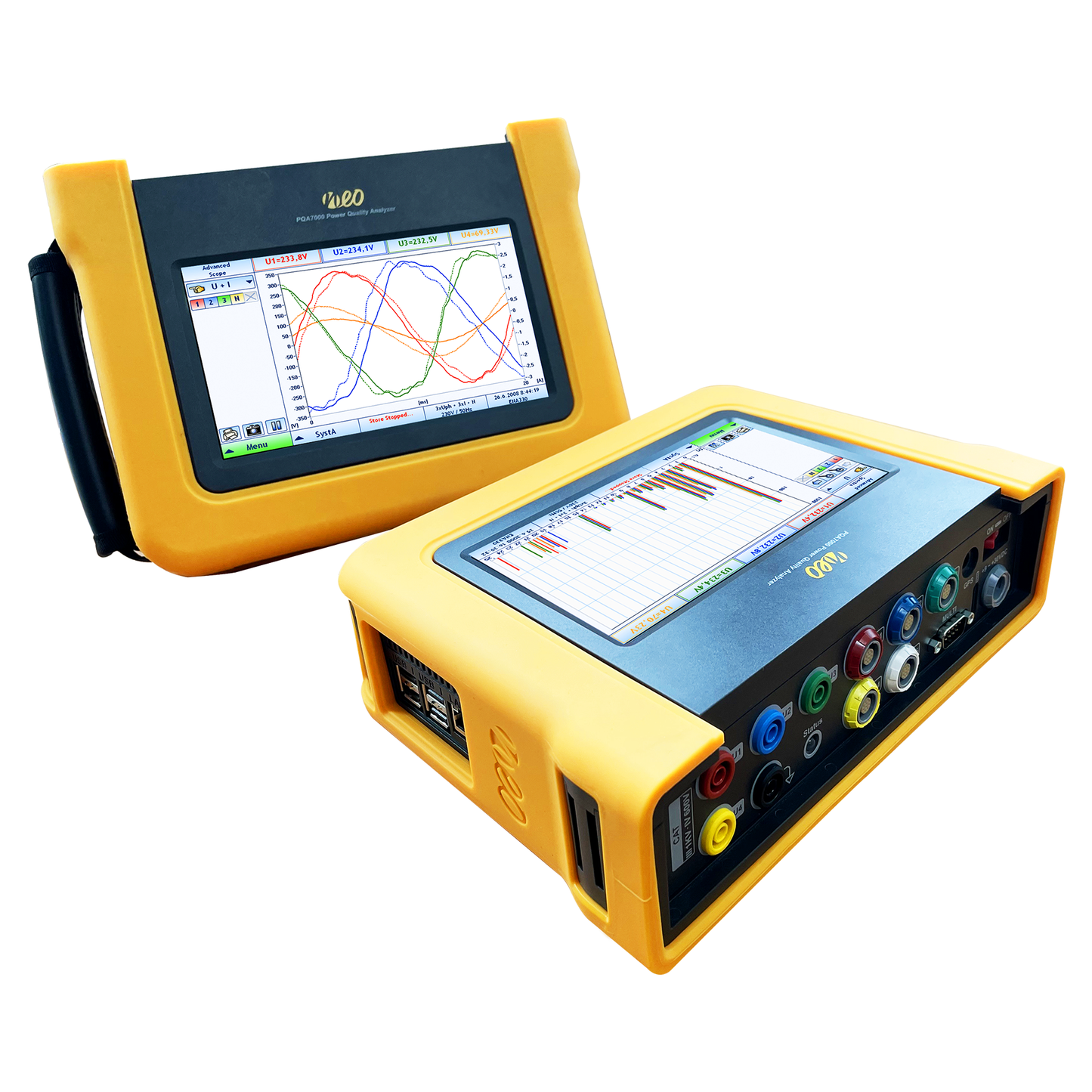

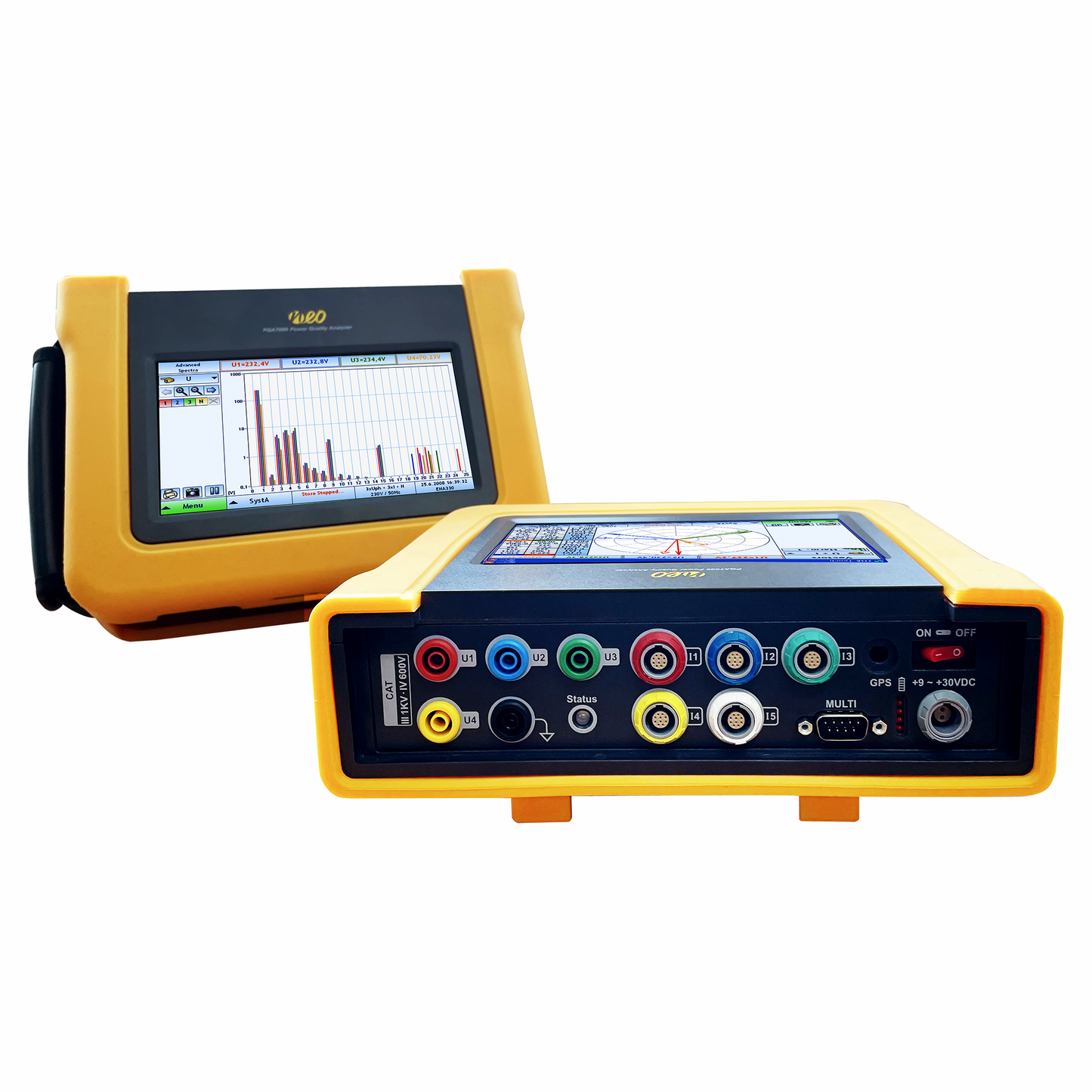

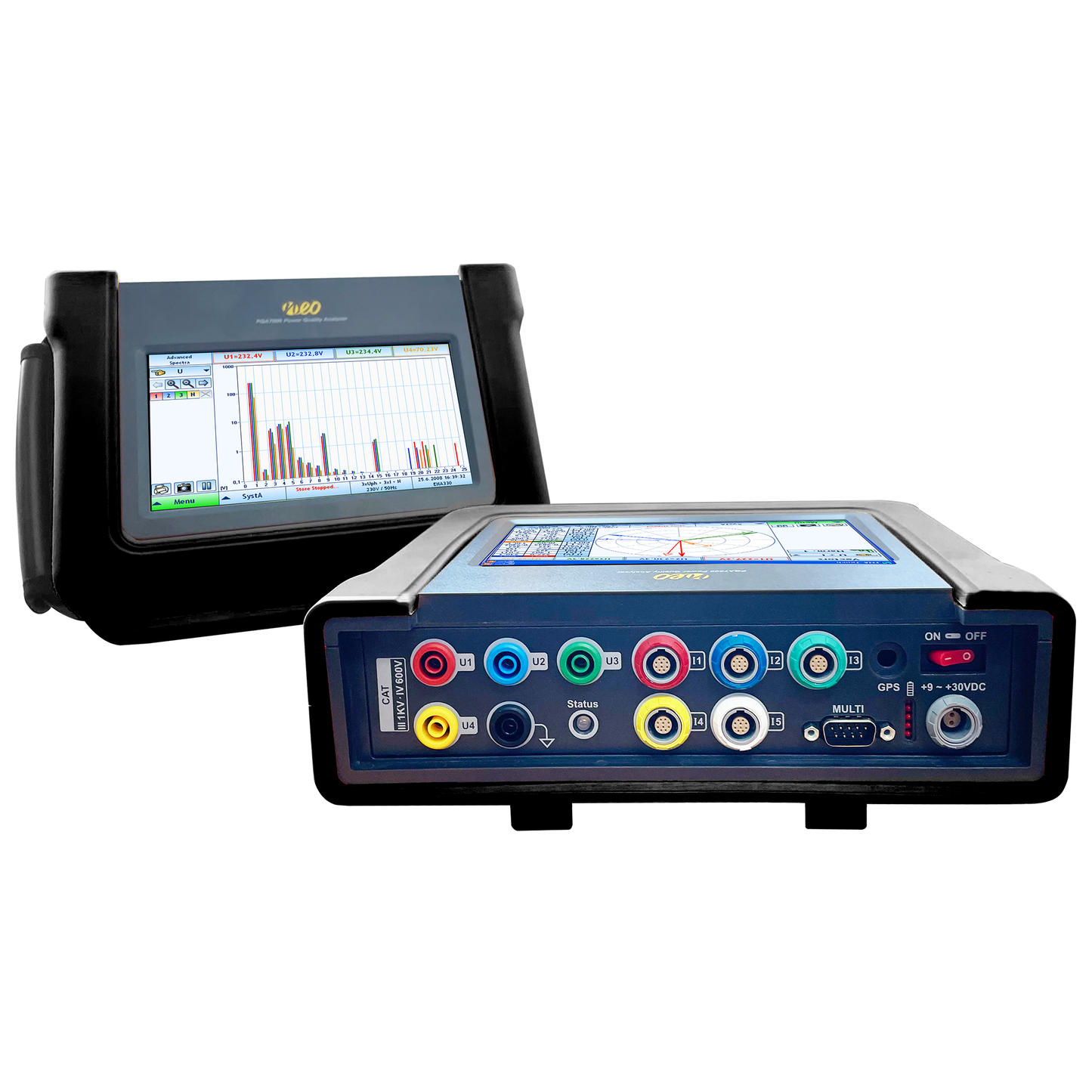

NEO Messtechnik PQA 7000 Mobile Power Quality Analyzer

NEO Messtechnik PQA 7000 Mobile Power Quality Analyzer

$21,700.00 AUD
$21,700.00 AUD
Sale Sold out
Shipping calculated at checkout.

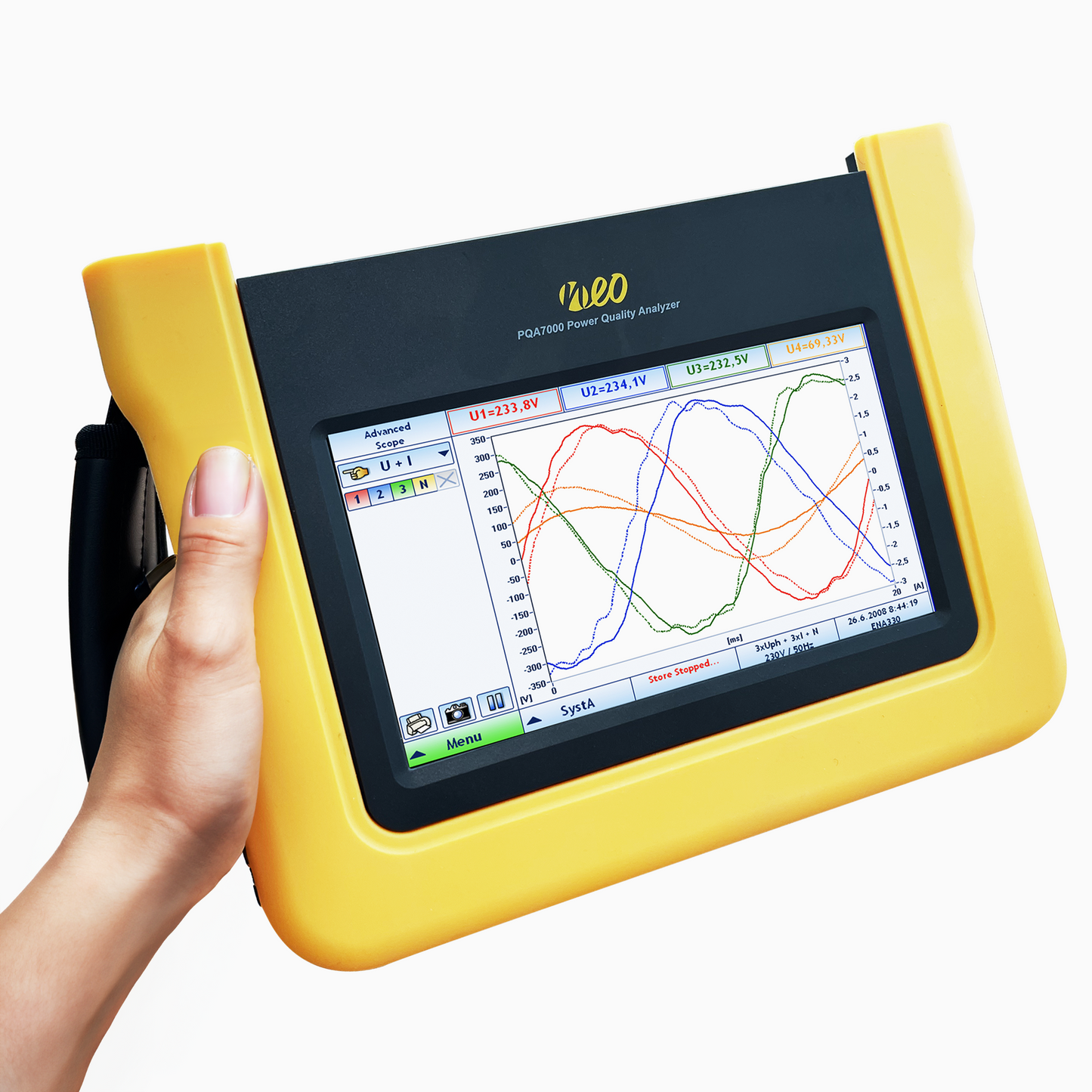

The NEO MESSTECHNIK PQA 7000 is a Class A++ all-in-one portable power quality analyzer, DFR, and PMU system. It has 4 voltage inputs and 5 current inputs with industry leading accuracy of 0.05% and high sampling rate of 48 kHz, 24-bit ADC. It has a multi-touch display, 6 hour battery operation and Quad Core processor, and Windows 10.

 Key Features

  • Multi-functional Recorder (PQA, DFR, and PMU) - Meets & Exceeds all Standards
  • High Resolution 24-bit ADC
  • High Sampling Rate of 48kS/s for all voltage and current inputs

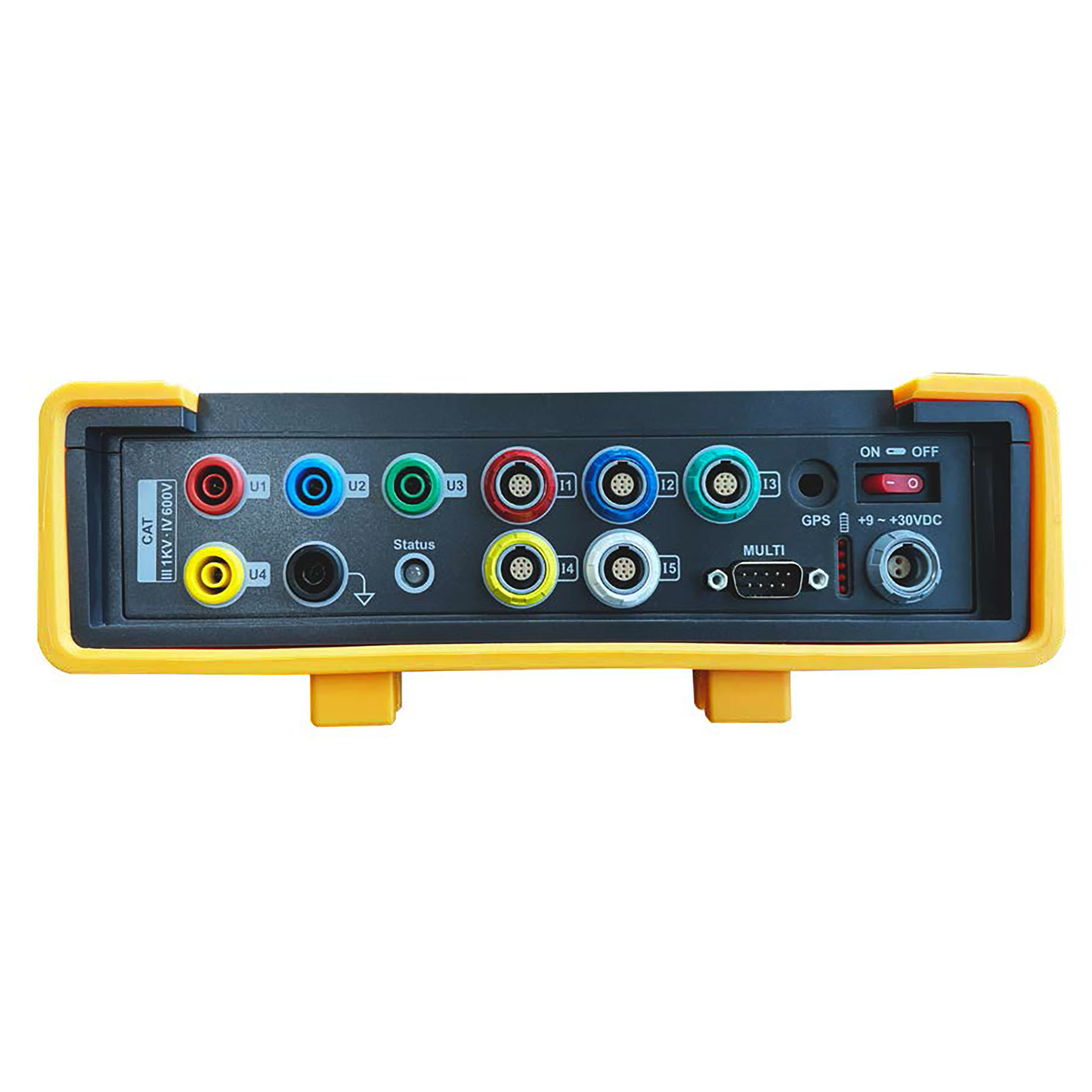

  • 4x Voltage inputs (+/-1,600V range, common neutral 6kV isolation, CAT IV 600V)
  • 5x Current inputs (Clamp/Rogowski sensor) with TEDS Auto Sensor Detection
  • Interfaces: 1 x CAN Bus, 1 x RS-485, 4-bit digital input

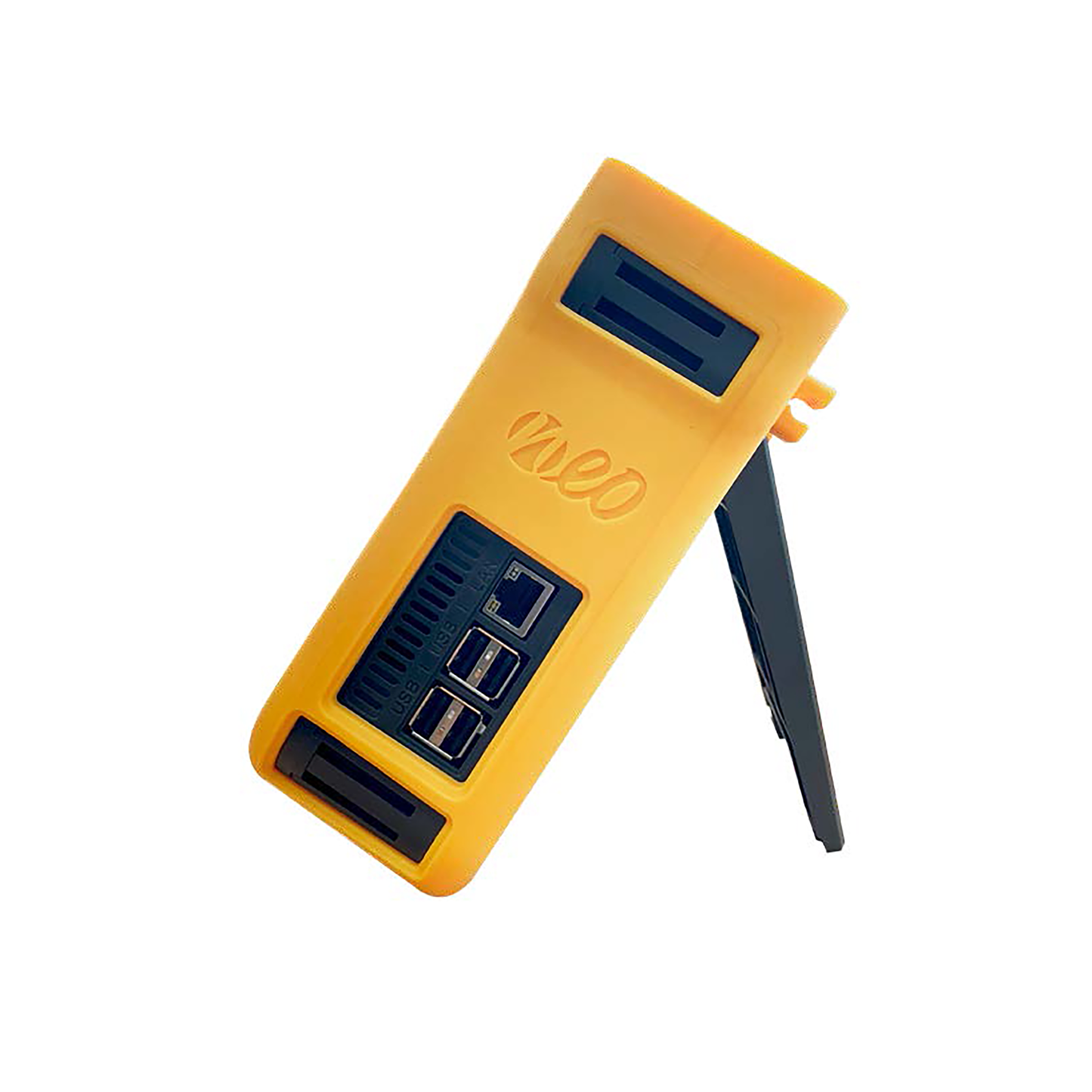

  • 2 x USB 3.0, 1x Ethernet, Wi-Fi, Bluetooth, GPS
  • Power supply : +9~+30VDC

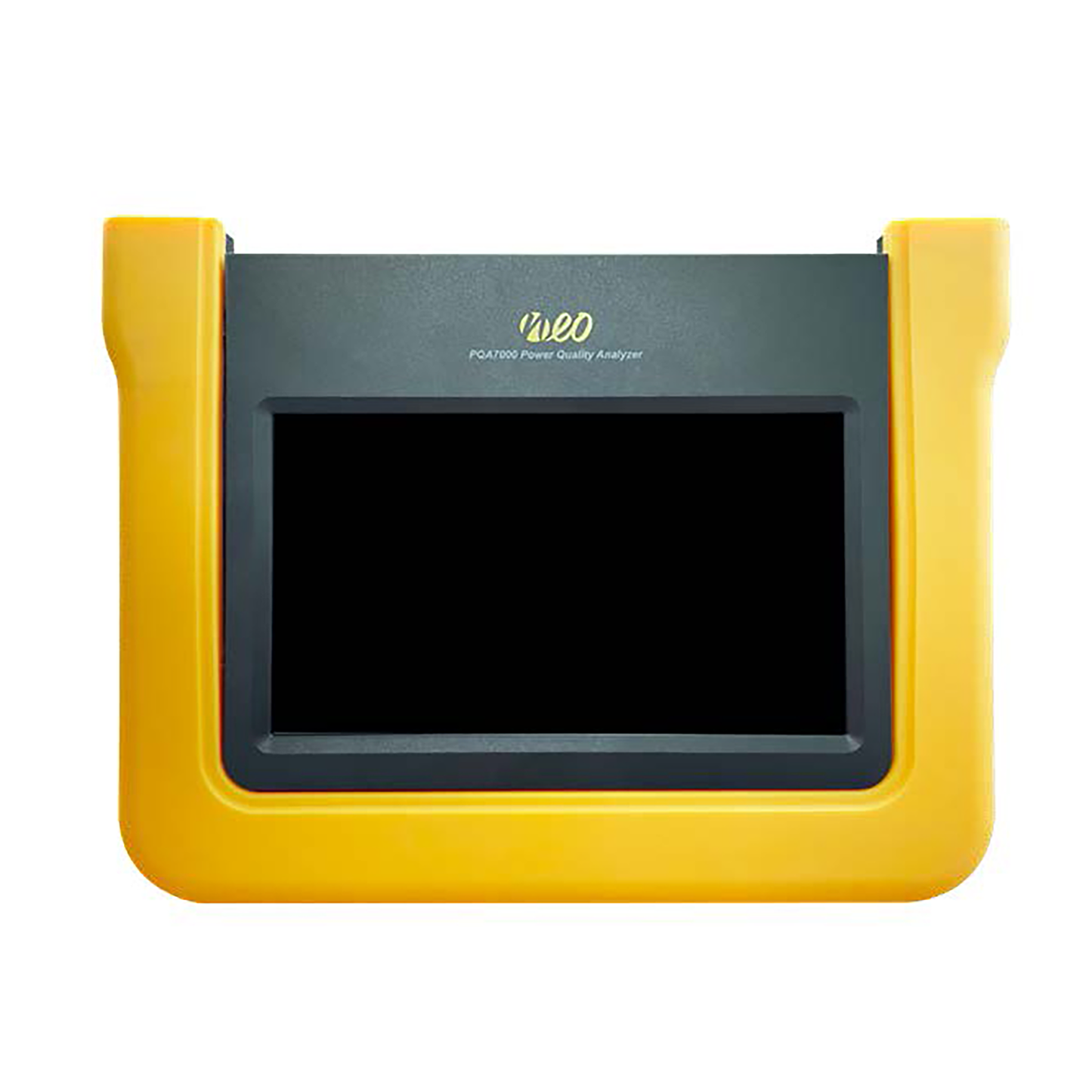

  • 7 inch Multi-touch TFT LCD - Sunlight Readable
  • 6 Hour Li-ion Battery 80Wh
  • Intel® Quad Core processor, 4GB RAM
  • Microsoft® Windows® 10 64-bit operating system
  • 256GB SSD (Expandable, any external HHD)
  • Exclusive Distributor
  • Technical Support
  • Secure Checkout
View full details

Beyond the Standards

Power Quality Class A++ Exceeds All Standards with 0.05% Accuracy

Suitable for all power quality applications, future-proof with 24-bit high resolution, and 48 kHz Sampling Rate.

AEMO Frequency Control Ancillary Services (FCAS) Compliant for Monitoring & Reporting

PQA 7000 instrument meets all AEMO FCAS requirements for Very Fast FCAS, Fast FCAS, Slow FCAS, Delayed FCAS, and Regulation FCAS

AEMO GPS Compliance Assessment and R2 Model Validation

Suitable for Generator Performance Standard & R2 Testing

Suitable for All Applications

  1. Power Grid Monitoring & Ancillary Services
  2. PMU and WAMs
  3. Renewables: Wind, Solar, Hydro, Combined Heat & Power (CHP), Battery Energy Storage System (BESS)
  4. EV Charging Stations
  5. Transformers, Motor, Generators, GPS & R2 Testing
  6. Conventional Power Plants
  7. Railway
  8. Aircraft & Marine
  9. Smart Grid & Energy Management
  10. Equipment Testing
  11. and More..

The NEO Workflow

Truly Intuitive Software

1. Easy Setup

The Measurement Software has a clear structure that
shows colour coded schematics with explanations, with large display scaling, buttons, and icons for instrument setup using the built-in 7 inch Multi-Touch Screen. Set up for 3 phase or single phase measurements.

VALIDATE CONFIGURATION SETTINGS & MEASUREMENTS

2. Measure

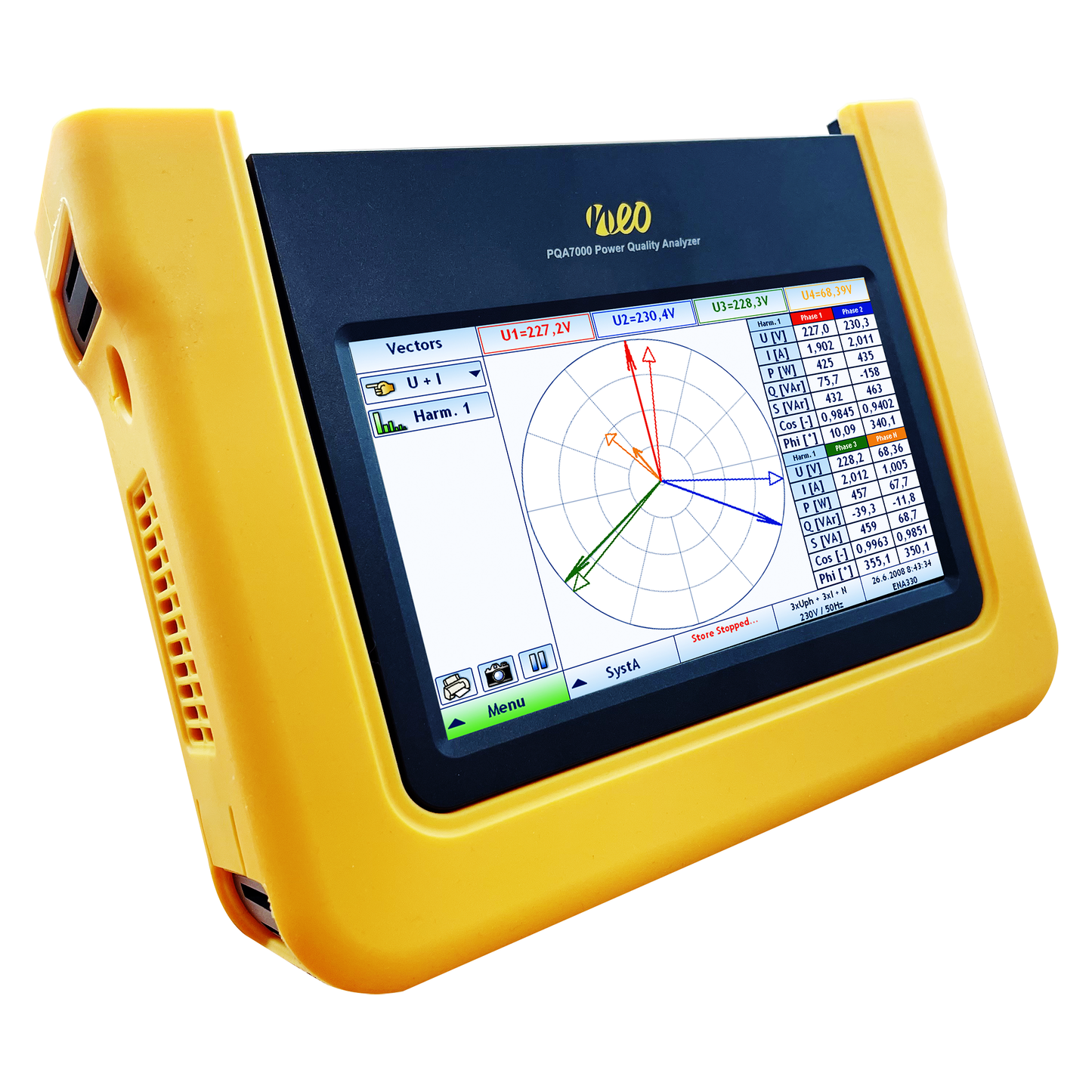

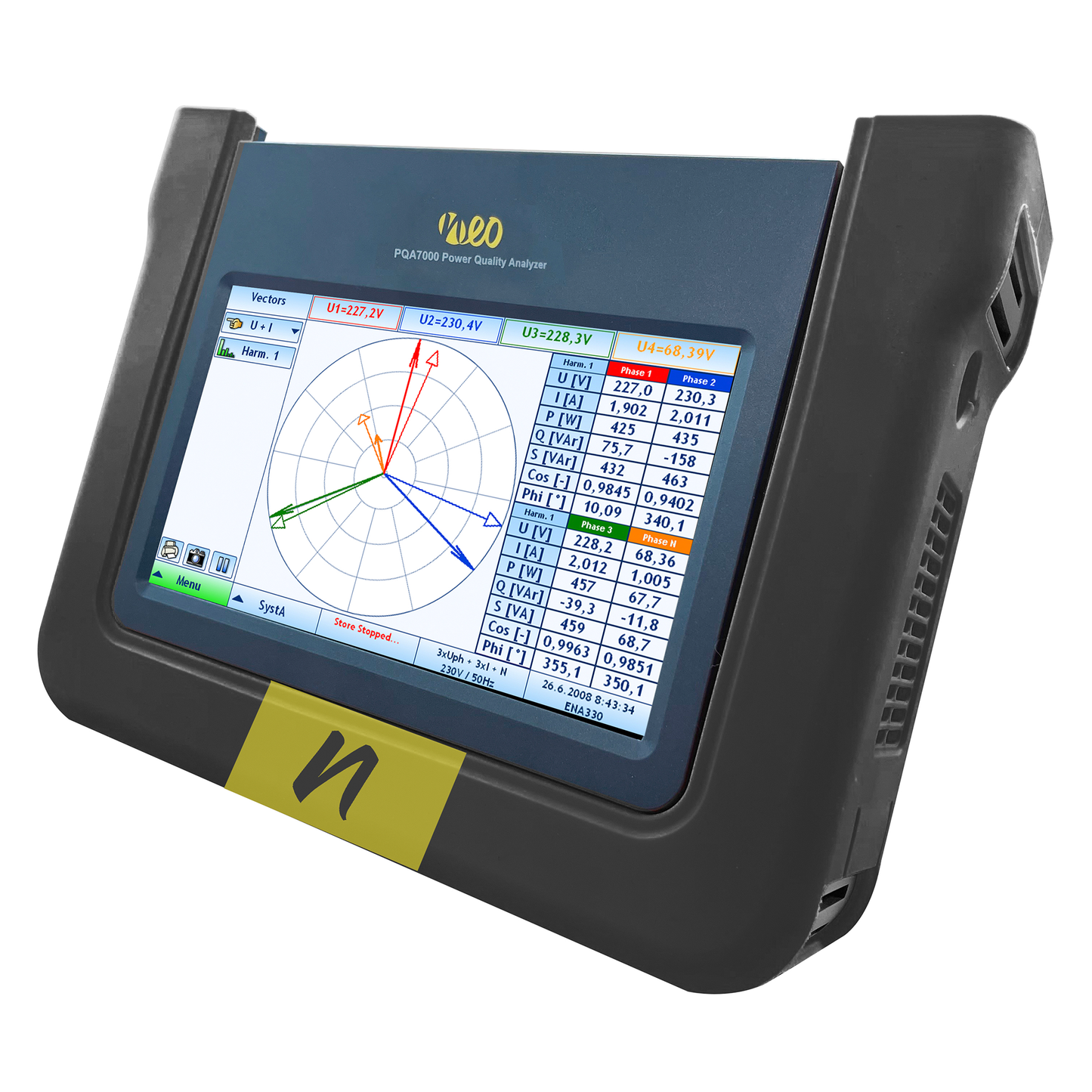

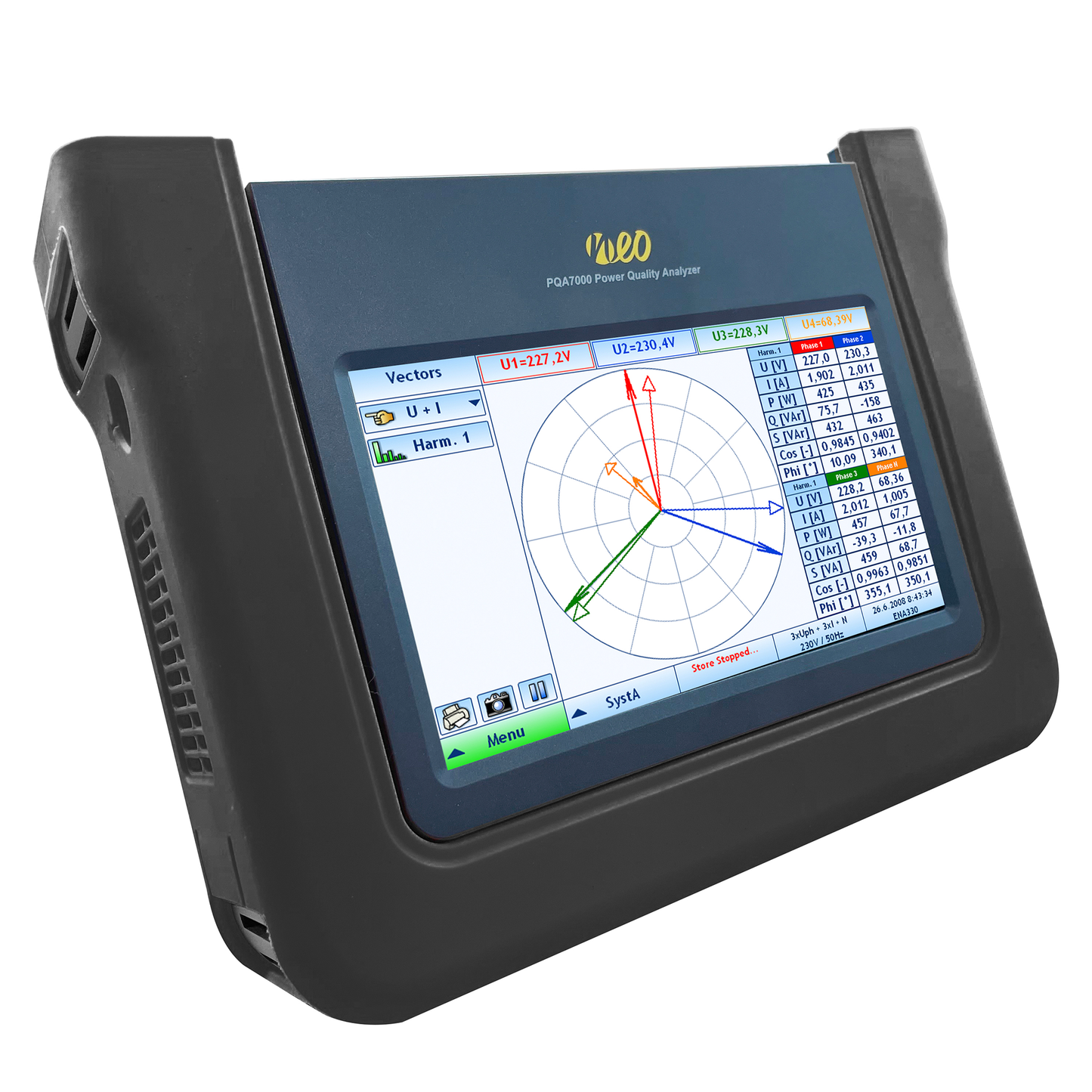

During measurements you can define widgets such as Scopes, Vector Scopes, Harmonic FFTs, Tables, Recorders etc. From this information, you can verify configuration settings such as phase order, current clamp polarity, or monitor live measurements.

Easy Remote Connection

  • AnyDesk
  • Teamviewer
  • Microsoft Remote Desktop

ADVANCED ANALYSIS SOFTWARE

3. Analyze

With the included NEO Report Software, you can perform sophisticated functions such as analyze PQ Data using Continuous Waveforms, Phasors, Events, Transients, Disturbances, Harmonic Analysis with FFT up to 20 kHz, Alarms, and more...

PROFESSIONAL REPORTS & CUSTOM TEMPLATES

4. Report & Export

The instrument can automatically generate

  • Standardized reports from IEEE, IEC, EN etc.
  • User customizable report templates
  • Professional documentation

Customize the Reports

  • Company Logos
  • Location of Recording with GPS Data
  • Add comments

Save & Export

  • PDF Reports are saved on device using built-in storage.
  • Share reports directly via E-mail
  • Export to Any Cloud Service such as Microsoft One Drive
  • Export RAW data into CSV, XLS, Comtrade, PQDiff, and more.

FLEXABLE WORKFLOW

5. Install User Applications

The instrument uses Microsoft Windows 10. This flexibility means that you can process the raw data the way you want for your specific needs.

Install Any Windows Application

  • MATLAB
  • Microsoft 365 applications such as Word or Excel
  • Remote Desktop Apps
  • and many more...

Use the Data for

  • Data Visualization
  • Data Analytics
  • Artificial Intelligence (AI)
  • Machine Learning-based Applications

Sensor Integration

All current sensors offered by NEO Messtechnik are industry proven for different applications. We use and improve on the best available sensors in the market.

Frequency Dependent Calibration
The NEO sensor integration calibrates each sensor over a wide frequency bandwidth and corrects frequency dependent phase shift and amplitude damping. This allows for high precision from DC to high-frequency measurements.

Measurement Range Dependent Calibration
In addition, the sensors will calibrated for each measurement range using multiple points.

Shop NEO Current Sensors

PQA 7000 Series Models

Use our configurator to easily build your custom kit by adding current clamps and accessories.

KIT CONFIGURATOR - NEO PQA 7000 SERIES

PQA 7000

7-inch Multi-Touch Display
24-bit ADC at 48 kHz
4x Voltage inputs
5x Current Inputs

PQA 7000-B

No Display
All features of PQA 7000

Need higher bandwidth?

Conventional PQ Analyzers, even if they are Class A certified, are not sufficient for modern measurement applications. NEO uses the best available components to ensure the highest safety category and also the highest accuracy. NEO instruments offer high bandwidth (up to 1 MHz) and correct the frequency dependent behavior of current & voltage sensors as well as integrated electronics to achieve the best possible measurement results.

View PQA 8000 Series

Complying Standards

Power Quality, Harmonics, Flicker

IEC61000-4-30 Ed. 3 Class A / IEC61000-4-7 / IEC61000-4-15 /
IEC62586-2 Ed. 2 / IEC62586-1

Public Grid, Railway, and Industry

EN50160 / EN50163 / IEC61000-2-2 / IEC61000-2-4 (Class 1; 2; 3) /
IEEE519 / IEEE 1159 / IEC61000-2-12 / NRS048

Wind Power, Renewables, Grid Codes, and PMU

IEC61400-21 / IEC61400-12 / FGW-TR3 / VDE N-4105 / VDE N-4100 /
VDE N-4110 / D-A-CH-CZ / BDEW / ROCOF / IEEE C37.118-2005 / IEEE C37.118.1-2011 / IEEE C37.118.2-2011 / IEEE C37.118.1a-2014 / IEC/IEEE-60255-118-2018

Motors, Transformers, and Electrical Equipment

IEC60034 / IEC 60076-1 / IEC61000-3-2 / IEC61000-3-3 / IEC61000-3-11 / IEC61000-3-12
