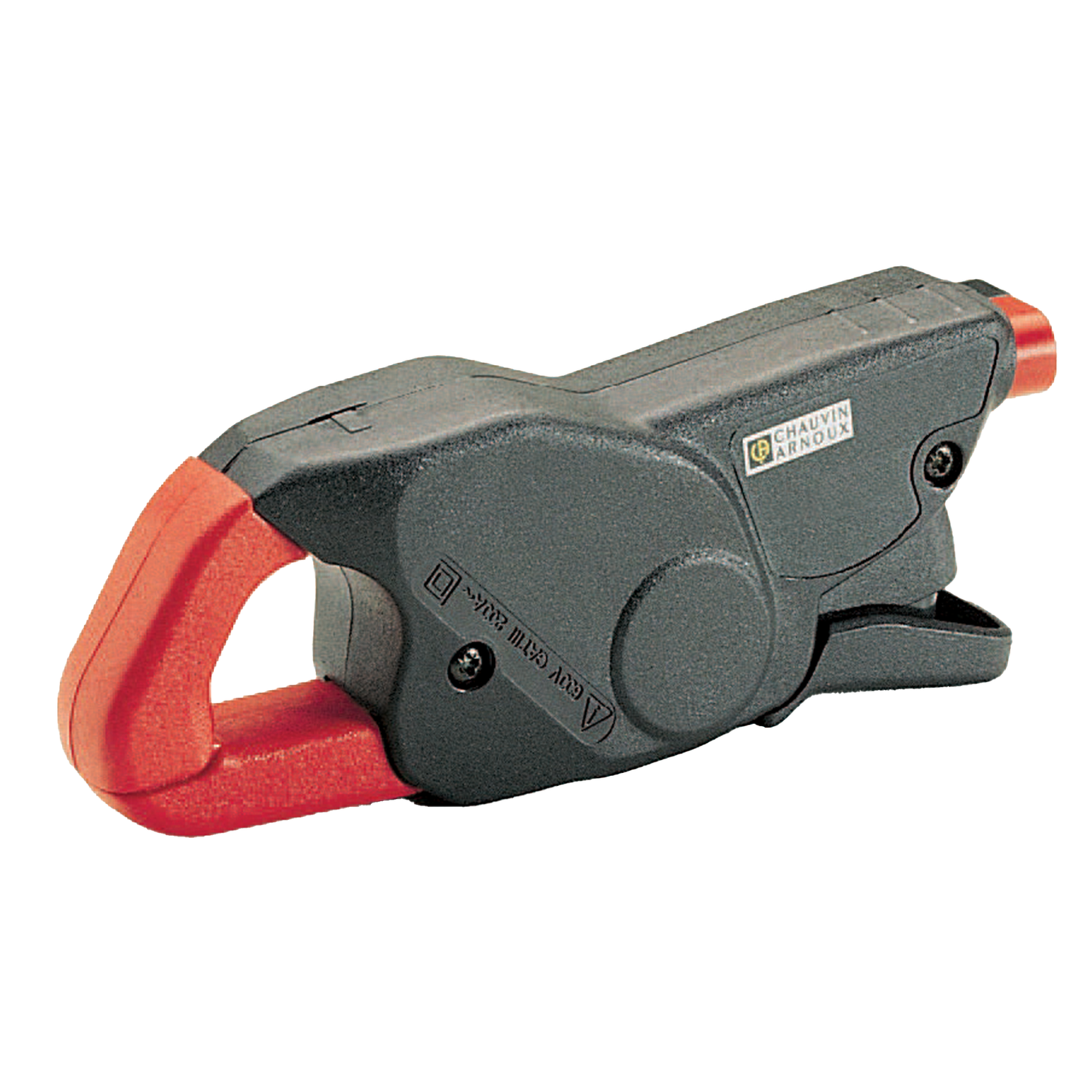

NEO 200A AC Current Clamp

Range: 200 A
Bandwidth: 10 kHz
Accuracy: 100 – 240 A: ± 1% of reading (with NEO calibration typ. ≤ 0.8 %)
10 – 100 A : ± 2,5% of reading (with NEO calibration typ. ≤ 1 %)
0,5 – 10 A: ± 3,5% of reading (with NEO calibration typ. ≤ 2 %)
Phase: 100 – 240 A: ≤ 2,5° (with NEO calibration typ. ≤ 1.5°)
10 – 100 A : ≤ 5° (with NEO calibration typ. ≤ 3°)
0,5 – 10 A: not specified
Sensitivity: 10 mV/A

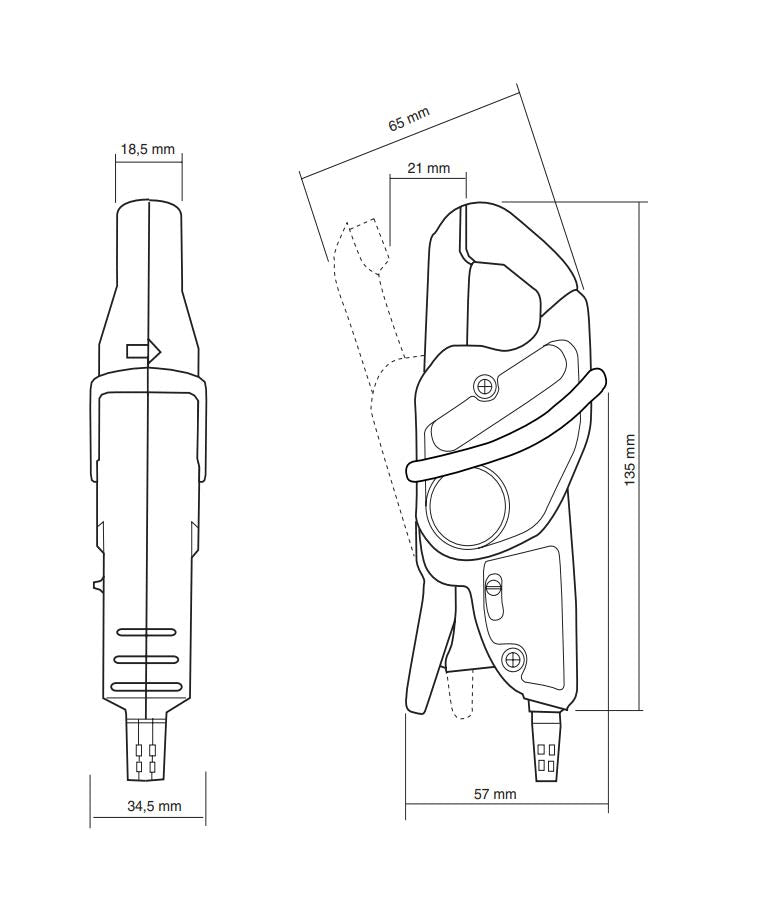

Dimensions: 135 x 51 x 30 mm (Clamp Opening d = 22mm)
