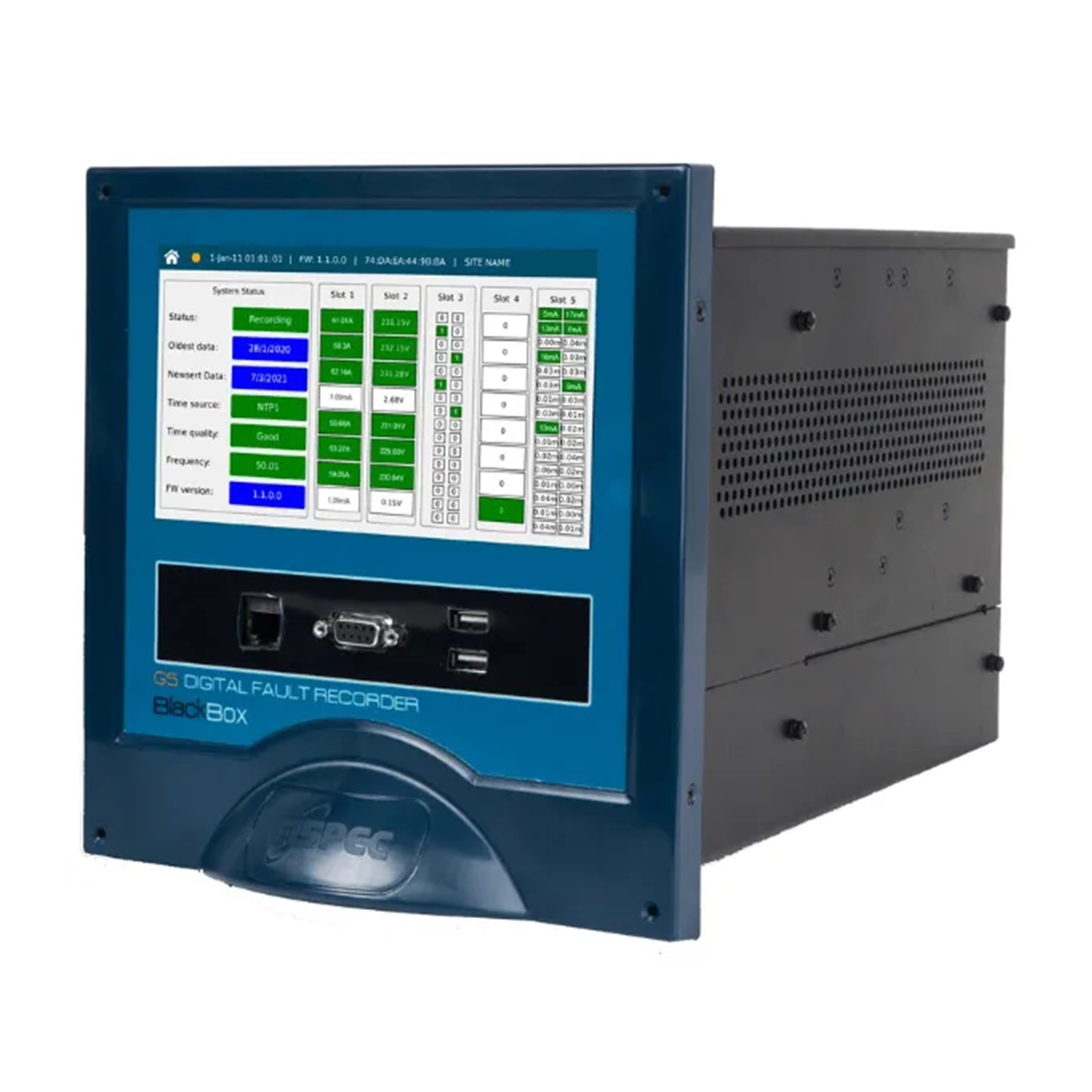

ELSPEC G5DFR PMU is a Multi-Functional Recorder with Digital Fault Recorder, Phasor Measurement Unit, and Power Quality Analyzer, that records at 1024 samples cycle for both voltage and current. The G5PMU has a TVE of just 0.1% and is IEC/IEEE 60255-118-1 and IEEE C37.118-2011 Certified. The ELSPEC G5 DFR PMU features the patented PQZIP algorithm for continuous waveform recording. By leveraging this technology found in G5DFR PMU, G4430, G4500, and PureBB, AI and Machine Learning methods for power quality insights were developed and published in IEEE ACCESS Journal Paper using Real-Field Data from the Australian Power Network.
The authors would like to thank Supreme Technology & Energy Solutions Australia Pty Ltd., the distributors for ELSPEC Ltd. products, who provided the power quality field data recorded with ELSPEC G5PMU Phasor Measurement Unit, G5DFR Multi-Functional Digital Fault Recorder, G4430 Blackbox, G4500 Blackbox, and Pure BlackBox (Pure-BB) Power Quality Analyzers with PQSCADA Sapphire Power Management Software Enterprise Edition used in this research.
Join Us at the ELSPEC User Group Meeting 2024 in Dallas, Texas
We are excited to announce that we will be attending and presenting at the ELSPEC User Group Meeting 2024. One of the main keynote speakers is Manoj Angus, the Founder & CEO of SmartGRID Technologies & Power Quality Solutions, and CTO of Supreme Technology & Energy Solutions Australia. We have been an ELSPEC distributor in Australia for over 15 years and are excited to share our insights and expertise on Elspec products and solutions with people from across the globe.
See the full program on ELSPEC's official website here.
Abstract

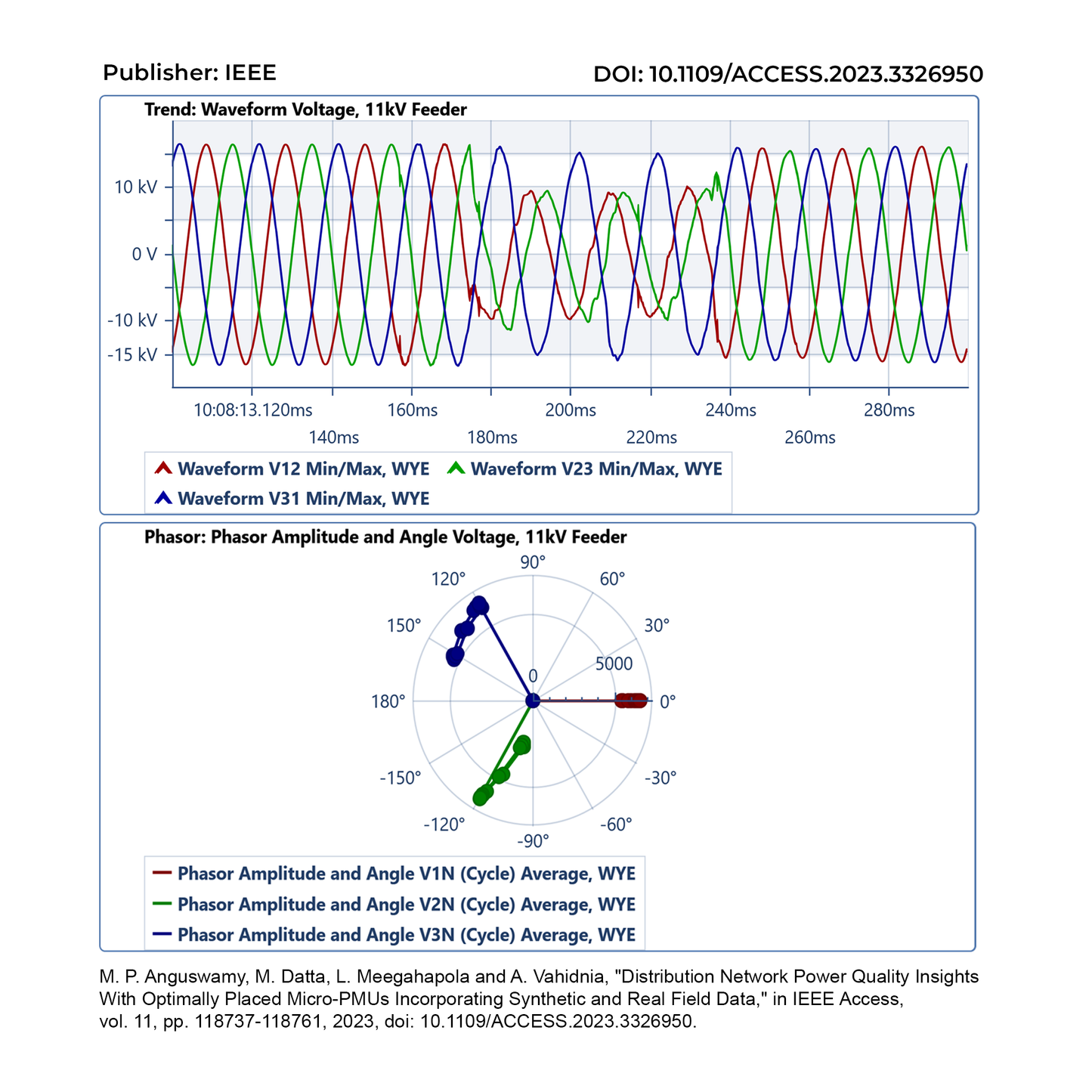

Widespread deployments of optimally placed real-time power quality (PQ) monitoring tools such as distribution level micro-phasor measurement units (D-PMUs or µPMU), digital fault recorders, and
PQ analyzers are expected to play a critical role in improving the stability and reliability of the smart grid. In this paper, an improved PQ disturbance (PQD) classification method using discrete wavelet transform (DWT) with a cubic multi-class support vector machine (CMSVM) classifier is proposed, which incorporates a decade’s worth of high-quality continuous waveform PQ data from the Australian power network. This research also introduces misclassification cost (MC) and cost-sensitive classification theory into the area of PQD classifiers to build improved and more robust network models for the future.
The method is evaluated using four case studies of synthetic and real-world PQD field data combinations and five application case studies using optimally placed µPMUs. The results indicate similar classification performance for standard PQDs than previous literature, alongside improved MC for complex PQD classes. Comparative analysis with previous literature highlights the importance of using high-quality real PQD field data to improve the fidelity of classifiers to provide better PQ insights as more complex components are added to the distribution network.
Acknowledgements
The authors gratefully acknowledge Supreme Technology & Energy Solutions Australia Pty Ltd, the distributors for ELSPEC Ltd products in Australia, who provided the power quality field data recorded with ELSPEC G5PMU Phasor Measurement Unit, G5DFR Multi-Functional Digital Fault Recorder, G4430 Blackbox, G4500 Blackbox, and Pure BlackBox (Pure-BB) Power Quality Analyzers with PQSCADA Sapphire Power Management Software Enterprise Edition used in this research.
Specifications & Downloads
To download this IEEE ACCESS Research Paper click Request More Information at the top of this page.
To learn more about ELSPEC Products used in this research such as the G5DFR, G5PMU, G4430, G4500, and PureBB, see the Specifications and Downloads Below.
General | ||||
---|---|---|---|---|
SKU |
G5B-XXX-XXX
|
SPG-4430-0090
|
SPG-4500-0090
|
SPG-531A-0091
|
Brand |
ELSPEC
|
ELSPEC
|
ELSPEC
|
ELSPEC
|
Processor |
Custom
|
Custom
|
Custom
|
Custom
|
Operating System |
Custom: Web Interface
|
Custom: Web Interface
|
Custom: Web Interface
|
Custom: Use Free Sapphire Mobile App for iPhone and Android (Extension Module with Wi-Fi dongle required)
|
Special Applications | ||||
EV Charging Stations |
—
|
|
|
|
AEMO FCAS Frequency Control Ancillary Services (FCAS)
|
|
|
|
|
AEMO GPS & R2 Compliance |
|
|
|
|
Supraharmonics 150 kHz |
—
|
|
|
|
Supraharmonics 500 kHz |
—
|
|
|
|
Applications |
General Power Quality Applications, Industrial Commercial, Utilities Customer, and AEMO FCAS
|
General Power Quality Applications, Industrial Commercial, and Utilities Customer
|
General Power Quality Applications, Utilities Customer, and Industrial Commercial
|
General Power Quality Applications, Industrial Commercial, and Utilities Customer
|
Data Acquisition | ||||
ADC Type |
—
|
Dual Range
|
Dual Range
|
Dual Range
|
ADC Resolution |
24-bit
|
16-bit
|
16-bit
|
16-bit
|
Voltage Sample Rate per Second |
51,200
|
51,200
|
51,200
|
12,800
|
Sampling Rate Voltage per Cycle |
1024 sample/cycle
|
1024 samples/cycle
|
1024 samples/cycle
|
256 samples/cycle
|
Sampling Rate Current per Cycle |
1024 sample/cycle
|
256 samples/cycle
|
256 samples/cycle
|
256 samples/cycle
|
Technology |
PQZIP Patented Continuous Waveform Recording Compression and Waveform Reconstruction
|
PQZIP Patented Continuous Waveform Recording Compression and Waveform Reconstruction
|
PQZIP Patented Continuous Waveform Recording Compression and Waveform Reconstruction
|
PQZIP Patented Continuous Waveform Recording Compression, Waveform Reconstruction, Plug-and-Play, Threshold-Free, and Configuration-Free
|
AEMO Frequency Control Ancillary Services (FCAS) | ||||
Very Fast FCAS Compliant |
|
|
|
|
Sampling rate of Local Frequency Measurements Calculation Rate
|
50ms
|
—
|
—
|
—
|
Sampling rate of Generation Amount and Load Amount measurements Calculation Rate
|
50ms
|
—
|
—
|
—
|
Intrinsic Frequency Uncertainty Local Frequency Measurement Range
|
≤0.01 Hz
|
0.01 Hz
|
0.01 Hz
|
0.01 Hz
|
Frequency Resolution Local Frequency Measurement Range
|
≤0.0025 Hz
|
0.01 Hz
|
0.01 Hz
|
0.01 Hz
|
Recording Period for Power & System Frequency Measurements |
Adjustable Trigger: ≥5 s before FDT and ≥60 s after it
|
—
|
—
|
—
|
Voltage Inputs | ||||
Number of Inputs |
4, 8, 12, and 16
|
4
|
4
|
4
|
Accuracy |
0.1 %
|
0.1 %
|
0.1 %
|
0.1 %
|
Range |
Depends on Analog Card Type
|
1 kV (Nominal) with 8 kV (Peak)
|
1 kV (Nominal) with 8 kV (Peak)
|
110-690 VAC with 1.5 kV (Peak)
|
Impedance |
—
|
3 MΩ
|
3 MΩ
|
10 MΩ
|
Current Inputs | ||||
Number of Inputs |
4, 8, 12, and 16
|
5
|
5
|
4
|
Accuracy |
0.1 %
|
0.1 %
|
0.1 %
|
0.1 %
|
Type |
CT, Hall Effect, and Shunt
|
Direct
|
Current Clamps
|
Current Clamps
|
Instrument Clamp Range |
—
|
1 A and 5 A
|
Range from 0V to 10V Peak from Voltage Output CTs
|
Range from 0V to 10V Peak from Voltage Output CTs
|
Automatic Sensor Detection |
—
|
|
|
|
Functionality | ||||
Power Quality Analyzer |
|
|
|
|
Digital Fault Recorder |
|
|
|
|
Phasor Measurement Unit (PMU) |
|
|
|
|
PMU | ||||
Total Vector Error (TVE) |
0.1 %
|
—
|
—
|
—
|
Max Reporting Rate RR
|
200
|
—
|
—
|
—
|
GPS Time Stamp Accuracy |
0.5 μs
|
—
|
—
|
—
|
Storage | ||||
Capacity |
—
|
16 GB
|
32 GB
|
4 GB as Standard and Upgradable to 32 GB (approved cards only)
|
Type |
—
|
CF Card
|
CF Card
|
MicroSD Card
|
Expandable |
Yes, USB Disk
|
No
|
No
|
Yes, Up to 32 GB and Hot Swappable
|
Display | ||||
Display |
|
|
|
|
Type |
Built in 7” 1MP LCD
|
—
|
—
|
—
|
Interfaces | ||||
Digital Input & Output DIO
|
|
|
|
—
|
CAN |
—
|
|
|
—
|
RS485 |
—
|
—
|
|
—
|
WiFi |
—
|
|
|
|
Bluetooth |
—
|
|
|
|
Ethernet |
|
|
|
|
HDMI |
—
|
|
|
|
GPS |
|
|
|
|
GPS Type |
External (Optional)
|
External (Optional)
|
External (Optional)
|
External (Optional)
|
GSM LTE |
—
|
|
|
|
GSM LTE Type |
—
|
No
|
External Possible through USB
|
—
|
MODBUS |
|
|
|
|
USB |
|
|
|
|
USB Type |
4 x USB Ports
|
USB 2.0
|
USB 2.0
|
USB 3.0
|
Time Synchronization | ||||
GPS Accuracy |
0.5 μs
|
200 μs
|
200 μs
|
200 μs
|
IRIG-B Accuracy |
0.5 μs
|
200 μs
|
200 μs
|
—
|
NTP |
100 μs
|
100 μs
|
100 μs
|
100 μs
|
Battery | ||||
Battery Operation |
—
|
|
|
|
Type & Capacity |
Supercapacitor
|
Supercapacitor
|
Built-In Li-ion Battery and Supercapacitor
|
Li-ion (with Optional Extension Module ONLY) and Supercapacitor
|
Operating Time |
25 seconds fault-ride-through
|
25 seconds fault-ride-through
|
2 Hours (Battery) and 30 seconds fault-ride-through (Supercapacitor)
|
5 Hours (with Optional Extension Module Battery) and 30 seconds fault-ride-through (Supercapacitor)
|
Power Supply | ||||
Main |
100-260 VAC and 100-300 VDC
|
100-260 VAC and 100-300 VDC
|
100-260 VAC and 100-300 VDC
|
100-240 VAC and 140-300 VDC
|
Aux PoE In Power over Ethernet
|
—
|
PoE In According to 802.3af
|
PoE In According to 802.3af
|
—
|
Aux DC |
24 VDC
|
48 VDC
|
48 VDC
|
5 VDC USB
|
Environmental | ||||
Operating Temp Range |
-40 °C to 85 °C
|
-20 °C to 70 °C
|
0 °C to 50 °C
|
-20 °C to 70 °C
|
Storage Temp Range |
-20 °C to 70 °C
|
-40 °C to 85 °C
|
-20 °C to 50 °C
|
-40 °C to 85 °C
|
IP Rating |
—
|
—
|
—
|
IP40
|
Standards & Certifications | ||||
Standards |
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, IEC62053-22/23 Class 0.2, EN55011 Group 1 Class A, EN61000-6-2, IEC60255EN60439-1 (clauses 7.9.1, 7.9.3, 7.9.4, 7.10.3, 7.10.4), FCC Part 15 Subpart B Class A, IEC61000-3-3, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, and IEC/IEEE-60255-118-1-2018
|
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, IEC62053-22/23 Class 0.2, EN55011 Group 1 Class A, EN61000-6-2, IEC60255EN60439-1 (clauses 7.9.1, 7.9.3, 7.9.4, 7.10.3, 7.10.4), FCC Part 15 Subpart B Class A, and IEC61000-3-3
|
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, EN61326, CFR47FCC, CISPR11 Group 1, FCC PART 15 Subpart B, EN61010-2, IEC61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, and IEC61000-4-11
|
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, IEC62053-22/23 Class 0.2, EN55011 Group 1 Class A, EN61000-6-2, IEC60255EN60439-1 (clauses 7.9.1, 7.9.3, 7.9.4, 7.10.3, 7.10.4), FCC Part 15 Subpart B Class A, and IEC61000-3-3
|
Physical | ||||
Weight |
3.5 kg
|
1.7 kg
|
3.7 kg
|
0.4 kg
|
Dimensions |
215 x 221 x 291 mm
|
175 x 232 x 138 mm
|
314 X 84 X 271 mm
|
180 x 115 x 60 mm
|
In the Box | ||||
Supplied |
G5DFR Multi-Functional Recorder, RJ45 3M Communication Cable , SFP Dongle – SFP Copper Transceiver 10/100/1000 Base, Power Supply Connector – Green, DC Power Supply Connector – 2-pin, Black, and USB with Elspec Software
|
G4430, USB Stick (with Manual, Device Search Software, PQSCADA Sapphire Express Software), and Terminal Connectors
|
G4500 Portable BlackBox Power Quality Analyzer, Power Cable, Elspec USB Stick with User Manual, Data Sheets, and PQSCADA Sapphire Software., Plug & Play Probe Interface with 5 AC Voltage Test Leads & Clips, Basic Components including 48VDC Terminal Block Connector, Multi IO Terminal Block Connector, Temperature Sensor Terminal Block Connector PT100 Type, Relay Terminal Block Connector, RS485/422 Communication Terminal Block Connector, Ethernet RJ45 LAN Communication Cable 2m, Carrying Trolley Case, and 1 x User Selectable Current Clamp
|
Pure BlackBox 3 Phase Power Quality Analyzer, User Customizable Lexan Voltage and Current Color Codes for Australia, UK & Europe, USA, China, and EU, Plug & Play Probe Interface - 5 x AC Voltage Test Leads & Clips, USB Type A to Type B 1.5m Cable, Power Cable, ELSPEC BlackBox Installation USB Stick with User Manual, Datasheet, PQSCADA Sapphire Software, ELSPEC Approved 4GB MicroSD Card, 2-pin Terminal Block Connector, and Blue Silicone Cover for Three-Phase PureBB
|
Optional Accessories | ||||
Optional |
—
|
ELSPEC Multi I/O Module Extension, ELSPEC External Display, and GPS (External Module)
|
GPS Global Positioning System with USB, Custom Clamp 3 x Flexible Current Probes, Custom Clamp 1 x Flexible Current Probes, DC Current Clamp, 1-6 A Mini Clamp, 100 A Mini Clamp, 300 Amp Flexible Current Clamp, 3000 Amp Flexible Current Clamp, Extension Cable for Elspec Clamps (600cm), Elspec Adaptor - Clamps to BNC (160cm), Elspec Adaptor - Clamps to Fixed Banana (60cm), Elspec Adaptor - Clamps to Separated Banana (160cm), and Protective Weatherproof Pelican Case (IP64)
|
Pure BlackBox Extension Module, 32GB MicroSD Card (Approved), Wi-Fi Dongle (requires Extension Module), GPS Mouse Receiver (Requires Extension Module), Custom Clamp 3- Flexible Current Probes, Custom Clamp 1- Flexible Current Probes, DC Current Clamp, 1-200A Mini Clamp, 1-60 Mini Clamp, Silicone cover, Silicone cover for Extension Module, and Pelican case for Pure BB
|
Downloads | ||||
Datasheet |
—
| |||
User Manual |
—
|
