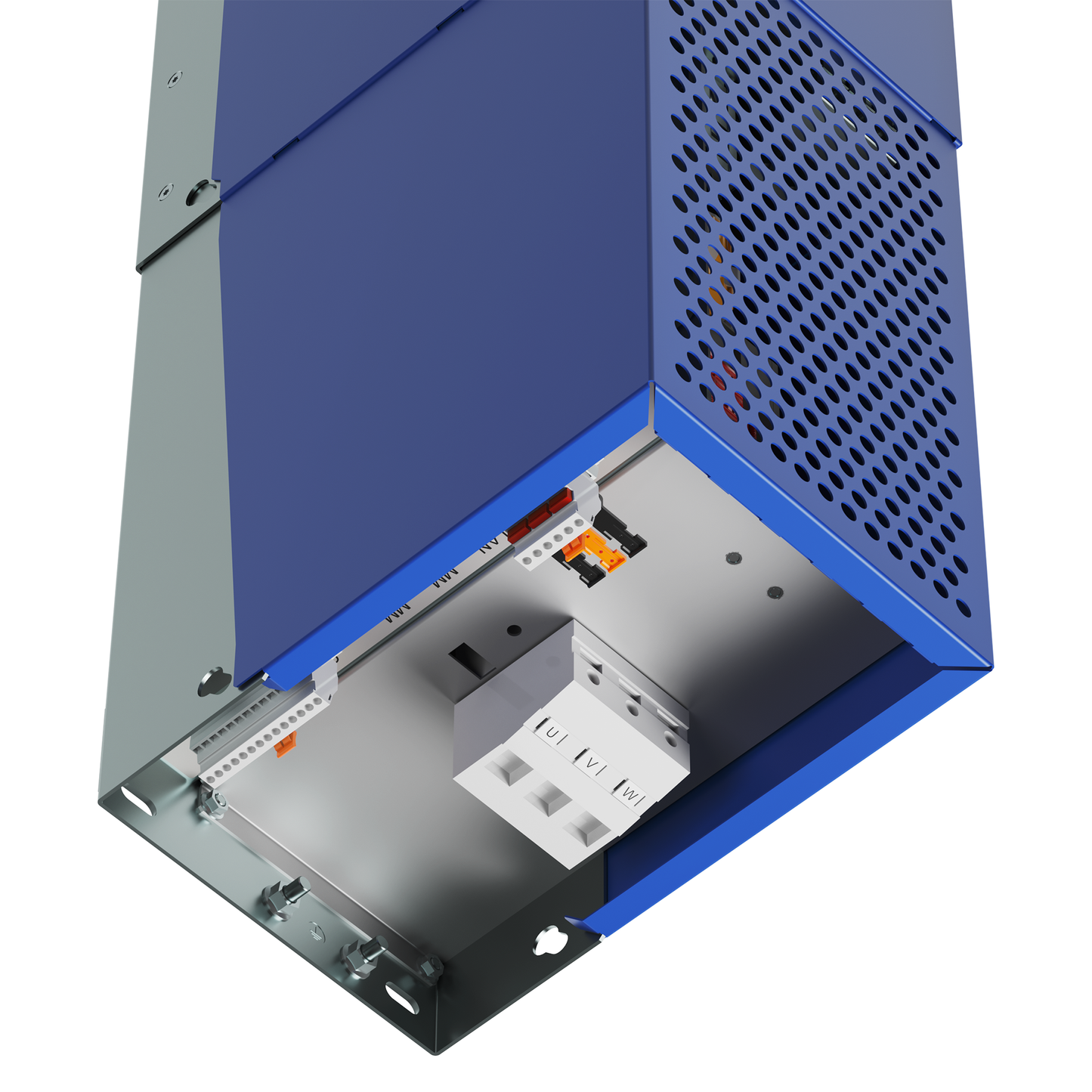

COMSYS ADF P100 Active Harmonic Filter

COMSYS ADF P100 Active Harmonic Filter

COMSYS ADF P100 is a dynamic active harmonic filter (AHF) with industry leading performance and efficiency in a cost-effective, compact form. It features fully customizable harmonic compensation, dynamic VAR reactive power compensation, load balancing and floating grid frequency support. Applications include data centers, variable speed drive (VSD) systems, UPS systems, industrial loads, medical equipment, EV charging stations, maritime vessels, offshore oil rigs offices and commercial buildings, fan and pump applications, and more. The web user interface (WUI) allows remote monitoring and control. Modbus TCP enables flexible functionality with integration to overlying control such as a PLC or SCADA systems. The ADF P100 has a nominal compensation current from 50 to 150 A RMS (three wire, 208-480V RMS Nominal), and 90 A RMS (three wire, 480-690V RMS Nominal). The ADF P100’s wall-mounted, modular, scalable design means that many ADF P100s can be combined in parallel for higher power. The COMSYS ADF series is the only solution in the world with sensorless control, meaning no CTs (current transformers) are required.

View full details
Download COMSYS ADF BrochureDownload ADF P100 Datasheet

ADF P100 Features

Each ADF P100 is customized to maximize performance in each application. The common features that all systems share include:

Application features

  • Dynamic VAR compensation
  • Harmonic elimination
  • Load balancing

Control features

  • Fully customizable harmonic compensation
  • Many ADF P100s can be combined for higher power
  • Insensitive to network conditions
  • Idle mode during low load (Standby)
  • Non-overloadable
  • Low response time
  • ADF Dashboard WUI (Web User Interface)
  • Floating grid frequency support

Physical features

  • Standard enclosure format system, according to IP20, EN50298, EN60529, EN50102
  • High short circuit capacity
  • Simple installation
  • Modular and scalable design

Voltages (3 Wire System)

  • Model 50/480 – 480 V (208 – 480 V)
  • Model 75/480 – 480 V (208 – 480 V)
  • Model 90/480 – 480 V (208 – 480 V)
  • Model 120/480 – 480 V (208 – 480 V)
  • Model 150/480 – 480 V (208 – 480 V)

  • Model 90/690 – 690 V (480 – 690 V)

Need 4-Wire System? See ADF P100N

Typical Applications

The ADF P100 is compatible with all three phase low voltage applications. It automatically eliminates harmonics and reactive displacement in a wide range of applications. Further, the ADF P100 can be tailored to unusual applications requiring special optimizations.

Some typical applications include:

  • Data centers
  • Drive systems
  • Pump applications
  • Offices and commercial buildings
  • Medical equipment
  • Industrial loads
  • UPS systems
  • EV Charging Stations
  • Fans
  • Maritime vessels
  • Offshore oil rigs
  • and more...

VIDEO: ADF Low Harmonic Solution | Overview

Technology that makes energy more efficient

Reduce Energy Losses, Improve Power Quality, and Meet Compliance

COMSYS ADF enables you to meet power quality regulations and reduce energy losses through harmonic compensation, load balancing, flicker compensation, and resonance elimination. The ONLY All-in-One Solution.

What to expect with ADF?

ADF Operating Principle - How it Works.

An ADF unit is basically a very advanced computer-controlled current generator with the ability to instantly produce any shape or form of compensation current.

A simplified diagram of the operating principle is shown in the figure. Each ADF unit is connected in parallel, in shunt, with the load that requires compensation.

  • The power flows of electrical currents between the load and the network are measured and analyzed [1] to determine if disturbances such as reactive displacement and /or harmonics are present.
  • If found, the ADF unit injects compensation current [2] that are the exact opposite of, for example, the harmonics and/or reactive displacement.
  • This is done in order to cancel out the load behavior [3].

NO CTs Required. The ONLY solution with Sensorless Control

When you need a retrofit solution or you have a complicated set-up, it can be very difficult to add the CTs (current transformers). But with Sensorless Control, we can compensate without it — so you can eliminate the CTs altogether. This gives you more flexibility when it comes to where and how to install the ADF unit and reduces the overall hassle of installation and compensation. In addition to this, you are also able to isolate sub-grids and compensate background distortion, which further improves the flexibility and adaptability of the ADF platform.

Sensorless Control is now available on all ADF products.

Remote Monitoring and Control of ADFs

The WUI (web user interface) is a web application requiring no additional software installation. It offers a convenient, easy-to-use service to enable you to monitor your ADF modules from any device – anywhere, anytime. Additionally, the WUI can be integrated into a larger system (i.e. with multiple generators, many loads, etc.), which you can then choose to run on a certain schedule or operation mode. And if your operation uses a PLC, the PLC can read out critical data from the ADF module automatically.
