Compare PQA, DFR, and PMU
Downloads | |||||
---|---|---|---|---|---|
Datasheet | |||||
User Manual |
—
| ||||
Technical Guide |
—
|
—
|
—
| ||
Accessories Manual |
—
|
—
|
—
| ||
General | |||||
SKU |
SPG-4430-0090
|
SPG-4500-0090
|
SPG-531A-0091
|

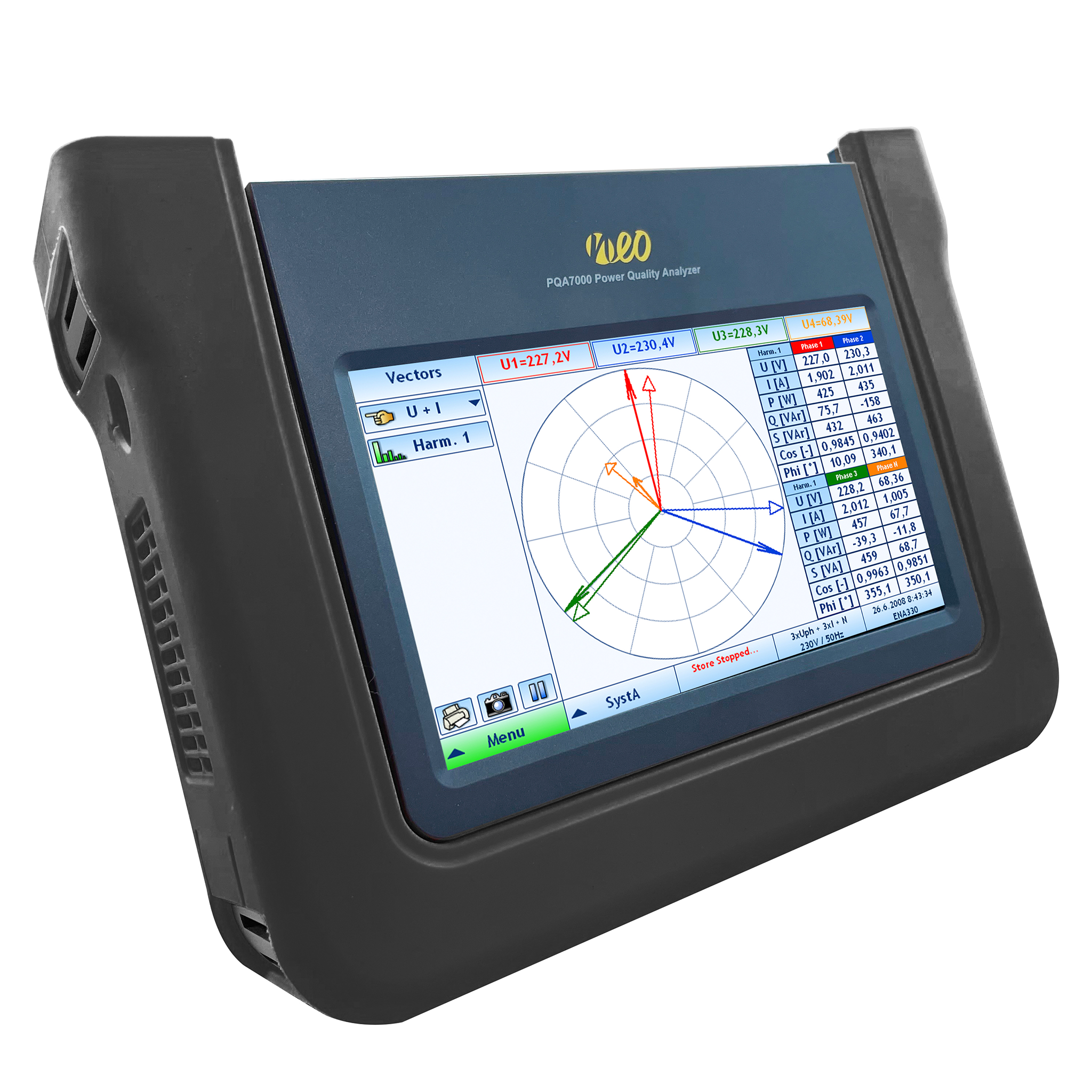

PQA7000
|

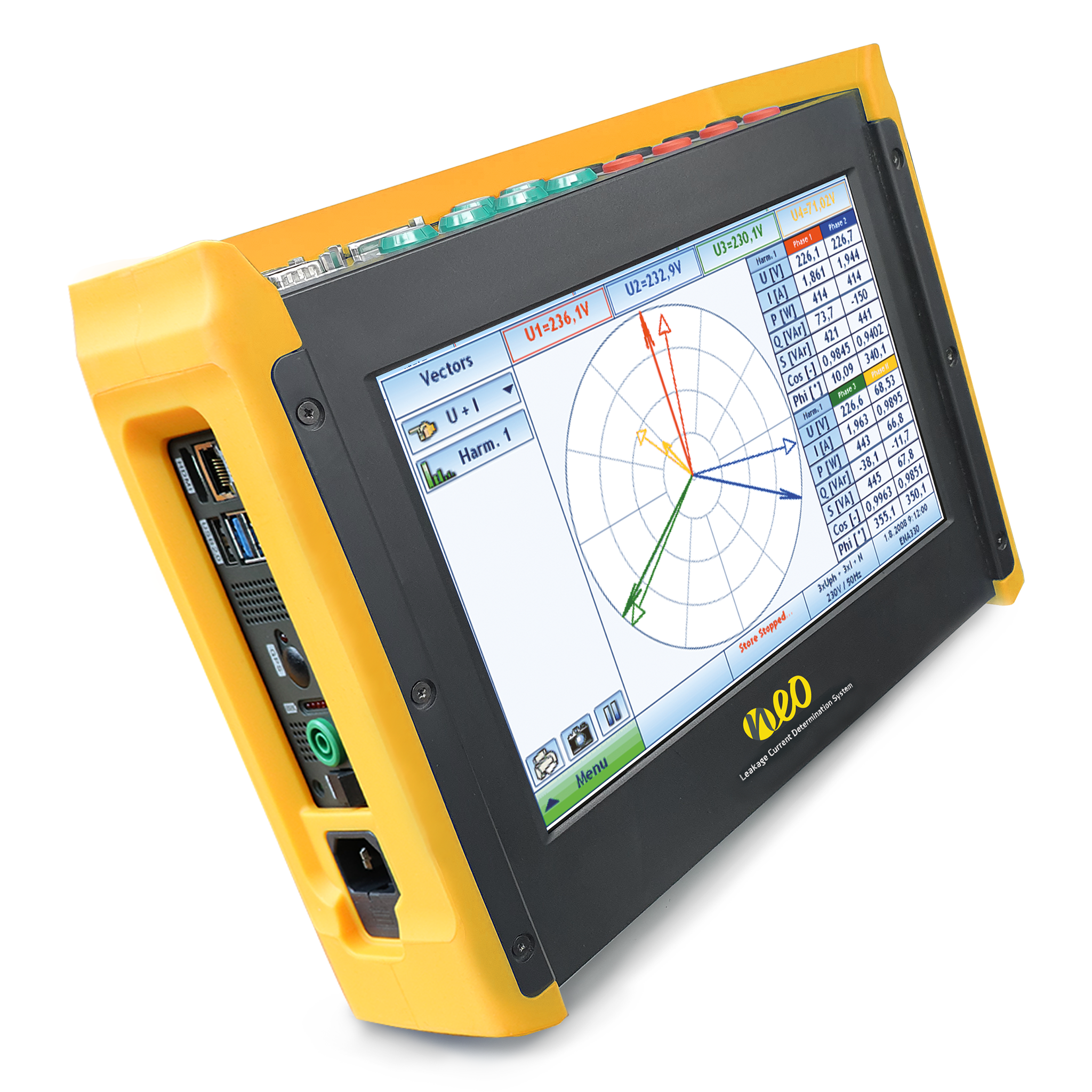

PQA8000H
|
Brand |
ELSPEC
|
ELSPEC
|
ELSPEC
|
NEO MESSTECHNIK
|
NEO MESSTECHNIK
|
Processor |
Custom
|
Custom
|
Custom
|
Intel® Quad Core Processor and 4GB RAM
|
Intel® Quad Core Processor and 8GB RAM
|
Operating System |
Custom: Web Interface
|
Custom: Web Interface
|
Custom: Use Free Sapphire Mobile App for iPhone and Android (Extension Module with Wi-Fi dongle required)
|
Microsoft® Windows® 10 64-bit (IOT)
|
Microsoft® Windows® 10 64-bit (IOT)
|
Special Applications | |||||
EV Charging Stations |
|
|
|
|
|
AEMO FCAS Frequency Control Ancillary Services (FCAS)
|
|
|
|
|
|
AEMO GPS & R2 Compliance |
|
|
|
|
|
Supraharmonics 150 kHz |
|
|
|
|
|
Supraharmonics 500 kHz |
|
|
|
|
|
Applications |
General Power Quality Applications, Industrial Commercial, and Utilities Customer
|
General Power Quality Applications, Utilities Customer, and Industrial Commercial
|
General Power Quality Applications, Industrial Commercial, and Utilities Customer
|
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, and Revenue Grade Energy Meter
|
AEMO FCAS, AEMO GPS R2 Compliance, EV Charging Stations, Supraharmonics, Grid Impedance, and Revenue Grade Energy Meter
|
Data Acquisition | |||||
ADC Type |
Dual Range
|
Dual Range
|
Dual Range
|
Sigma Delta
|
SAR (Successive Approximation Register)
|
ADC Resolution |
16-bit
|
16-bit
|
16-bit
|
24-bit
|
18-bit
|
ADC Filters |
—
|
—
|
—
|
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Analog, Digital, and Automatic Anti-Aliasing Filter
|
Voltage Sample Rate per Second |
51,200
|
51,200
|
46,080
|
48 kHz
|
1 MHz
|
Sampling Rate Voltage per Cycle |
1024 samples/cycle
|
1024 samples/cycle
|
256 samples/cycle
|
960 Samples/Cycle
|
20,000 Samples/Cycle
|
Sampling Rate Current per Cycle |
256 samples/cycle
|
256 samples/cycle
|
256 samples/cycle
|
960 Samples/Cycle
|
20,000 Samples/Cycle
|
Technology |
PQZIP Patented Continuous Waveform Recording Compression and Waveform Reconstruction
|
PQZIP Patented Continuous Waveform Recording Compression and Waveform Reconstruction
|
New PQZ Patented Continuous Waveform Recording Compression, Waveform Reconstruction, Plug-and-Play, Threshold-Free, and Configuration-Free
|
RAW Sampled Voltage & Current
|
RAW Sampled Voltage & Current
|
AEMO Frequency Control Ancillary Services (FCAS) | |||||
Very Fast FCAS Compliant |
|
|
|
|
|
Sampling rate of Local Frequency Measurements Calculation Rate
|
—
|
—
|
—
|
—
|
≤50ms
|
Sampling rate of Generation Amount and Load Amount measurements Calculation Rate
|
—
|
—
|
—
|
—
|
≤50ms
|
Intrinsic Frequency Uncertainty Local Frequency Measurement Range
|
0.01 Hz
|
0.01 Hz
|
0.01 Hz
|
—
|
≤0.01 Hz
|
Frequency Resolution Local Frequency Measurement Range
|
0.01 Hz
|
0.01 Hz
|
0.01 Hz
|
—
|
≤0.0025 Hz
|
Recording Period for Power & System Frequency Measurements |
—
|
—
|
—
|
—
|
Adjustable Trigger (Pre and Post)
|
Voltage Inputs | |||||
Number of Inputs |
4
|
4
|
4
|
4
|
4
|
Accuracy |
0.1 %
|
0.1 %
|
0.1 %
|
0.05 %
|
0.05 %
|
Range |
1 kV (Nominal) with 8 kV (Peak)
|
1 kV (Nominal) with 8 kV (Peak)
|
110-690 VAC with 1.5 kV (Peak)
|
1600 V / 800 V
|
1600 V / 800 V and 600V / 20V
|
Isolation |
—
|
—
|
—
|
6 kV
|
6 kV
|
Impedance |
3 MΩ
|
3 MΩ
|
10 MΩ
|
10 MΩ
|
10 MΩ
|
Safety |
—
|
—
|
—
|
CAT IV 600 V and CAT III 1000 V
|
CATIV 600 V and CAT III 1000 V
|
Current Inputs | |||||
Number of Inputs |
5
|
5
|
4
|
5
|
4, 6, and 8
|
Accuracy |
0.1 %
|
0.1 %
|
0.1 %
|
0.05 %
|
0.05 %
|
Type |
Direct
|
Current Clamps
|
Current Clamps
|
Current Clamp, Rogowski Coil, and Zero Flux
|
Current Clamp, Rogowski Coil, and Zero Flux
|
Current Sensor Supply |
—
|
—
|
—
|
± 15 V
|
± 15 V, ± 12 V, and ± 3.3 V
|
Instrument Clamp Range |
1 A and 5 A
|
Range from 0V to 10V Peak from Voltage Output CTs
|
Range from 0V to 10V Peak from Voltage Output CTs
|
2mV to 10V (15x Ranges)
|
1V, 2V, 5V, 10V, 2mV, 20mV, 200mV, and 2mV to 10V (15x Ranges)
|
Integrator Rogowski Range |
—
|
—
|
—
|
1 A to 300 kA
|
1 A to 300 kA
|
Impedance |
—
|
—
|
—
|
10 MΩ
|
10 MΩ
|
Additional Analog Inputs |
—
|
—
|
—
|
—
|
1 V, 2 V, 5 V, and 10 V
|
Automatic Sensor Detection |
|
|
|
|
|
Functionality | |||||
Power Quality Analyzer |
|
|
|
|
|
Digital Fault Recorder |
|
|
|
|
|
Phasor Measurement Unit (PMU) |
|
|
|
|
|
PMU | |||||
Total Vector Error (TVE) |
—
|
—
|
—
|
0.01 %
|
0.01 %
|
Angle Error |
—
|
—
|
—
|
0.003 °
|
0.003 °
|
Max Reporting Rate RR
|
—
|
—
|
—
|
50 FPS
|
50 FPS
|
GPS Time Stamp Accuracy |
—
|
—
|
—
|
0.1 μs
|
0.1 μs
|
Storage | |||||
Capacity |
16 GB
|
32 GB
|
4 GB as Standard and Upgradable to 32 GB (approved cards only)
|
256 GB
|
512 GB and 1 TB
|
Type |
CF Card
|
CF Card
|
MicroSD Card
|
32GB eMMC and 256GB SSD
|
SSD
|
Expandable |
No
|
No
|
Yes, Up to 32 GB and Hot Swappable
|
Yes (Any External HHD via USB)
|
Yes (Any External HHD via USB)
|
Display | |||||
Display |
|
|
|
|
|
Type |
—
|
—
|
—
|
7 inch Capacitive Multi-Touch TFT LCD Sunlight Readable
|
10.1 inch Capacitive Multi-Touch TFT LCD, Sunlight Readable / 800cd
|
Interfaces | |||||
Digital Input & Output DIO
|
|
|
—
|
|
|
CAN |
|
|
—
|
|
|
RS485 |
—
|
|
—
|
|
|
WiFi |
|
|
|
|
|
Bluetooth |
|
|
|
|
|
Ethernet |
|
|
|
|
|
HDMI |
|
|
|
|
|
GPS |
|
|
|
|
|
GPS Type |
External (Optional)
|
External (Optional)
|
External (Optional)
|
Internal and External (Optional)
|
Internal and External (Optional)
|
GSM LTE |
|
|
|
|
|
GSM LTE Type |
No
|
External Possible through USB
|
—
|
—
|
GSM LTE
|
MODBUS |
|
|
|
|
|
USB |
|
|
|
|
|
USB Type |
USB 2.0
|
USB 2.0
|
USB 3.0
|
USB 3.0
|
USB 3.0
|
Time Synchronization | |||||
GPS Accuracy |
200 μs
|
200 μs
|
200 μs
|
0.1 μs
|
0.1 μs
|
IRIG-B Accuracy |
200 μs
|
200 μs
|
—
|
—
|
—
|
NTP |
100 μs
|
100 μs
|
100 μs
|
—
|
—
|
Battery | |||||
Battery Operation |
|
|
|
|
|
Type & Capacity |
Supercapacitor
|
Built-In Li-ion Battery and Supercapacitor
|
Li-ion (with Optional Extension Module ONLY) and Supercapacitor
|
Li-Ion Battery 80Wh
|
Li-Ion Battery 90Wh
|
Operating Time |
25 seconds fault-ride-through
|
2 Hours (Battery) and 30 seconds fault-ride-through (Supercapacitor)
|
5 Hours (with Optional Extension Module Battery) and 30 seconds fault-ride-through (Supercapacitor)
|
6 Hours
|
4 Hours
|
Power Supply | |||||
Main |
100-260 VAC and 100-300 VDC
|
100-260 VAC and 100-300 VDC
|
100-240 VAC and 140-300 VDC
|
10-30 V DC
|
115V / 230V
|
Aux PoE In Power over Ethernet
|
PoE In According to 802.3af
|
PoE In According to 802.3af
|
—
|
—
|
—
|
Aux DC |
48 VDC
|
48 VDC
|
5 VDC USB
|
—
|
—
|
Environmental | |||||
Operating Temp Range |
-20 °C to 70 °C
|
0 °C to 50 °C
|
-20 °C to 70 °C
|
0 to 60°C
|
0 to 60°C
|
Storage Temp Range |
-40 °C to 85 °C
|
-20 °C to 50 °C
|
-40 °C to 85 °C
|
-20 to 80°C
|
-20 to 80°C
|
IP Rating |
—
|
—
|
IP40
|
IP2X
|
IP2X
|
Standards & Certifications | |||||
Standards |
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, IEC62053-22/23 Class 0.2, EN55011 Group 1 Class A, EN61000-6-2, IEC60255EN60439-1 (clauses 7.9.1, 7.9.3, 7.9.4, 7.10.3, 7.10.4), FCC Part 15 Subpart B Class A, and IEC61000-3-3
|
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, EN61326, CFR47FCC, CISPR11 Group 1, FCC PART 15 Subpart B, EN61010-2, IEC61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, and IEC61000-4-11
|
EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A, IEC62053-22/23 Class 0.2, EN55011 Group 1 Class A, EN61000-6-2, IEC60255EN60439-1 (clauses 7.9.1, 7.9.3, 7.9.4, 7.10.3, 7.10.4), FCC Part 15 Subpart B Class A, and IEC61000-3-3
|
Exceeds All Standards, EN50160, IEEE 519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
Exceeds All Standards, EN50160, IEEE 519, IEEE 1159, IEEE C37.118.1-2011, IEEE C37.118.2-2011, IEEE C37.118.1a-2014, IEC/IEEE-60255-118-1-2018, IEC61000-4-30 Ed. 3 Class A, IEC61000-4-7, IEC61000-4-15, IEC62586-2 Ed. 2, IEC62586-1, EN50163, IEC61000-2-2, IEC61000-2-4 (Class 1; 2; 3), IEC61000-2-12, NRS048, IEC61400-21, IEC61400-12, FGW-TR3, VDE N-4105, VDE N-4100, VDE N-4110, D-A-CH-CZ, BDEW, ROCOF, IEEE C37.118-2005, IEC60034, IEC 60076-1, IEC61000-3-2, IEC61000-3-3, IEC61000-3-11, and IEC61000-3-12
|
Physical | |||||
Weight |
1.7 kg
|
3.7 kg
|
0.4 kg
|
2.3 kg
|
4.0 kg
|
Dimensions |
175 x 232 x 138 mm
|
314 X 84 X 271 mm
|
180 x 115 x 60 mm
|
250 x 190 x 80 mm
|
298 x 225 x 95 mm
|
In the Box | |||||
Supplied |
G4430, USB Stick (with Manual, Device Search Software, PQSCADA Sapphire Express Software), and Terminal Connectors
|
G4500 Portable BlackBox Power Quality Analyzer, Power Cable, Elspec USB Stick with User Manual, Data Sheets, and PQSCADA Sapphire Software., Plug & Play Probe Interface with 5 AC Voltage Test Leads & Clips, Basic Components including 48VDC Terminal Block Connector, Multi IO Terminal Block Connector, Temperature Sensor Terminal Block Connector PT100 Type, Relay Terminal Block Connector, RS485/422 Communication Terminal Block Connector, Ethernet RJ45 LAN Communication Cable 2m, and Carrying Trolley Case
|
Pure BlackBox 3 Phase Power Quality Analyzer, User Customizable Lexan Voltage and Current Color Codes for Australia, UK & Europe, USA, China, and EU, Plug & Play Probe Interface - 5 x AC Voltage Test Leads & Clips, USB Type A to Type B 1.5m Cable, Power Cable, ELSPEC BlackBox Installation USB Stick with User Manual, Datasheet, PQSCADA Sapphire Software, ELSPEC Approved 4GB MicroSD Card, 2-pin Terminal Block Connector, and Blue Silicone Cover for Three-Phase PureBB
|
PQA7000, Transport Bag, and Keyboard included
|
PQA8000 Series, Transport Bag, and Keyboard included
|
Optional Accessories | |||||
Optional |
ELSPEC Multi I/O Module Extension, ELSPEC External Display, and GPS (External Module)
|
GPS Global Positioning System with USB, Custom Clamp 3 x Flexible Current Probes, Custom Clamp 1 x Flexible Current Probes, DC Current Clamp, 1-6 A Mini Clamp, 100 A Mini Clamp, 300 Amp Flexible Current Clamp, 3000 Amp Flexible Current Clamp, Extension Cable for Elspec Clamps (600cm), Elspec Adaptor - Clamps to BNC (160cm), Elspec Adaptor - Clamps to Fixed Banana (60cm), Elspec Adaptor - Clamps to Separated Banana (160cm), and Protective Weatherproof Pelican Case (IP64)
|
Pure BlackBox Extension Module, 32GB MicroSD Card (Approved), Wi-Fi Dongle (requires Extension Module), GPS Mouse Receiver (Requires Extension Module), Custom Clamp 3- Flexible Current Probes, Custom Clamp 1- Flexible Current Probes, DC Current Clamp, 1-200A Mini Clamp, 1-60 Mini Clamp, Silicone cover, Silicone cover for Extension Module, and Pelican case for Pure BB
|
Current Sensors, Integrated GPS receiver and GPS mouse, Custom Color Code for Voltage and Current Inputs, Ruggedized Pelican-Case (IP67) with foamed insert adapted for the measurement instrument and pullout handle, Test Leads, and Other sensors available on request
|
Current Sensors, Integrated GPS receiver and GPS mouse, Integrated GSM Modem for telecommunication, DC Power supply input +9V …. +36V DC, Custom Color Code for Voltage and Current Inputs, Ruggedized Pelican-Case (IP67) with foamed insert adapted for the measurement instrument and pullout handle, Dust Cover, Temperature Sensor Thermocouple Type K on DSUB15 input, Radiation Pyranometer Sensor on DSUB15 input, Test Leads, and Other sensors available on request
|
